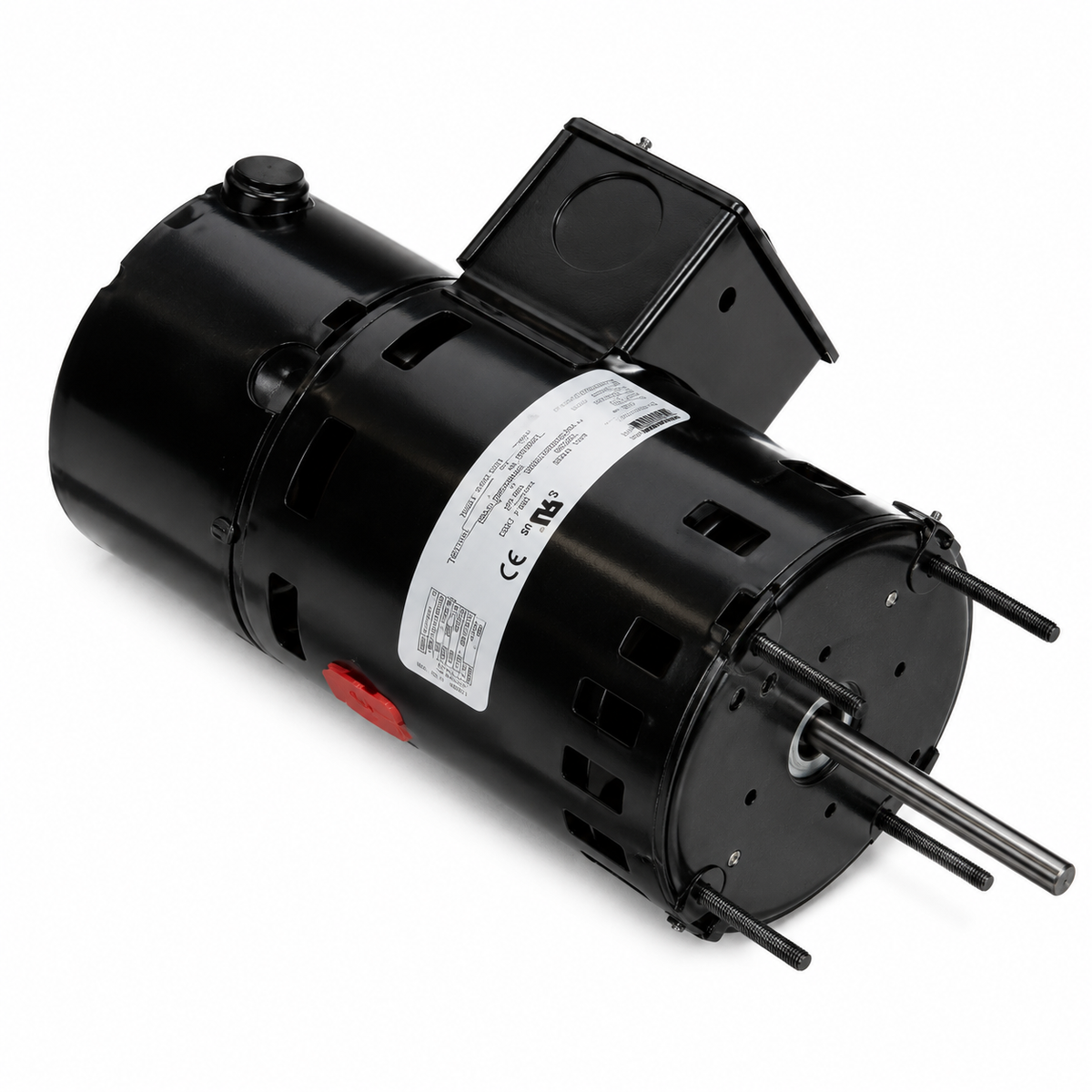

Fasco Draft Inducer Motors (HVAC/R) D653 - 1/20 HP - 230/460 V - 3000 RPM - Single phase

Fasco Draft Inducer Motors (HVAC/R) D653 - 1/20 HP - 230/460 V - 3000 RPM - Single phase

$249.00 CAD
$249.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D653

Brand : Fasco

HVAC : Draft Inducer Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 3000

Voltage : 230/460 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower :1/20
  • Voltage :230/460
  • Amps :1.1/0.44
  • RPM :3430/3000
  • Frequency :60 Hz
  • "C" Dim. :8.78"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/4" x 2.2"
  • Type :Shaded Pole
  • Speeds :2
  • Diameter :3.3"
  • Bearings :Ball
  • Rotation :CCWSE
  • Protector :Thermal
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :5
  • References: A.O.Smith 653, Fasco 7121-12839 7162-5762 UFM653, RFM653, Universal Electric 653
    Rheem/Ruud OEM Replacement Draft Inducer Motor
  • Reference : A.O.Smith 653, Fasco 7121-12839 7162-5762 UFM653, RFM653, Universal Electric 653
