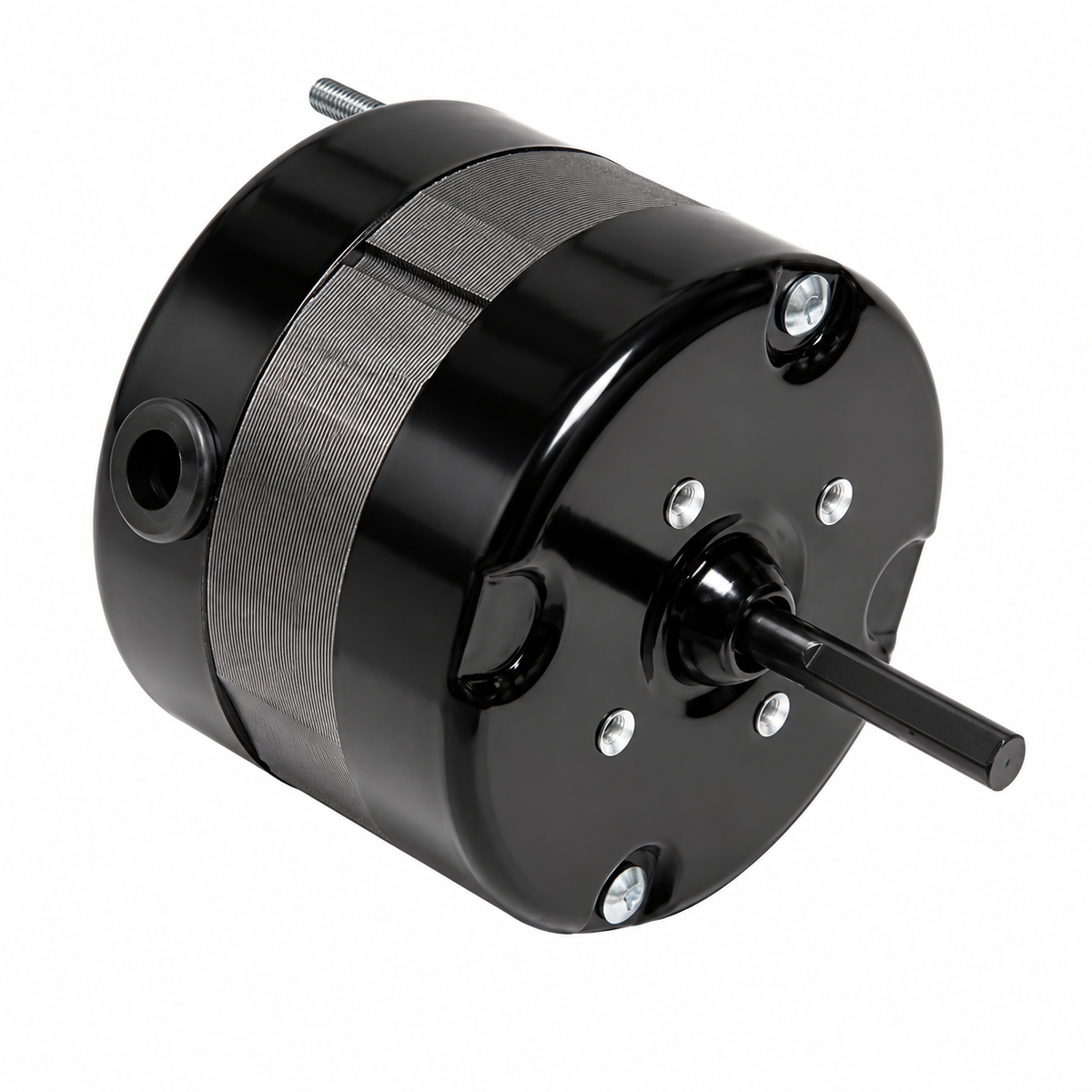

Fasco OEM Replacement Motors (HVAC/R) D534 - 1/35 HP - 115 V - 1500 RPM - single phase

Fasco OEM Replacement Motors (HVAC/R) D534 - 1/35 HP - 115 V - 1500 RPM - single phase

$119.00 CAD
$119.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D534

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/35 HP

RPM : 1500

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

• HP: 1/35
• Voltage: 115
• RPM: 1500
• Current (Amp): 1.50
• Phase: 1
• Rotation: Clockwise Shaft End
• Frame: 3.3
• Enclosure: Totally Enclosed Air Over
• Speeds: 2
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.250 in X 1 in
• Frequency: 60Hz
• Diameter: 3.3 in
• Frame Length: 2.32 in
• Bearings: Sleeve
• Features: class b insulation, 8" leads, extended studs lead end
• Reference : Electrohome 2868-407-094 2868-409-056, Fasco 7163-4335, 12324L
• Miami/Carey OEM Replacement General Purpose Motor
