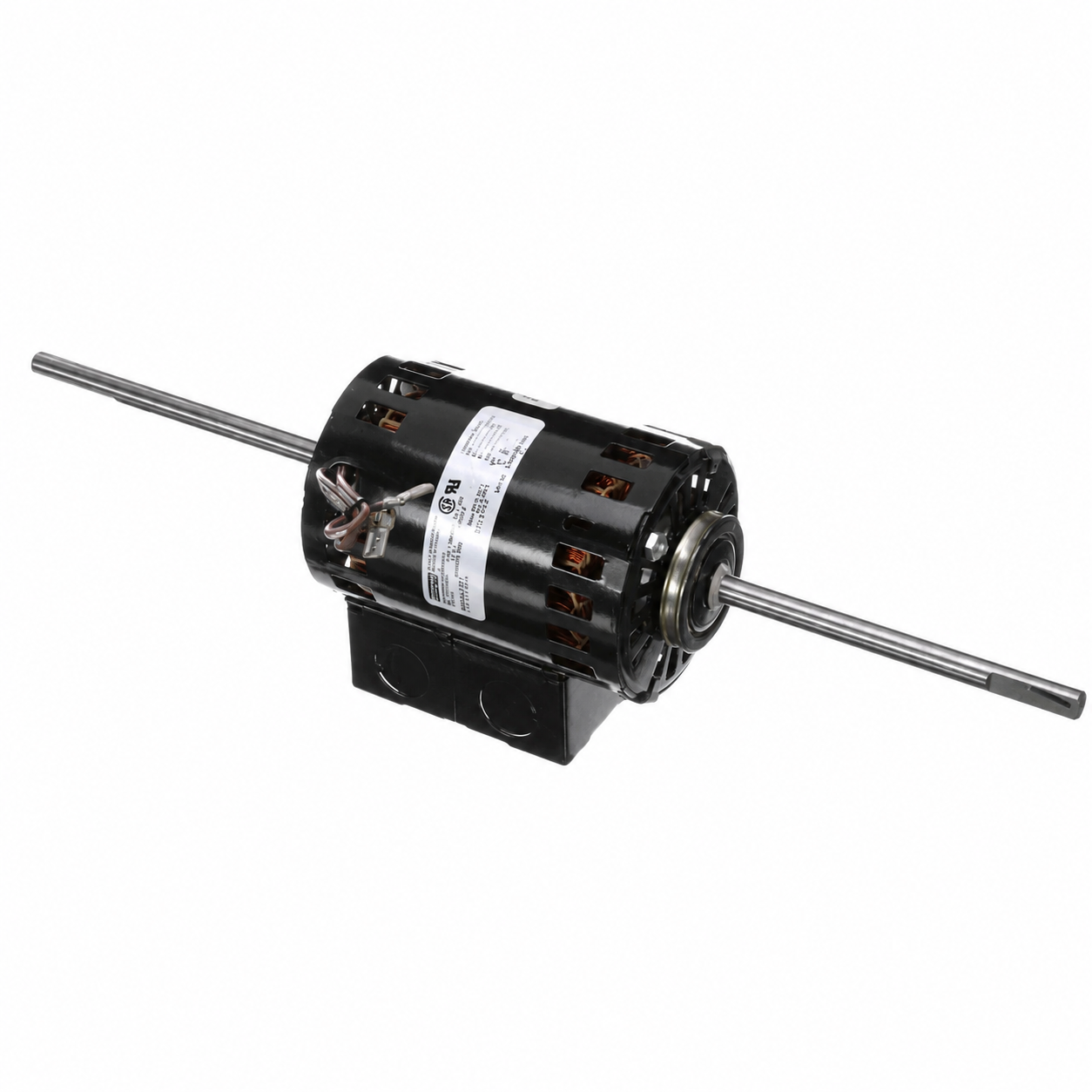

Fasco OEM Replacement Motors (HVAC/R) D1141 - 1/15 HP - 115 V - 1000 RPM - Single phase

Fasco OEM Replacement Motors (HVAC/R) D1141 - 1/15 HP - 115 V - 1000 RPM - Single phase

$445.00 CAD
$445.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1141

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/15 HP

RPM : 1000

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Resilient Ring Mount

  • Horsepower :1/15-1/25-1/35
  • Voltage :115
  • Amps :1.70/1.30/1.00
  • RPM :1000
  • Frequency :60 Hz
  • "C" Dim. :16.05"
  • Enclosure :Open Air Over
  • Shaft Dim. :5.68" x 3/8" x 5.62"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :3.3"
  • Bearings :Sleeve
  • Rotation :CWSE
  • Protector :Thermal
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :6
  • Reference : 879-382563B-00, A.O. Smith 9400, Fasco 7164-0362 7190-2353 7164-1171
