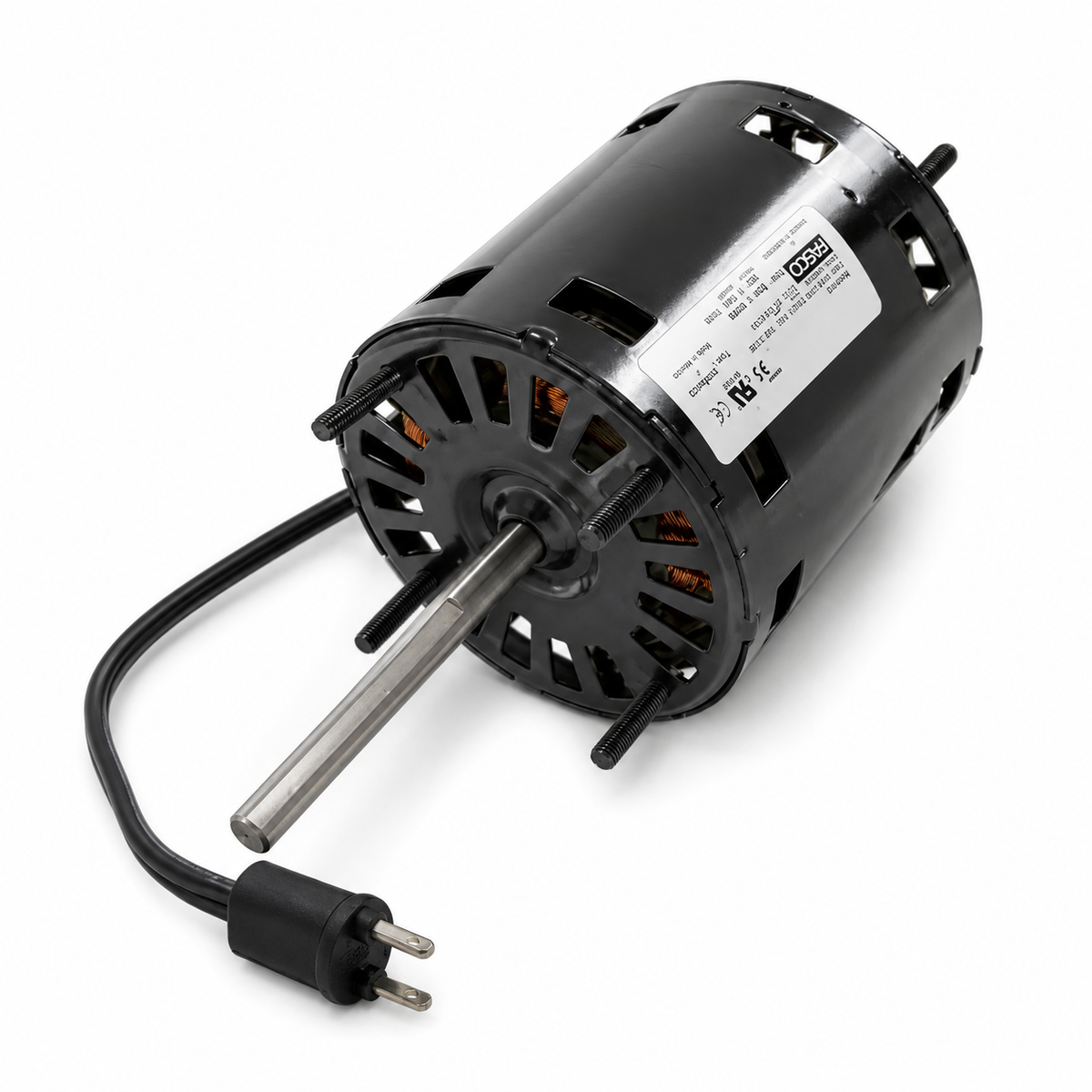

Fasco OEM Replacement Motors (HVAC/R) - D1126 - 1/20 HP - 208/230 V - 1500 RPM - Single phase

Fasco OEM Replacement Motors (HVAC/R) - D1126 - 1/20 HP - 208/230 V - 1500 RPM - Single phase

$101.00 CAD
$101.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1126

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1500

Voltage : 208/230 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Type : Shaded Pole
  • HP : 1/20
  • Voltage : 208-230
  • RPM : 1300/1500
  • Current (Amp) : 1.10
  • Phase : 1
  • Rotation : Clockwise Shaft End
  • Frame : 3.3
  • Enclosure : Open
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 5/16 in X 3.00 in
  • Frequency : 60Hz
  • Diameter : 3.3 in
  • Frame Length : 3.37 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A

  • Reference: Fasco 7173-0036 7173-0707 7163-2573 7163-5755 7163-7798 7163-9383 7173-0036 7173-0353 7173-0707, General Electric 5KSM59LS2262 5KSM59LS2262AS Bohn, MacMillan 8214127000 8214127010 8214127020 8214127030 8214127031 8254160100 8254360110 8354360171 8354360180, 5008TS/5008T/5034MS/5034M, Rotom R90573 R359, Universal Electric JA2R149 JA2R149N JA2R339 JA2R339N JAZS103 JAZS103N, Universal Stock No. 573, OmniDrive S33P502VA-04
