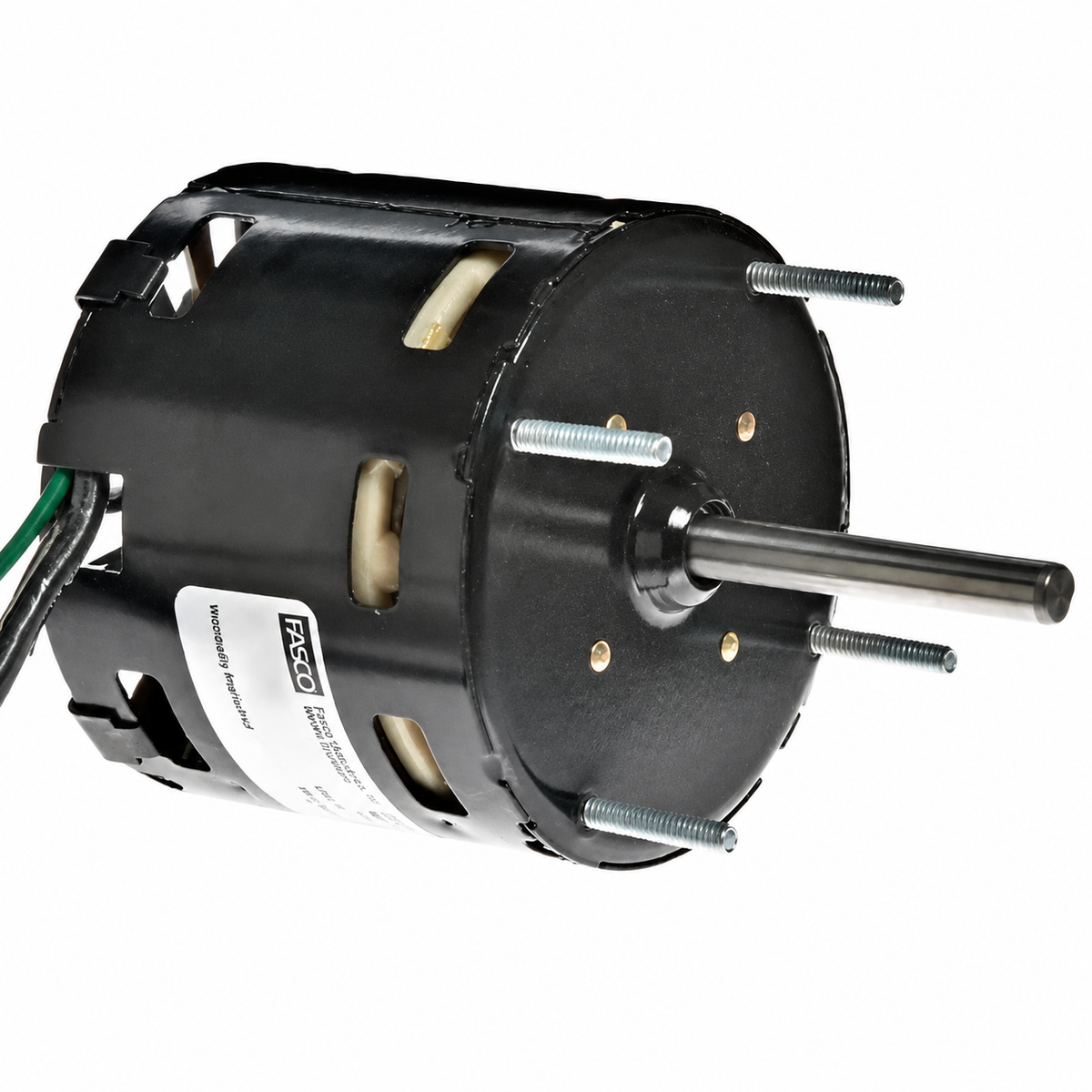

Fasco OEM Replacement Motors (HVAC/R) D1117 - 1/65 HP - 115 V - 1590 RPM - Single phase

Fasco OEM Replacement Motors (HVAC/R) D1117 - 1/65 HP - 115 V - 1590 RPM - Single phase

$159.00 CAD
$159.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1117

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/65 HP

RPM : 1690

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Type : Shaded Pole
  • HP : 1/65
  • Voltage : 115
  • RPM : 1590
  • Current (Amp) : 0.60
  • Phase : 1
  • Rotation : Clockwise Shaft End
  • Frame : 3.3
  • Enclosure : Open Air Over
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.313 in X 2.3 in
  • Frequency : 60Hz
  • Diameter : 3.3 in
  • Frame Length : 2.57 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Reference : 615049 612255 GC/GN140, Fasco 7163-7818, Loren Cook 615049, Loren Cook 620273
