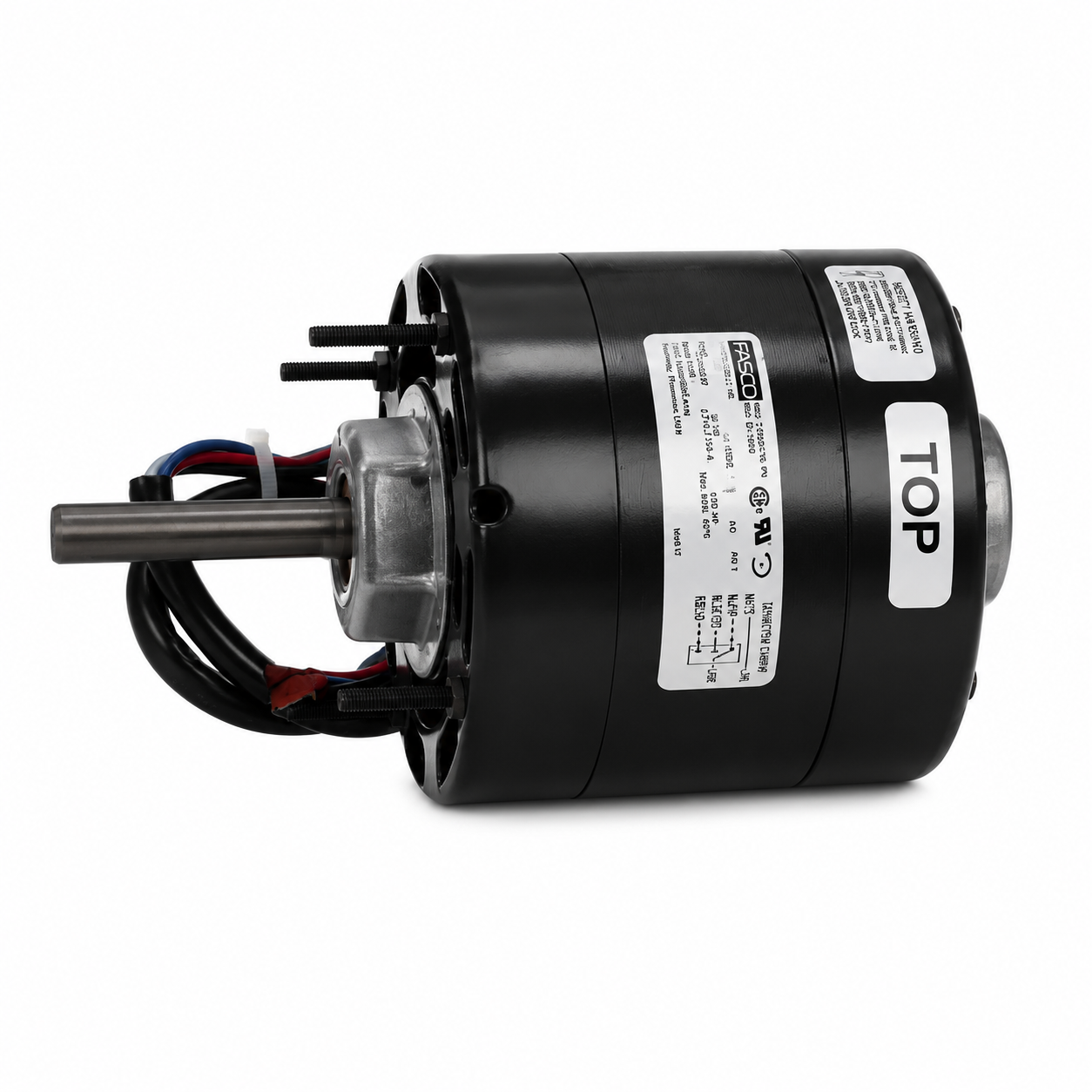

Fasco OEM Replacement Motors (HVAC/R) D1061 - 1/20 HP - 115 V - 1550 RPM - Single phase

Fasco OEM Replacement Motors (HVAC/R) D1061 - 1/20 HP - 115 V - 1550 RPM - Single phase

$479.00 CAD
$479.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1061

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 4.4

Mounting : Hex Hub / Stud Mount

• HP: 1/20
• Voltage: 115
• RPM: 1550
• AMPs: 2
• Phase: 1
• Rotation: CCWSE
• Frame: 4.4
• Enclosure: Open
• Speeds: 3
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1
• Shaft Dimensions: 1/2"X2.75"
• Frequency: 60Hz
• Diameter: 4.4"
• Length: 7.61"
• Bearings: Sleeve
• Features: Class A Insulation, 16" Leads, Extended Studs Shaft End, Hex Mounting Hub Shaft End and Opposite Shaft End
• Weight: 9 lbs
• Reference : Fasco 7108-2425 7108-6730 7008-6857 7108-6648, Franklin 8414010270
