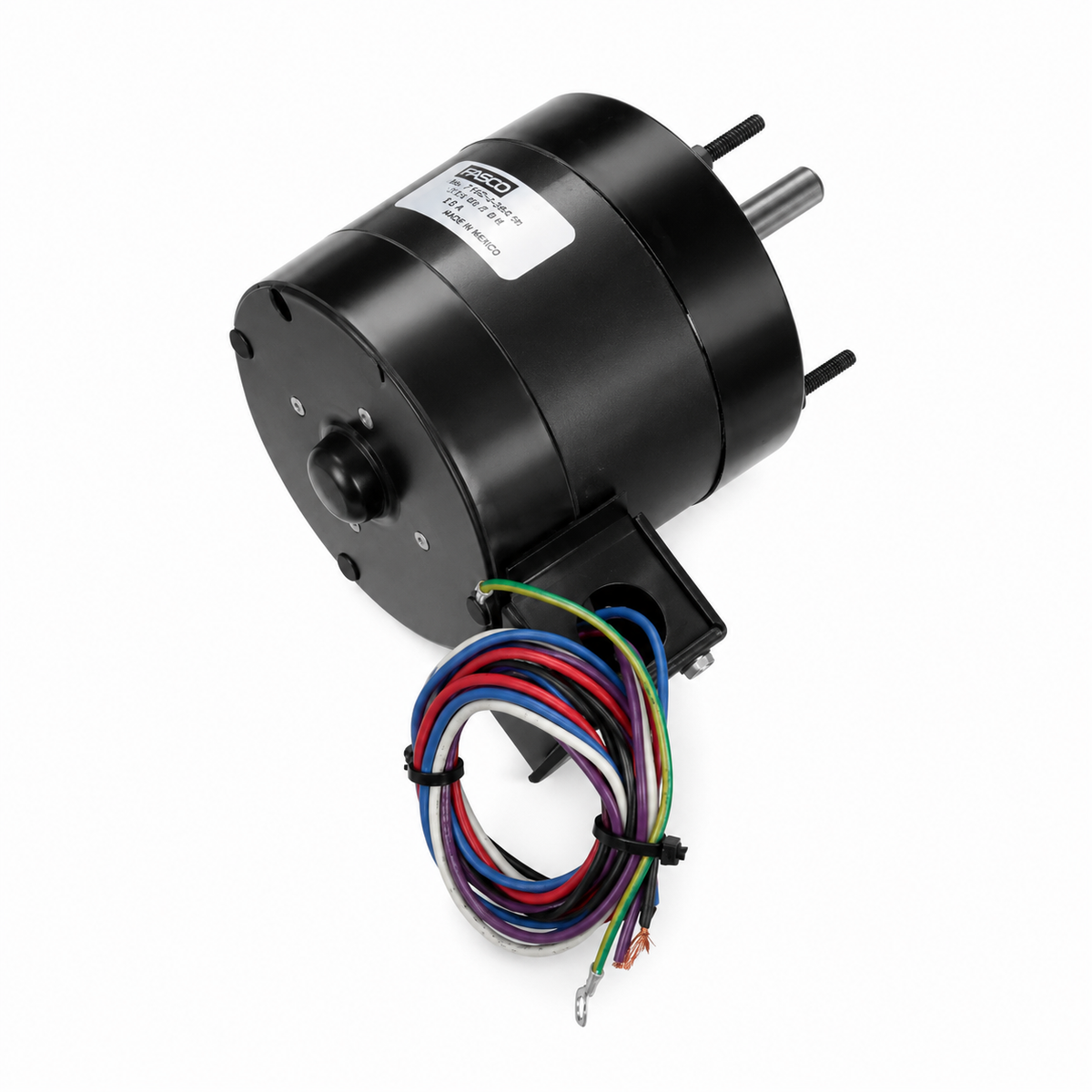

Fasco OEM Replacement Motors (HVAC/R) D115 - 1/12 HP - 115/230 V - 1550 RPM - Single phase

Fasco OEM Replacement Motors (HVAC/R) D115 - 1/12 HP - 115/230 V - 1550 RPM - Single phase

$509.00 CAD
$509.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D115

Brand : Fasco

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/12 HP

RPM : 1550

Voltage : 115/230 V

Phase : Single

Frame : 4.4

Mounting : Stud Mount

• HP: 1/12
• Voltage: 115/230
• RPM: 1550
• Current (Amp): 2.5/1.3
• Phase: 1
• Rotation: Counterclockwise Shaft End
• Frame: 4.4
• Enclosure: Totally Enclosed Air Over
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.500 in X 2.00 in
• Frequency: 60Hz
• Diameter: 4.4 in
• Frame Length: 4.62 in
• Bearings: Sleeve
• Features: class A insulation, conduit box, 26" leads, extended studs shaft end
• Reference : Carrier HC52AL756, Fasco 7108-2237 7108-5162, 78-27-721T, Universal Electric CB2J627 DA2G065N
