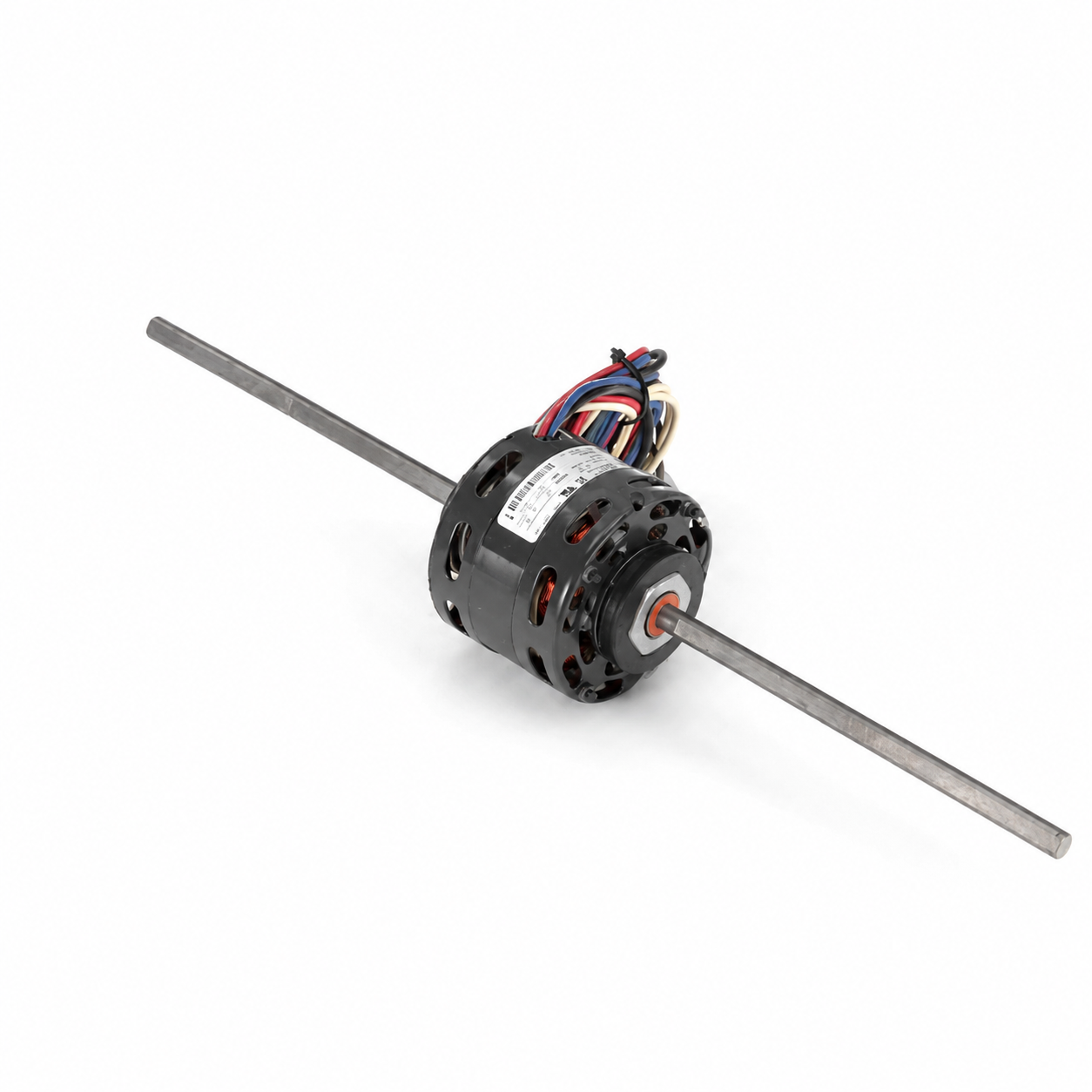

Fasco Fan Coil Motors (HVAC/R) D635 - 1/10 HP - 230 V - 1550 RPM - Single phase

Fasco Fan Coil Motors (HVAC/R) D635 - 1/10 HP - 230 V - 1550 RPM - Single phase

$429.00 CAD
$429.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D635

Brand : Fasco

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1550

Voltage : 230 V

Phase : Single

Mounting : Resilient Ring Mount

• HP: 1/10
• Voltage: 230
• RPM: 1550
• Current (Amp): 1.80
• Phase: 1
• Rotation: Reversible
• Frame: 4.4
• Enclosure: Open Air Over
• Speeds: 3
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 10 in X 0.500 in X 10 in
• Frequency: 60Hz
• Diameter: 4.4 in
• Frame Length: 3.38 in
• Bearings: Sleeve
• Features: class b insulation, 60" leads, resilient mounting ring lead end and opposite lead end, double shaft with flat
• Reference : Fasco 7108-0162 7108-0238
