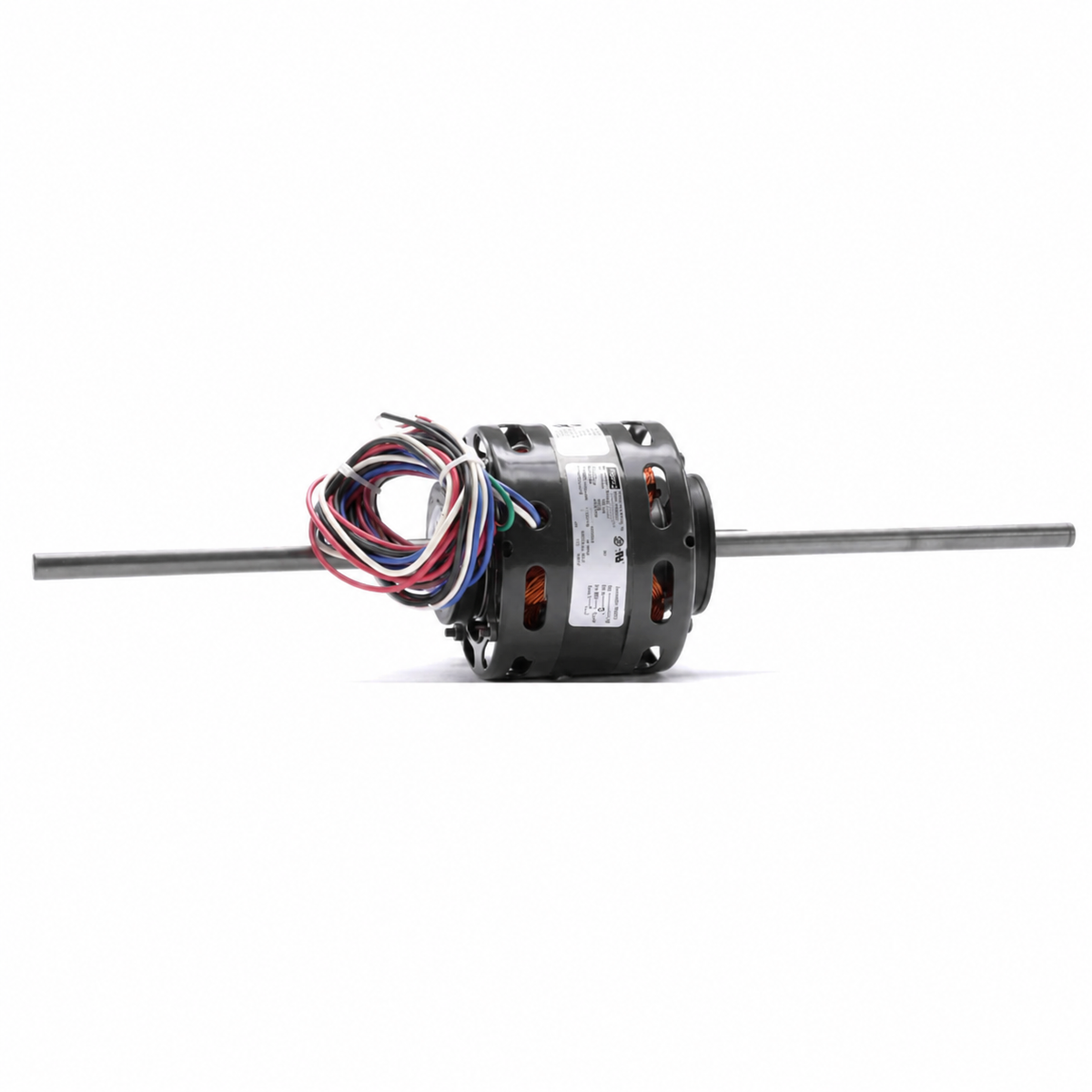

Fasco Fan Coil Motors (HVAC/R) D236 - 1/10 HP - 115 V - 1550 RPM - Single phase

Fasco Fan Coil Motors (HVAC/R) D236 - 1/10 HP - 115 V - 1550 RPM - Single phase

$349.00 CAD
$349.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D236

Brand : Fasco

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 4.4

Mounting : Resilient Ring Mount

  • Horsepower :1/10-1/15-1/25
  • Voltage :115
  • Amps :3.5-2.4-1.8
  • RPM :1550
  • Frequency :60 HZ
  • "C" Dim. :18 3/8"
  • Enclosure :Open
  • Shaft Dim. :7 1/2" X 1/2" X 7 1/2"
  • Type :Shaded Pole
  • Speeds :3
  • Diameter :4.4"
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :None
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :8
  • Reference :7108-0006, 7108-0075, 7108-0085, 7108-0105, 7108-2390, 7108-2456, 7108-2568, 7128-2445, 420
