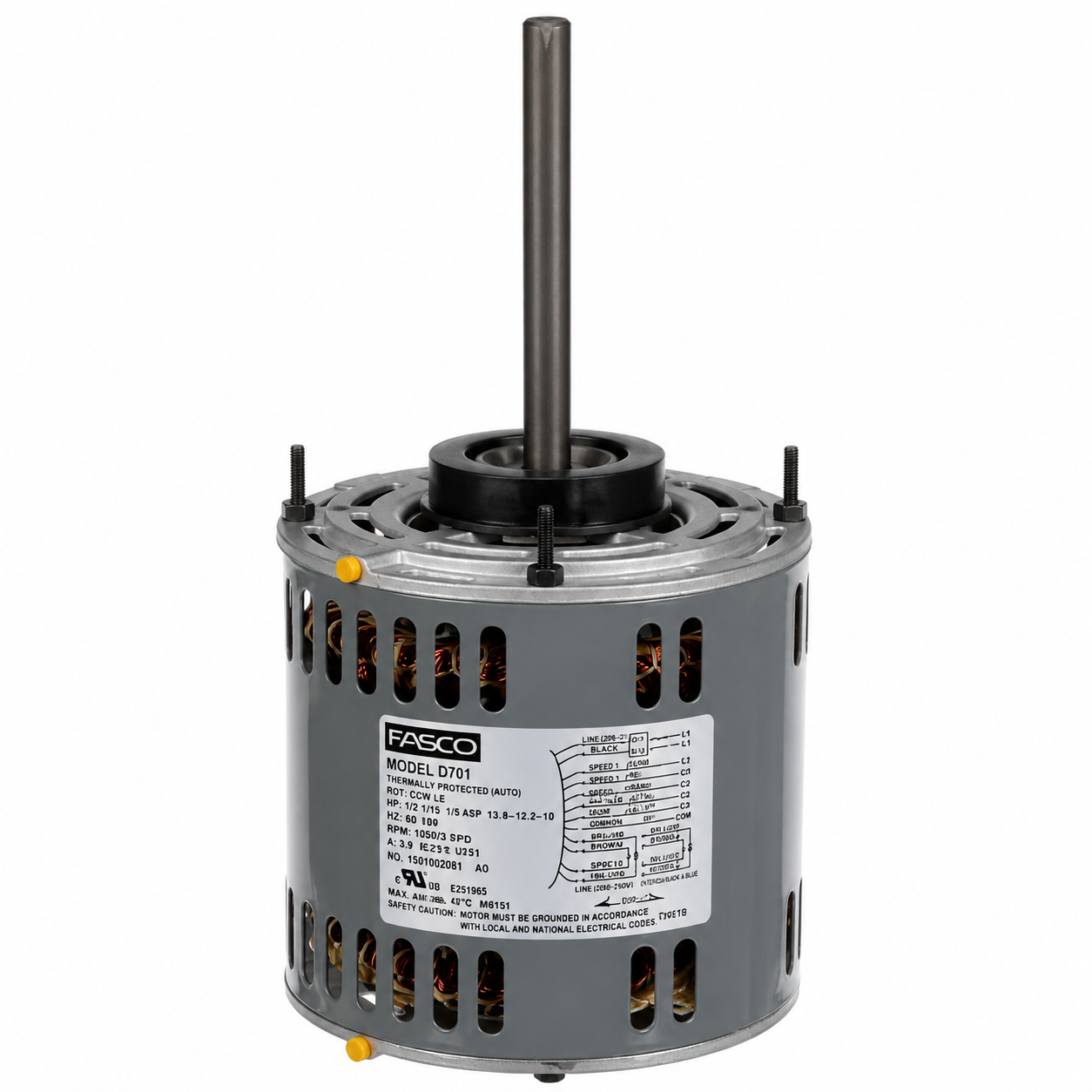

Fasco Fan & Blower Motors (HVAC/R) D701 - 1/2 HP - 115 V - 1075 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D701 - 1/2 HP - 115 V - 1075 RPM - Single phase

$247.00 CAD
$247.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D701

Brand : Fasco

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Ring / Stud Mount

• HP: 1/2
• Voltage: 115
• RPM: 1075
• AMPs: 7.7
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Open
• Speeds: 4
• Protector: Automatic
• Ambient Temp: 40°C
• Service Factor: 1
• Shaft Dimensions: 1/2"X5.42"
• Frequency: 60Hz
• Diameter: 5-5/8"
• Length: 5.39"
• Bearings: Sleeve
• Features: CLASS B INSUL, 26" LEADS, EXTENDED STUDS SHAFT END, RESILIENT RING MOUNTING, BELLY BAND, 10MFD-370V REQUIRED
• Weight: 15 LBS
