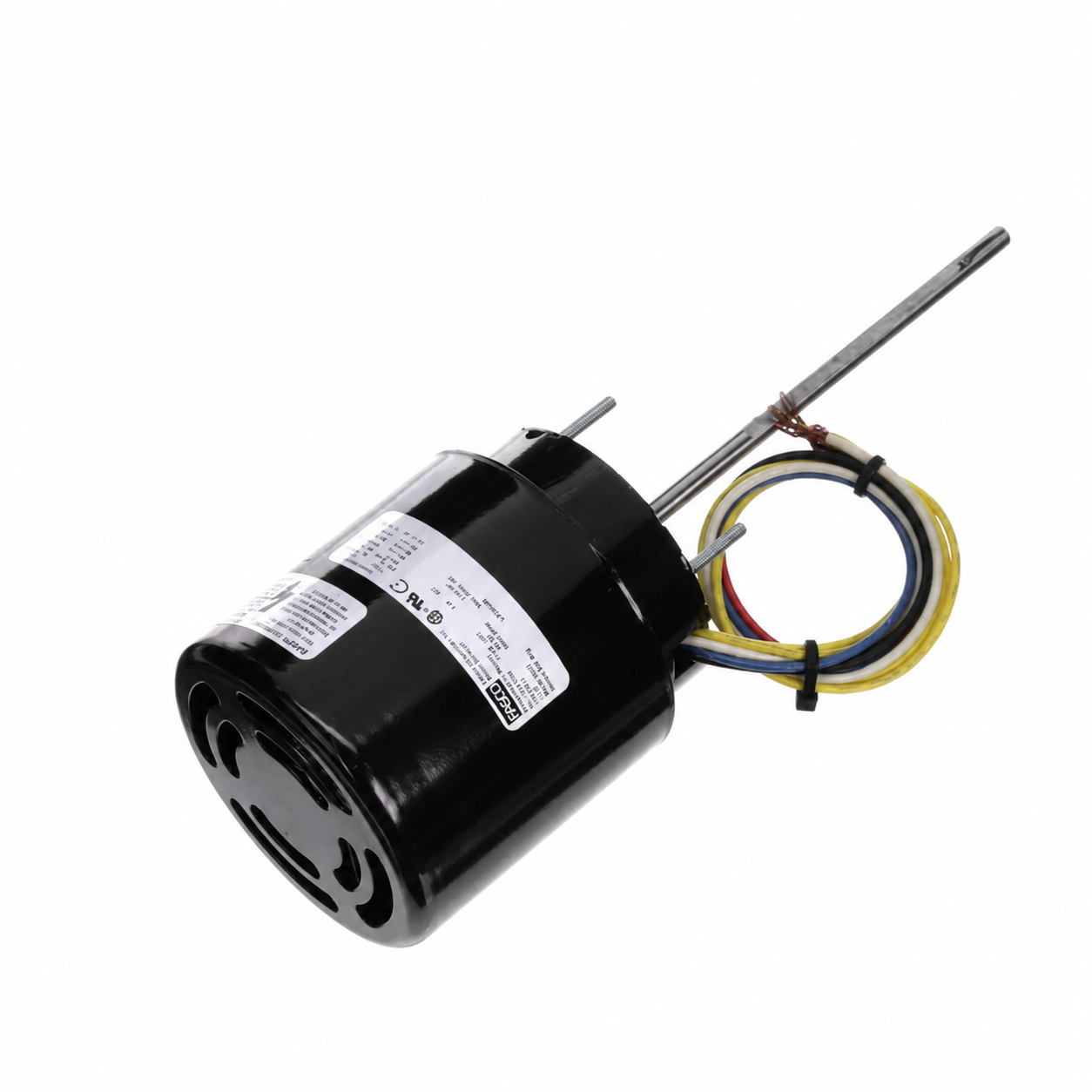

Fasco Fan & Blower Motors (HVAC/R) D220 - 1/20 HP - 115/230 V - 3000 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D220 - 1/20 HP - 115/230 V - 3000 RPM - Single phase

$299.00 CAD
$299.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D220

Brand : Fasco

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 3000

Voltage : 115/230 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

• HP: 1/20
• Voltage: 115/230
• RPM: 3000
• Current (Amp): 1.70
• Phase: 1
• Rotation: Clockwise Shaft End
• Frame: 3.3
• Enclosure: Totally Enclosed Fan Cooled
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.312 in X 6.50 in
• Frequency: 60Hz
• Diameter: 3.3 in
• Frame Length: 3.43 in
• Bearings: Ball
• Reference : A.O.Smith 995, Fasco 7121-7583 7121-3017 7121-7504, Universal Electric JB1S058N
