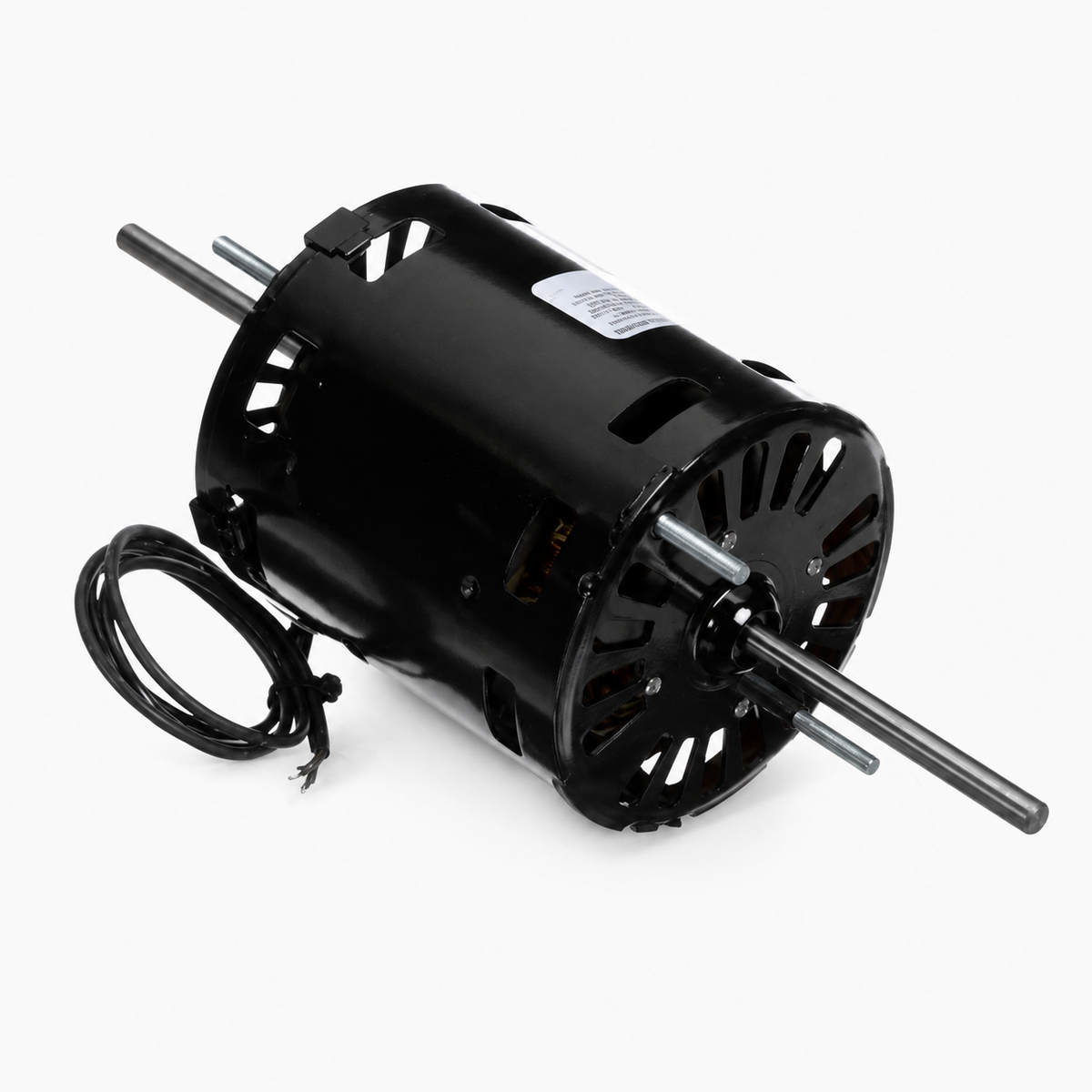

Fasco Fan & Blower Motors (HVAC/R) D213 - 1/16 HP - 115 V - 3000 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D213 - 1/16 HP - 115 V - 3000 RPM - Single phase

$198.00 CAD
$198.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D213

Brand : Fasco

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/16 HP

RPM : 3000

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower :1/16
  • Voltage :115
  • Amps :2.1
  • RPM :3000
  • Frequency :60 Hz
  • "C" Dim. :9.39"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/4" x 2-3/4"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :3.3"
  • Frame :3.3
  • Bearings :Sleeve
  • Rotation :CCWSE
  • Protector :Thermally Protected
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :4

  • Reference : Electrohome 2868513034 2868513041 2868513044 2868513045 2868513046 2868513048 2868513059 2868513075 2868513077 2868513092 2868513149 2868513307 2868513001, Fasco 7121-8507 7021-1041 7021-3978 7121-8507



View full details
