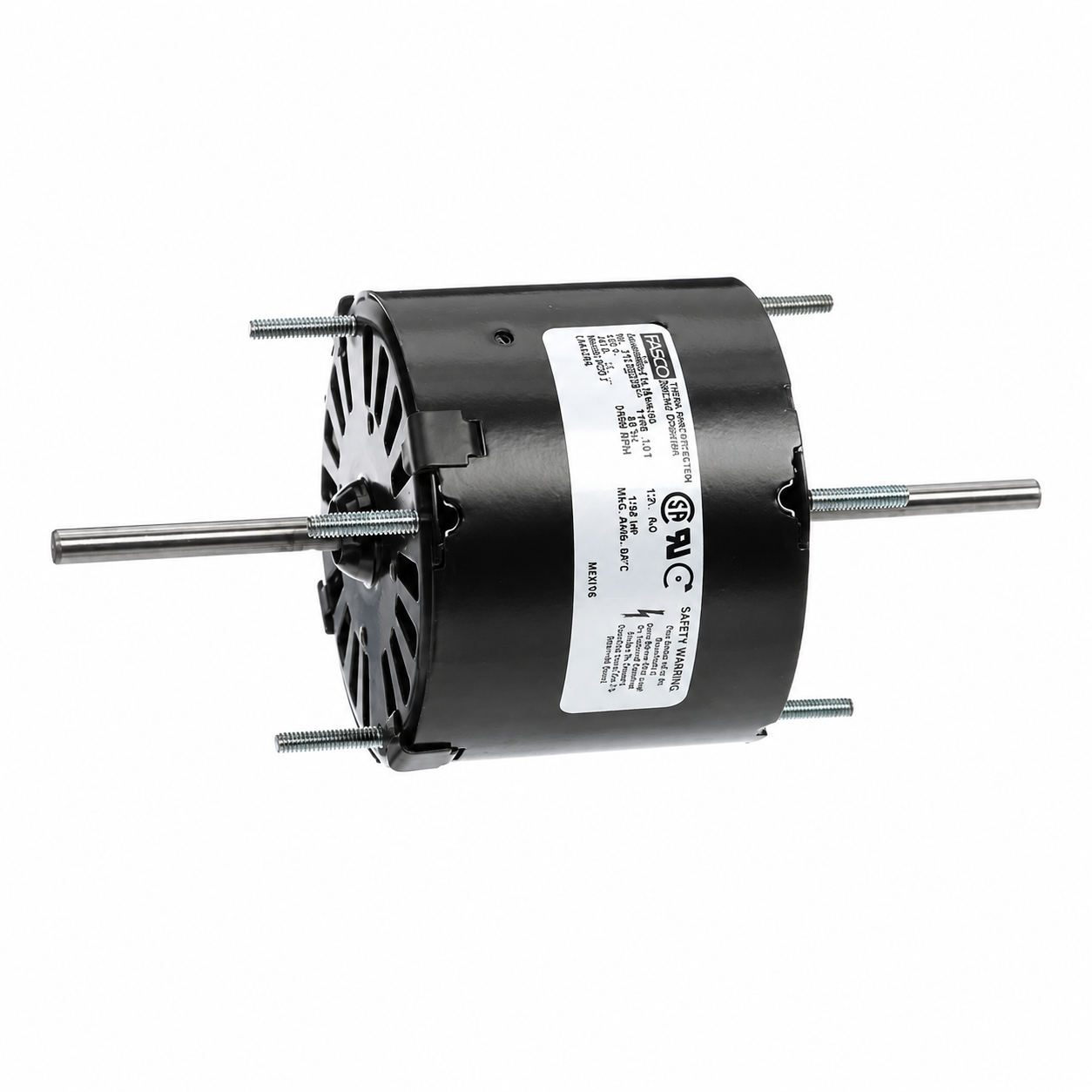

Fasco Fan & Blower Motors (HVAC/R) D207 - 1/30 HP - 230 V - 3000 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D207 - 1/30 HP - 230 V - 3000 RPM - Single phase

$152.00 CAD
$152.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D207

Brand : Fasco

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/30 HP

RPM : 3000

Voltage : 230 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower :1/30
  • Voltage :230
  • Amps :0.60
  • RPM :3000
  • Frequency :60 Hz
  • Length :2-3/4"
  • Enclosure :Open Air Over
  • Shaft Dim. :2-1/4" x 1/4" x 2-1/4"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :3.3"
  • Bearings :Sleeve
  • Rotation :Double
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Double Shaft, Rotation is determined by viewing the shaft end
  • Weight (lbs.) :3

  • Reference : Electrohome 2862407013, Fasco 7121-1796 7121-3274 7021-3796 7121-1794 7121-5130, Universal Electric Stock No. 979, JA1N122N
