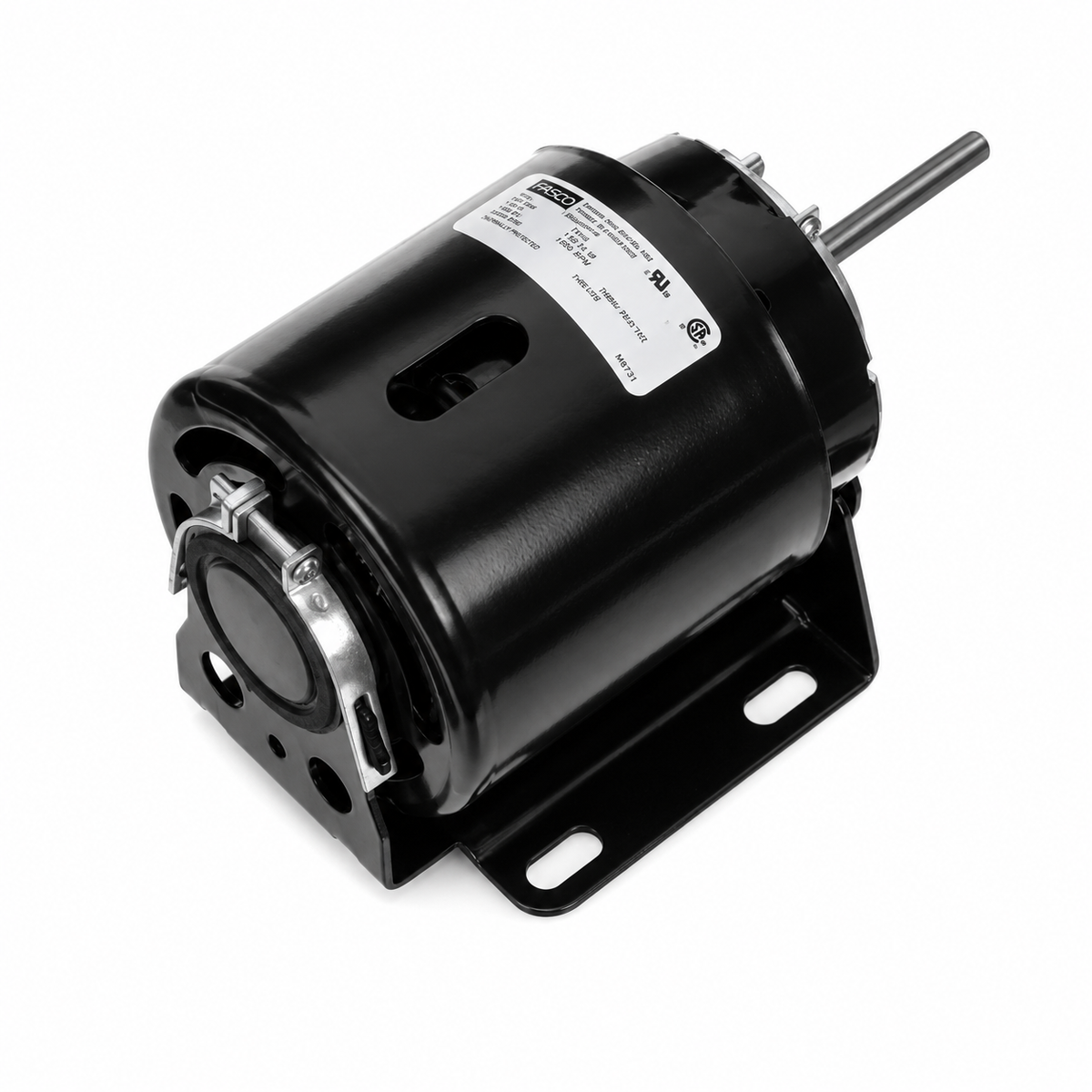

Fasco Fan & Blower Motors (HVAC/R) D138 - 1/25 HP - 115 V - 1500 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D138 - 1/25 HP - 115 V - 1500 RPM - Single phase

$275.00 CAD
$275.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D138

Brand : Fasco

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/25 HP

RPM : 1500

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Resilient Base

• HP: 1/25
• Voltage: 115
• RPM: 1500
• Current (Amp): 1.65
• Phase: 1
• Rotation: Clockwise Shaft End
• Frame: 3.3
• Enclosure: Totally Enclosed Fan Cooled
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.313 in X 2.60 in
• Frequency: 60Hz
• Diameter: 3.3 in
• Frame Length: 3.01 in
• Bearings: Sleeve
• Features: class b insulation, 12" leads, resilient base, shaft with flat.
• Reference : Fasco 7163-1884 7163-8926
