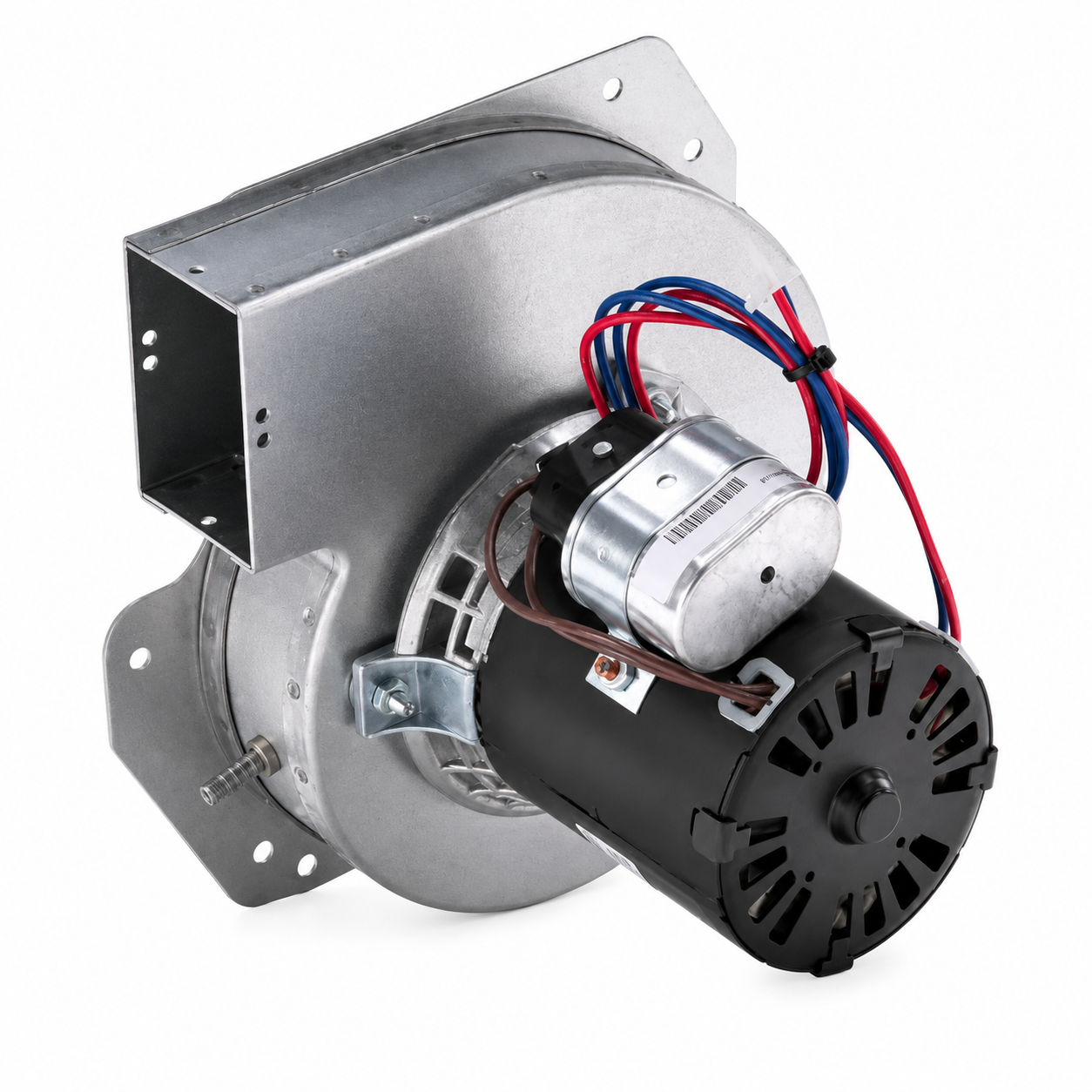

Fasco Draft Inducer / Vent Motor A330 - 208/230 V - 3200 RPM - Single phase

• OEM Direct Replacement - Draft Inducer Blower
• 3.3" Diameter
• Permanent Split Capacitor (PSC)
• Capacitor Required: 3 MFD - 370 Volts
• Capacitor Supplied with Blower
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 21-19" Leads with Pin Terminals
• 7-5" Leads with F Flag Terminals
• Voltage: 208-230 V
• Motor Type: Permanent Split Capacitor
• Thermal Protection: Thermally Protected
• Speed: 3200 RPM
• Current: 0.55 A
• Number of Speeds: 1
• Frequency: 50/60 Hz
• Phase: 1
• Ambient Temperature: 40°C
• UL: Yes
• Insulation Class: B
• CSA: Yes
• Blower Outlet Shape: Rectangle
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Ball
• UPC: 815585026709
• Weight: 6.50 LB
• Packaged Length: 11.38 IN
• Packaged Width: 8.25 IN
• Packaged Height: 7.75 IN
• Fasco Model: 70625926
• Reference : Century 390461, Lennox 7062-5546 69M3301 7062-4083 7062-4517 7062-4608, Fasco 7062-5546 7062-5926, 9118201, B018A1WTLI
