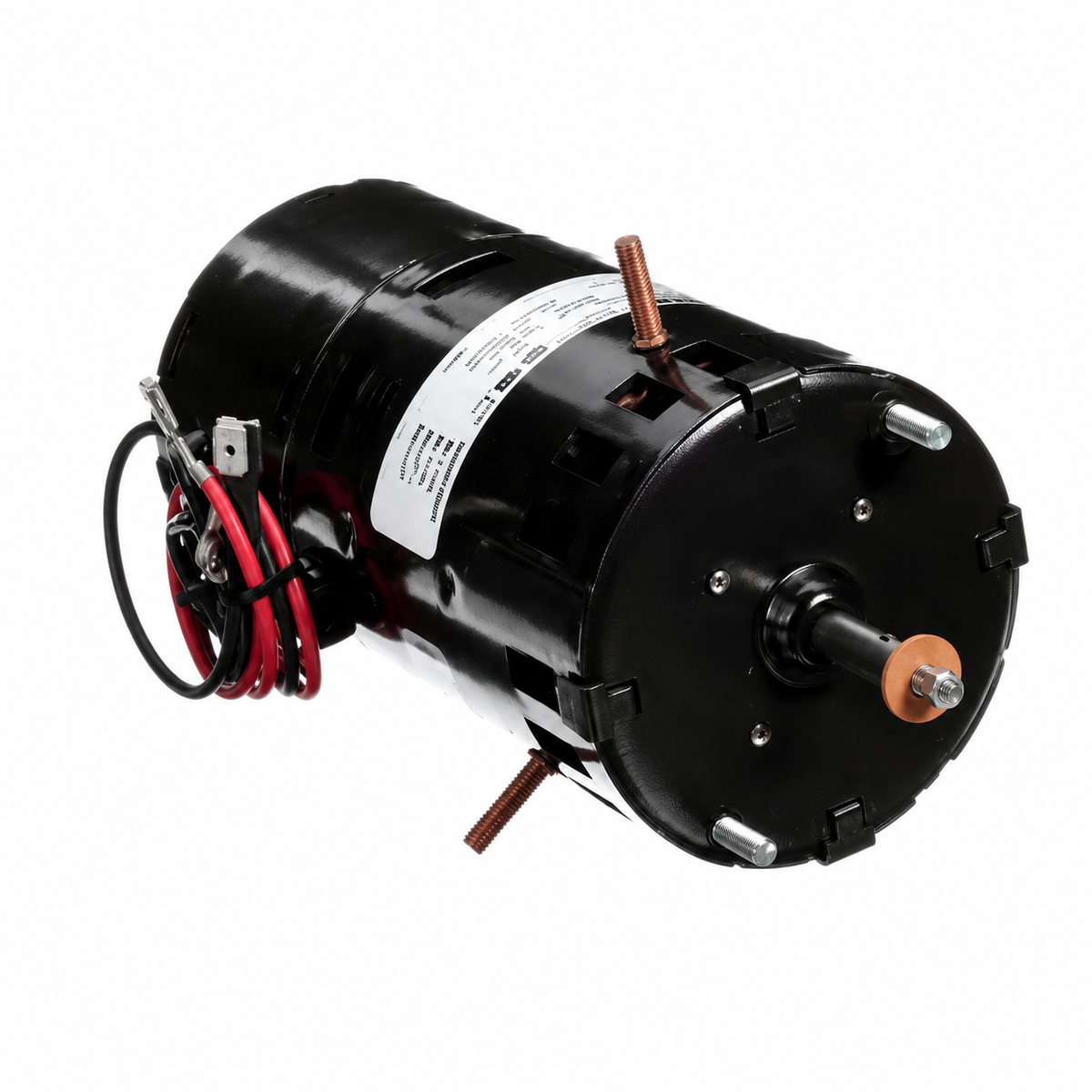

Fasco Draft Inducer Motors (HVAC/R) D454 - 1/30 HP - 115 V - 3000 RPM - Single phase

Fasco Draft Inducer Motors (HVAC/R) D454 - 1/30 HP - 115 V - 3000 RPM - Single phase

$225.00 CAD
$225.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D454

Brand : Fasco

HVAC : Draft Inducer Motors (HVAC/R)

Horsepower : 1/30 HP

RPM : 3000

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower :1/30
  • Voltage :115
  • Amps :1.5
  • RPM :3000
  • Frequency :60 Hz
  • "C" Dim. :7.94"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/4" x 1.5"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :3.3"
  • Bearings :Sleeve
  • Rotation :CWSE
  • Protector :Thermal
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :4

  • Reference : A.O.Smith 357, Electrohome 2862-405-032 2862-405-034 2862-405-039 2862-405-060 2862-405-061 2868-513-068 2868-513-069 2868-513-070, Fasco 7121-1631 7121-5334, Universal Electric JA1M069 JB1M077, 620161 620240 286851371, AA1M006NV AA1M011NV, SW280-1 SW2801
    Roberts Gordon RTH-75A
