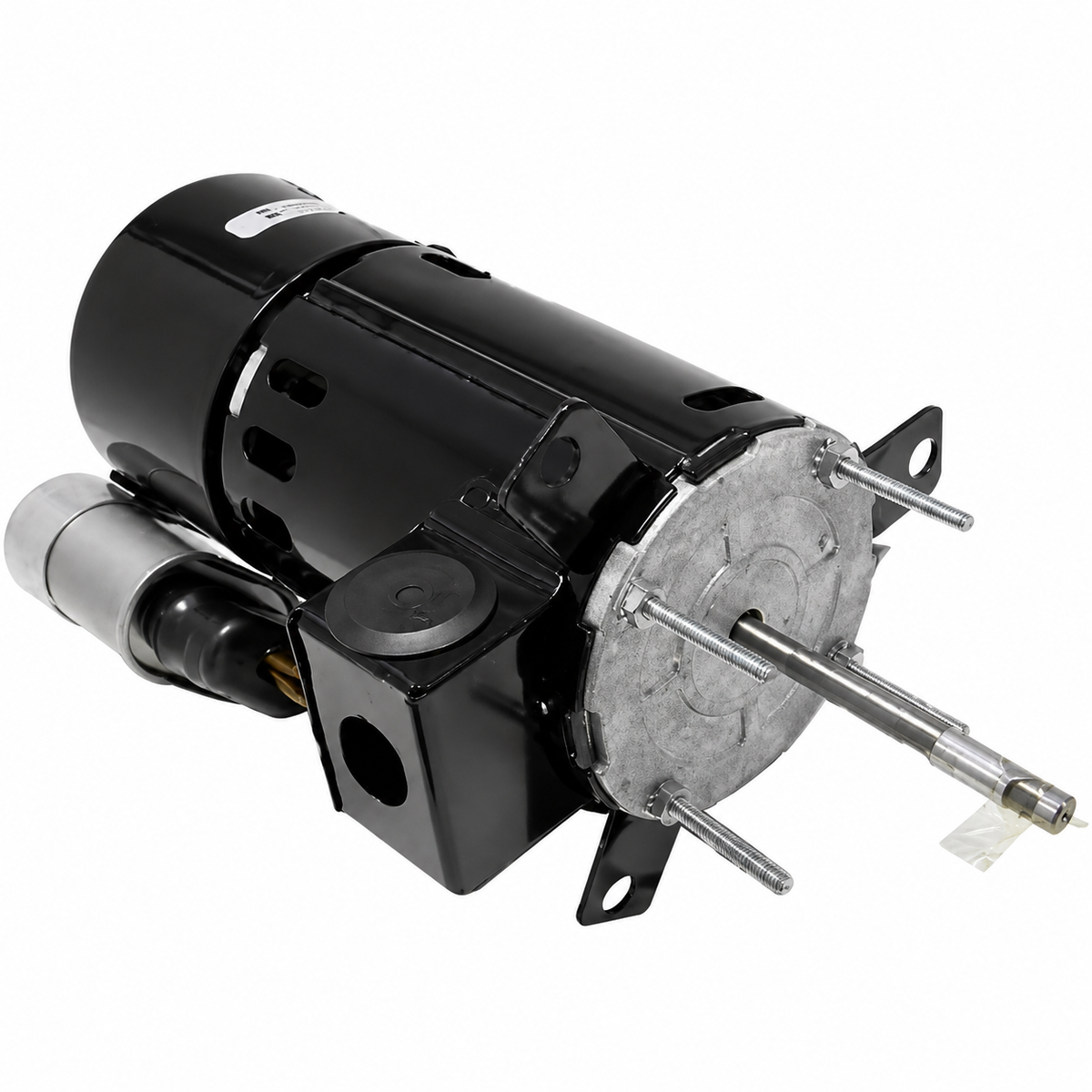

Fasco Draft Inducer Motors (HVAC/R) D412 - 1/9 HP - 230 V - 3000 RPM - Single phase

Fasco Draft Inducer Motors (HVAC/R) D412 - 1/9 HP - 230 V - 3000 RPM - Single phase

$350.00 CAD
$350.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D412

Brand : Fasco

HVAC : Draft Inducer Motors (HVAC/R)

Horsepower : 1/9 HP

RPM : 3000

Voltage : 230 V

Phase : Single

Frame : 3.3

Mounting : Lug Mount

  • Horsepower :1/9
  • Voltage :230
  • Amps :0.7
  • RPM :3000/2500
  • Frequency :60 Hz
  • "C" Dim. :10.57"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/4" x 3.8"
  • Type :Permanent Split Capacitor
  • Speeds :2
  • Diameter :3.3"
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Thermal
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :6
  • Reference : A.O.Smith 371, Electrohome 2882-541-403, Fasco 7162-0941 7021-2109 7021-1313 7162-0059 7162-0102 7162-0248 7162-0267 7162-0271 7162-0832, OmniDrive UFM410 UFM3714, Rotom RFM410, Universal Electric AA1H049 AA1S013N JB1S006 JB1S029 JB1S032 JF1H043
