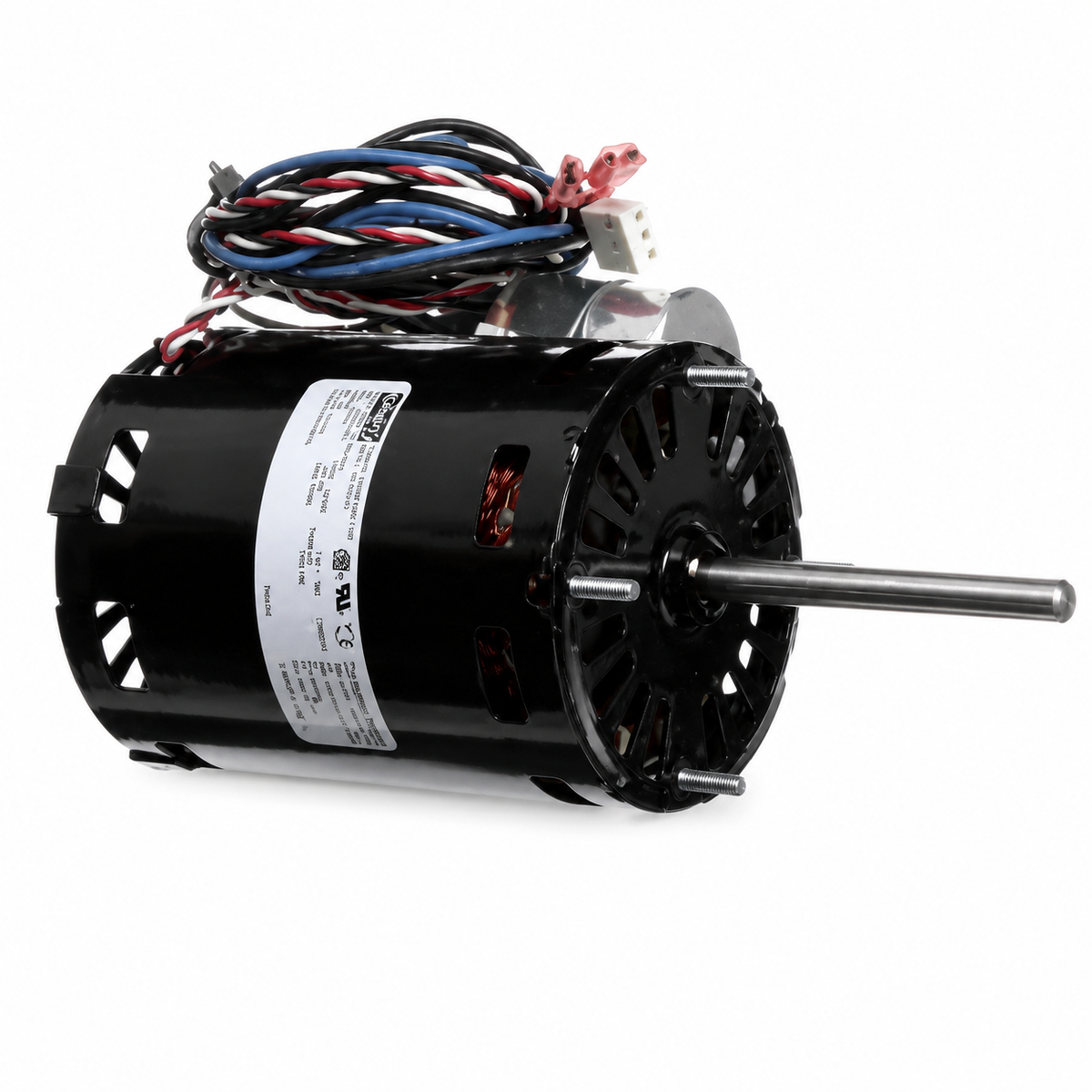

Fasco Draft Inducer Motors (HVAC/R) D1184 - 1/16 HP - 460 V -3450 RPM - Single phase

Fasco Draft Inducer Motors (HVAC/R) D1184 - 1/16 HP - 460 V -3450 RPM - Single phase

$359.00 CAD
$359.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D1184

Brand : Fasco

HVAC : Draft Inducer Motors (HVAC/R)

Horsepower : 1/16 HP

RPM : 3450

Voltage : 460 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower :1/16
  • Voltage :460
  • Amps :0.3
  • RPM :3450
  • Frequency :60 Hz
  • "C" Dim. :8.1"
  • Enclosure :Open Air Over
  • Shaft Dim. :5/16" x 3.35"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :3.3"
  • Bearings :Ball
  • Rotation :CCWSE
  • Protector :Thermal
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :56" Leads with Spade Terminals
  • Weight (lbs.) :5
  • References: A.O.Smith Century 9625, Fasco 7162-4419 7162-6373, OmniDrive SS1186, Universal Electric JF1H091N
