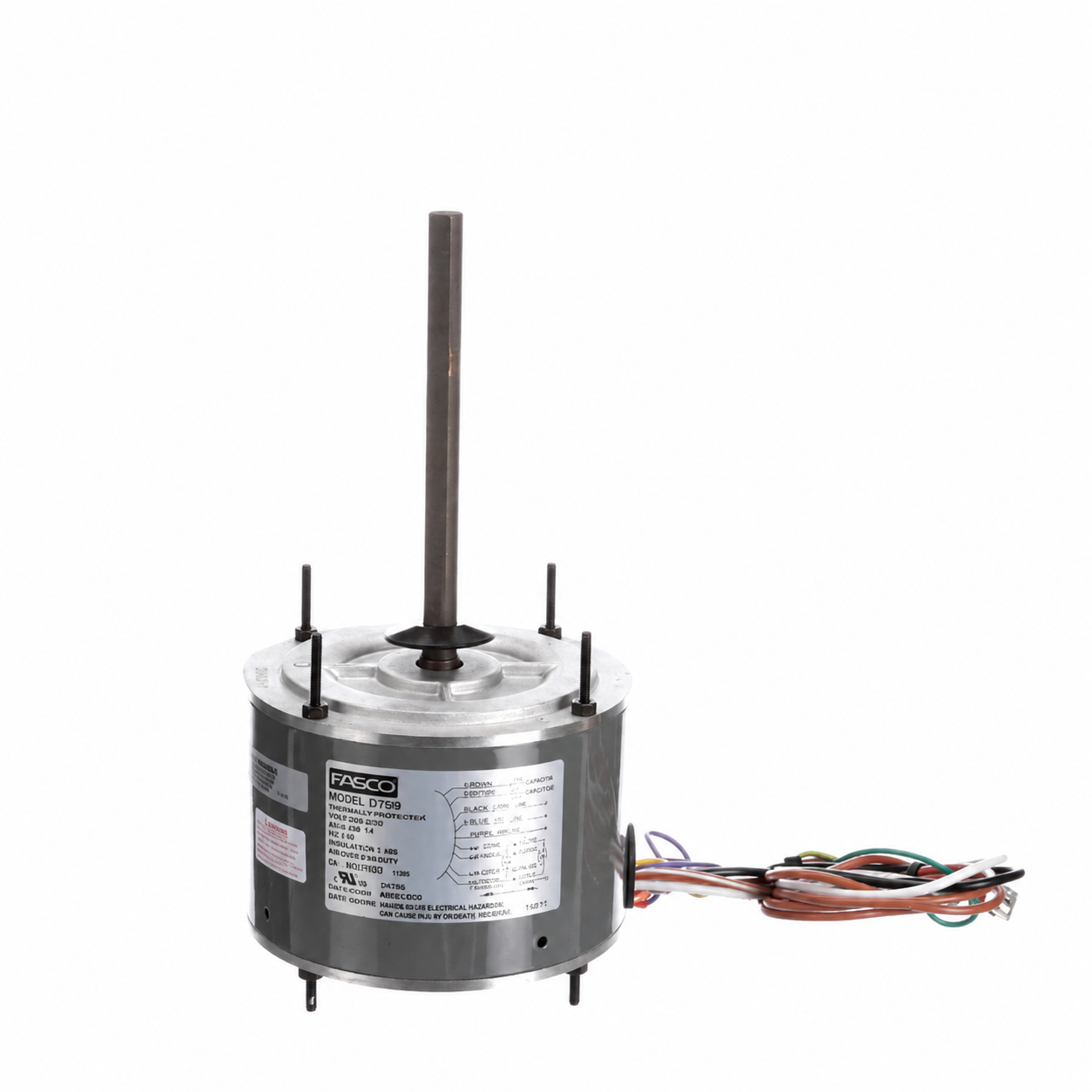

Fasco Condenser Fan Motors (HVAC/R) D7909 - 1/4 HP - 208/230 V - 1075 RPM - Single phase

Fasco Condenser Fan Motors (HVAC/R) D7909 - 1/4 HP - 208/230 V - 1075 RPM - Single phase

$189.00 CAD
$189.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D7909

Brand : Fasco

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Stud Mount

• HP: 1/4
• Voltage: 208-230
• RPM: 1075
• Current (Amp): 1.80
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Speeds: 1
• Protector: Automatic
• Ambient Temp: 60°C
• Service Factor: 1.00
• Shaft Dimensions: 0.500 in X 6.5 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 3.98 in
• Bearings: Ball
• Capacitor Rating: 5-44
• Features: class b insulation, 27" leads, extended studs shaft end and lead end, belly band mount (belly band not included), capacitor required: 5 mfd-370 volts (not supplied with motor)
