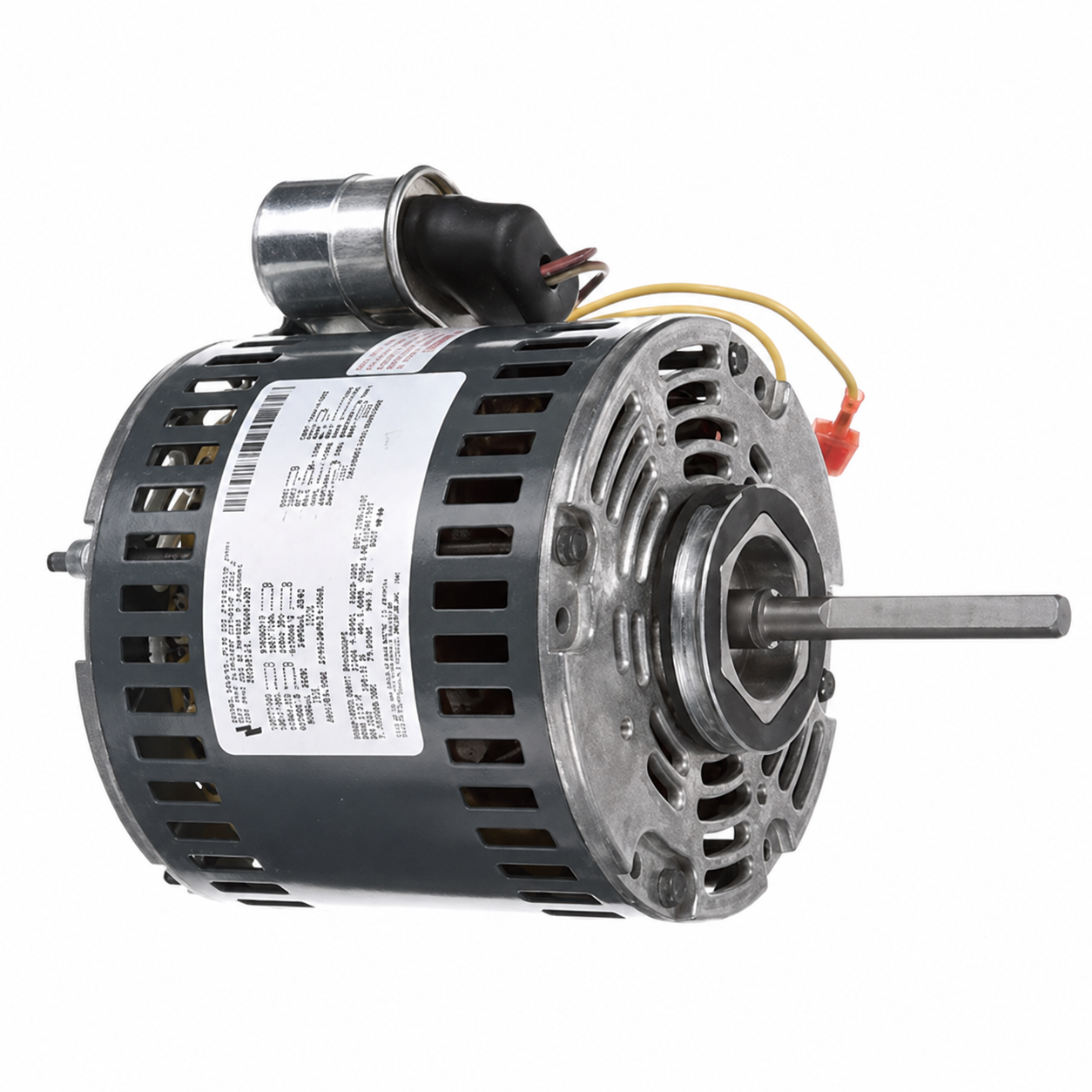

Fasco Condenser Fan Motors (HVAC/R) D487 - 1/10 HP - 115/208-230 V - 1550 RPM - Single phase

Fasco Condenser Fan Motors (HVAC/R) D487 - 1/10 HP - 115/208-230 V - 1550 RPM - Single phase

$339.00 CAD
$339.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : D487

Brand : Fasco

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1550

Voltage : 115/208-230 V

Phase : Single

Frame : 42

Mounting : Ring / Stud Mount

  • Horsepower :1/10
  • Voltage :115/208-230
  • Amps :2.7/1.4
  • RPM :1550
  • Frequency :60 Hz
  • "C" Dim. :8.49"
  • Enclosure :Open Air Over
  • Shaft Dim. :3/8" x 3.15"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :3.3"
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Thermal
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :9
  • Reference : Fasco 7174-2575
