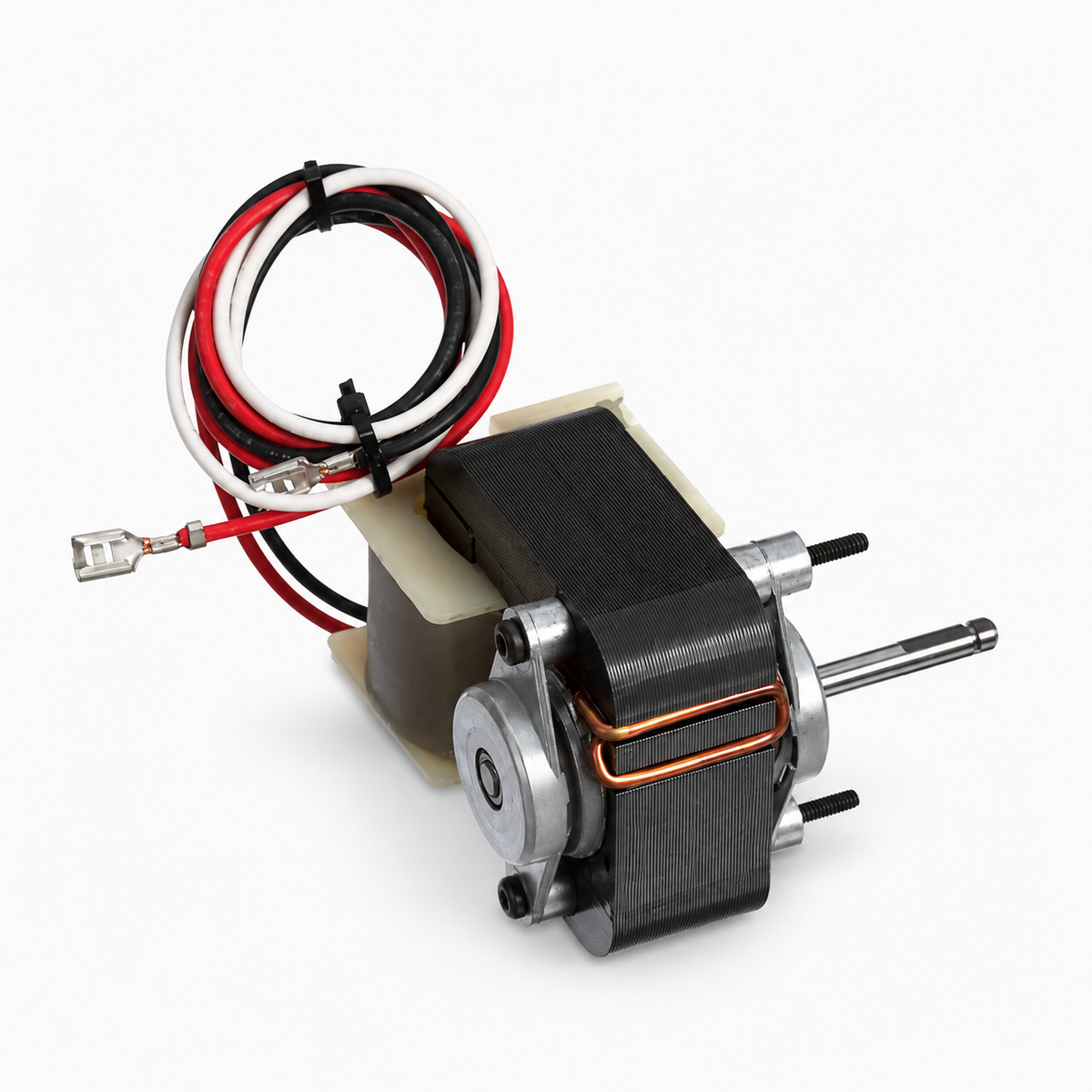

Fasco C Frame Motors (HVAC/R) K683 - 1/100 HP - 240 V - 3000 RPM - Single phase

Fasco C Frame Motors (HVAC/R) K683 - 1/100 HP - 240 V - 3000 RPM - Single phase

$78.00 CAD
$78.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : K683

Brand : Fasco

HVAC : C Frame Motors (HVAC/R)

Horsepower : 1/100 HP

RPM : 3000

Voltage : 240 V

Phase : Single

Frame : C Frame

Mounting : C Frame Mount

• HP: 1/100
• Voltage: 240
• RPM: 3000
• Current (Amp): 0.30
• Phase: 1
• Rotation: Clockwise Shaft End
• Frame: Skeleton
• Enclosure: Open
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 3/16 in X 1.750 in
• Frequency: 60Hz
• Frame Length: 1.875 in
• Bearings: Sleeve
• Features: class b insulation, 12 in leads with 0.5 in strip, extended studs opposite shaft end, thermally protected, one-shot fuse
• References: R3670 R610 B517 C01683
