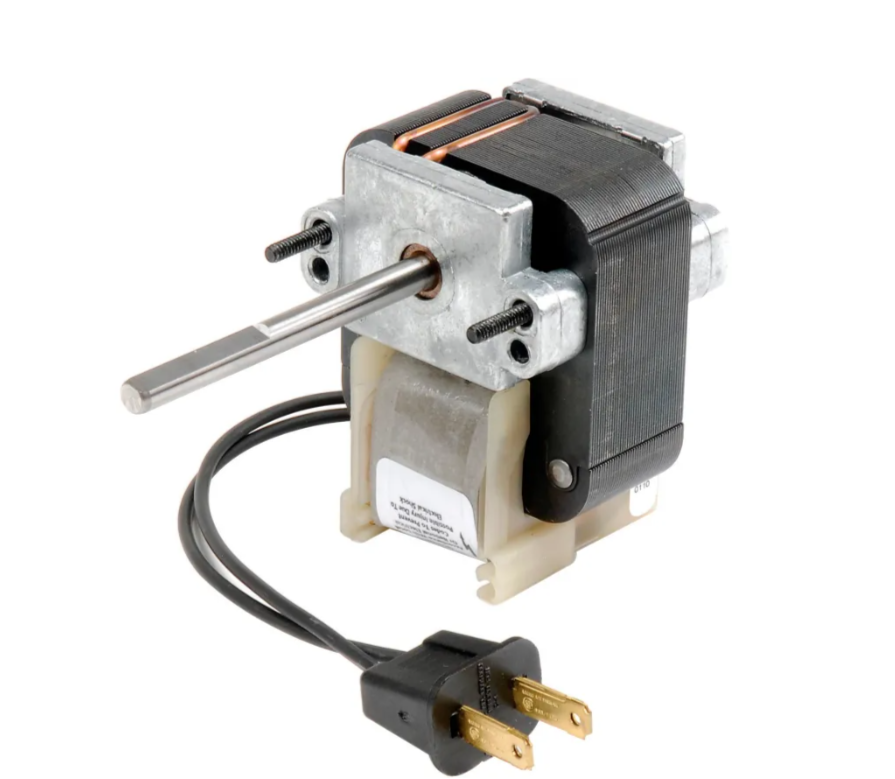

Fasco C Frame Motors (HVAC/R) K611 - 1/100 HP - 120 V - 3000 RPM - Single phases

Fasco C Frame Motors (HVAC/R) K611 - 1/100 HP - 120 V - 3000 RPM - Single phases

$79.00 CAD
$79.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : K611

Brand : Fasco

HVAC : C Frame Motors (HVAC/R)

Horsepower : 1/100 HP

RPM : 3000

Voltage : 120 V

Phase : Single

Frame : C Frame

Mounting : C Frame Mount

HP: 1/100
Voltage: 120
RPM: 3000
Current (Amp): 0.63
Phase: 1
Rotation: Counterclockwise Shaft End
Frame: Skeleton
Enclosure: Open
Speeds: 1
Protector: Thermally Protected
Ambient Temp: 40°C
Service Factor: 1.00
Shaft Dimensions: 0.250 in X 2.45 in
Frequency: 60Hz
Frame Length: 1.80 in
Bearings: Sleeve
Features: Class B Insulation, 8.5"/6.5" Leads with Molded Plug, Extended Studs Shaft End, Thermally Protected, One-Shot Fuse
Cross References: Fasco 7158-1214 7102-1269, Rotom R601, 2858-406-001
