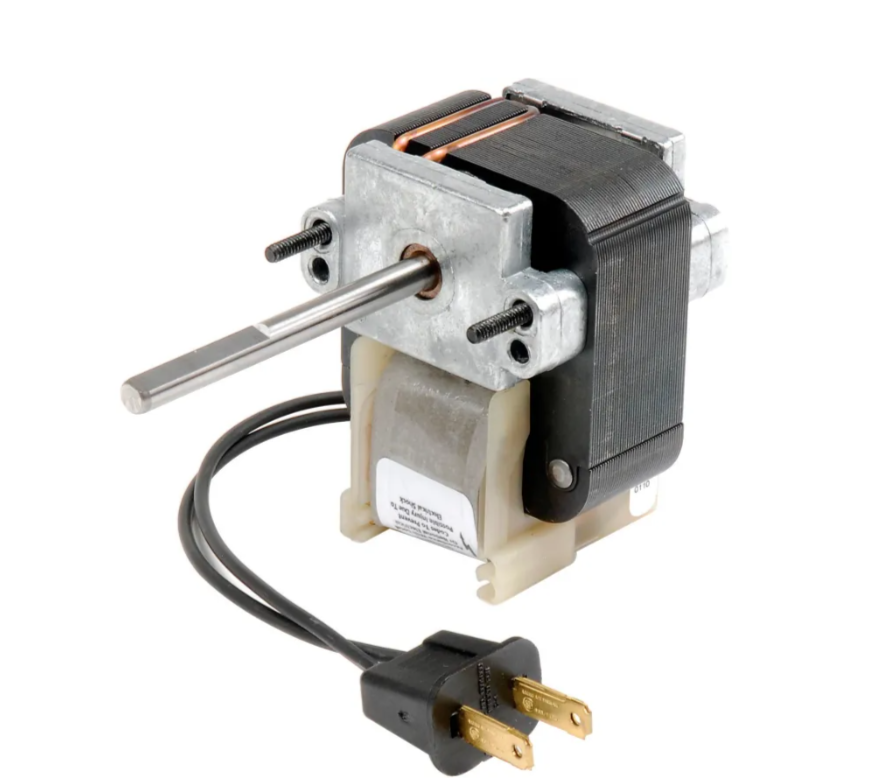

Fasco C Frame Motors (HVAC/R) K102 - 1/500 HP - 120 V - 1100 RPM - Single phase

Fasco C Frame Motors (HVAC/R) K102 - 1/500 HP - 120 V - 1100 RPM - Single phase

$85.00 CAD
$85.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : K102

Brand : Fasco

HVAC : C Frame Motors (HVAC/R)

Horsepower : 1/500 HP

RPM : 1100

Voltage : 120 V

Phase : Single

Frame : C Frame

Mounting : C Frame Mount

Type: Shaded Pole
HP: 1/500
Voltage: 120
RPM: 1100
Current (Amp): 0.57
Phase: 1
Rotation: Clockwise Shaft End
Frame: Skeleton
Enclosure: Open
Speeds: 1
Protector: Thermally Protected
Ambient Temp: 40°C
Service Factor: 1.00
Shaft Dimensions: 0.181 in X 1.50 in
Frequency: 60Hz
Frame Length: 1.94 in
Bearings: Sleeve
Features: Class B Insulation, 8.5"/7.5" Leads with .25" Strip, Extended Studs Opposite Shaft End, Thermally Protected, One-Shot Fuse
Cross References: Fasco 7102-0003 7158-1215 7102-0002 7102-1106
