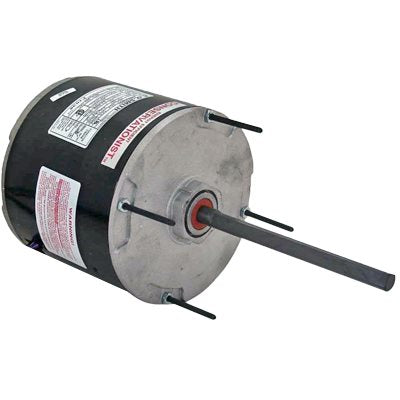

Century Fan & Blower Motors (HVAC/R) F1036SB - 1/3 HP - 208/230 V - 1075 RPM - Single phase

Century Fan & Blower Motors (HVAC/R) F1036SB - 1/3 HP - 208/230 V - 1075 RPM - Single phase

$290.00 CAD
$290.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : F1036SB

Brand : Century

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48Y

Mounting : Belly Band / Stud

  • Horsepower : 1/3
  • Amps : 1.70
  • Frequency : 60/50 Hz
  • Length : 5.11"
  • "C" Dim. : 11.55"
  • Enclosure : Semi-Enclosed
  • Shaft Dim. : 1/2" x 6.44"
  • Type : Permanent Split Capacitor
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 7.5MFD-370V
  • Feature(s) : Class 'B' Insulation, Open Lead End, Thru-Bolts, Hubs Included
  • Weight (lbs.) : 14
  • Reference : A.O. Smith F48AB21A01 F48AD54A01, SS3729 EM3729F 3729E
