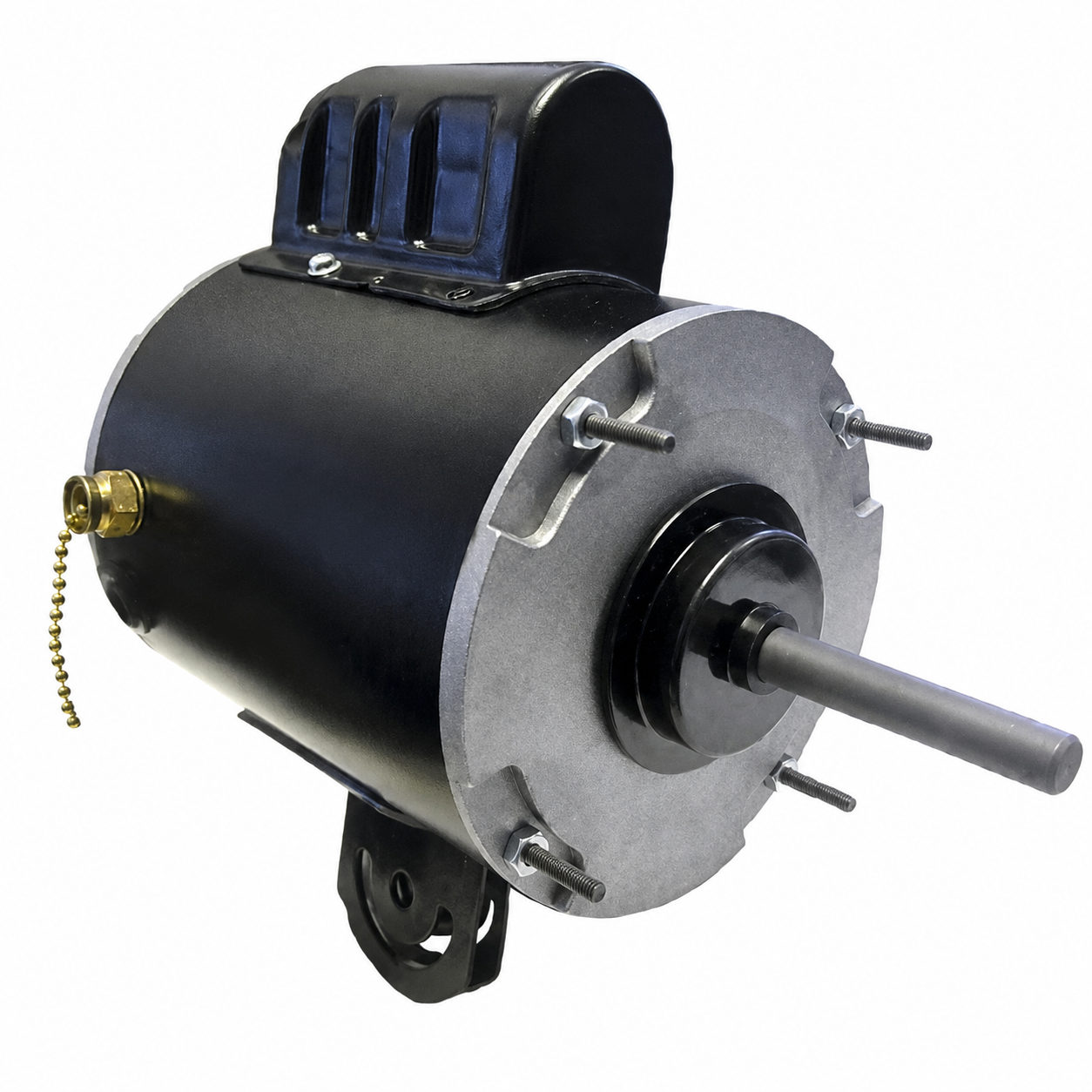

Emotortek Pedestal Fan Motors (HVAC/R) SS486 - 1/4 HP - 115 V - 1100 RPM - Single phase

Emotortek Pedestal Fan Motors (HVAC/R) SS486 - 1/4 HP - 115 V - 1100 RPM - Single phase

$275.00 CAD
$275.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS486

Brand : Emotortek

HVAC : Pedestal Fan Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1100

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Yoke Mount

  • Horsepower :1/4
  • Voltage :115
  • Amps :3.40
  • RPM :1100
  • Frequency :60 Hz
  • Length :6.50"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :1/2” x 3.00”
  • Type :Permanent Split Capacitor
  • Speeds :2
  • Diameter :5.5”
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Phase :1
  • Weight (lbs.) : 17
  • Reference : Century 486 486A, Century 150860 164819, Dayton 4M196 4UX62, Emerson K55HSGMC8305 K55HXGPJ4120 K55HXLGL7160, Fasco 7126-5117, Fasco Catalogue No. D824, Marathon X923, Universal Electric HE3F008 HE3F015 HE3F089 HE3G009 HE3G039 HE3G088 HE3G090 HE3G187 HE3G216 HE3G246 HE3G264 HE3G326 HE3H179 HF3G039 HF3H059, CK48HF10KS03 CK48HF16KS01
  • Feature(s) :Yoke Mount, Extended Thru-Bolts, Pull Chain, 10 ft. Cord & Plug
