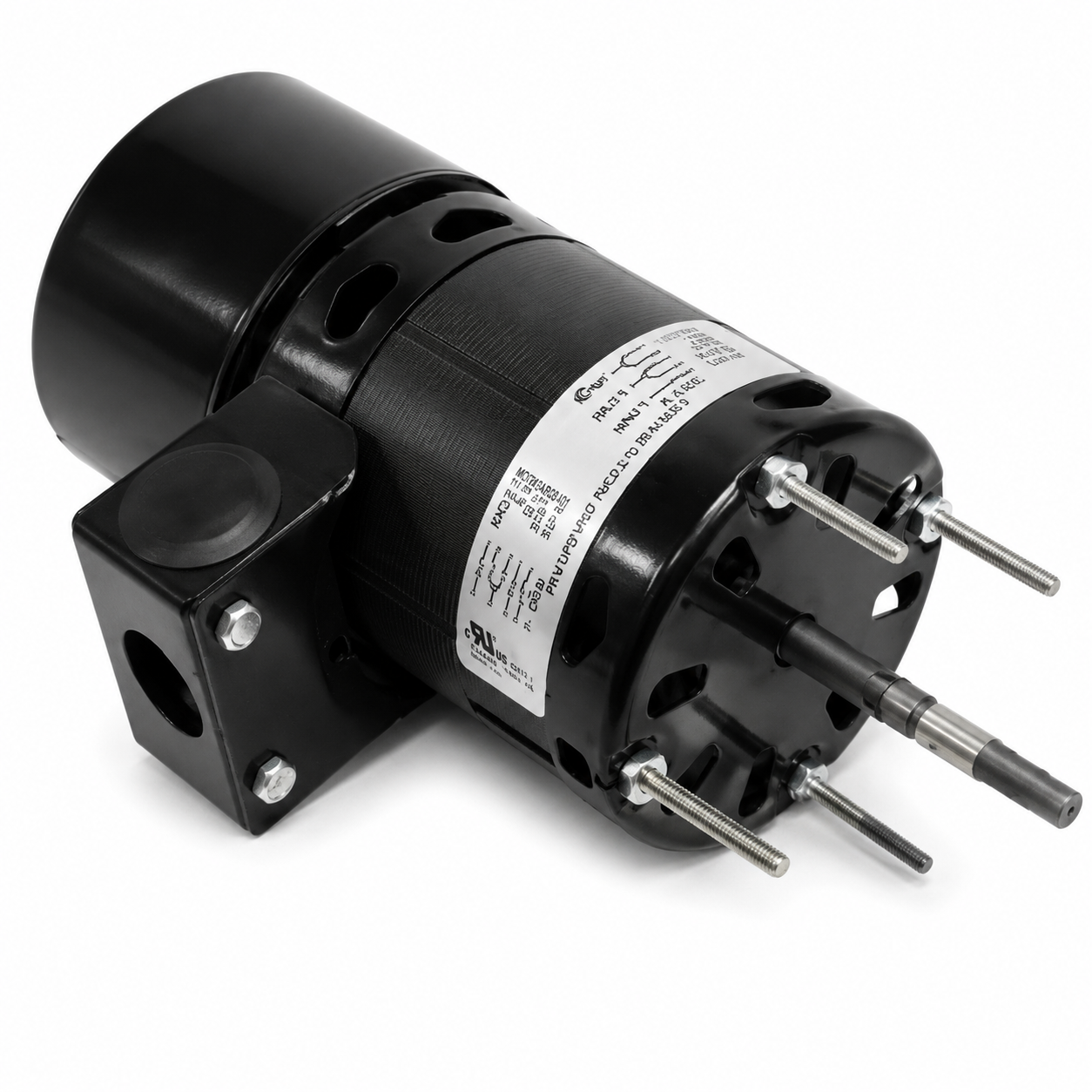

Emotortek OEM Replacement Motors (HVAC/R) UFM653 - 1/12 HP - 230/460 V - 3200 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) UFM653 - 1/12 HP - 230/460 V - 3200 RPM - Single phase

$266.00 CAD
$266.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : UFM653

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/12 HP

RPM : 3200

Voltage : 230/460 V

Phase : Single

Frame : 3.3

Mounting : Stud Mount

  • Horsepower :1/12
  • Voltage :230/460
  • Amps :0.60
  • RPM :3200
  • Frequency :60 Hz
  • Length :6-3/4”
  • Enclosure :Open
  • Shaft Dim. :1/4” x 2-1/4”
  • Type :Shaded Pole
  • Diameter :3.3”
  • Bearings :Ball
  • Rotation :CCWSE
  • Protector :Thermally Protected
  • Ambient Temp. :40°C
  • Feature(s) :Class ‘B’ Insulation, Conduit Box – 1/4” to 5/16” Bushing
  • Weight (lbs.) :6
  • Reference : Fasco D653
