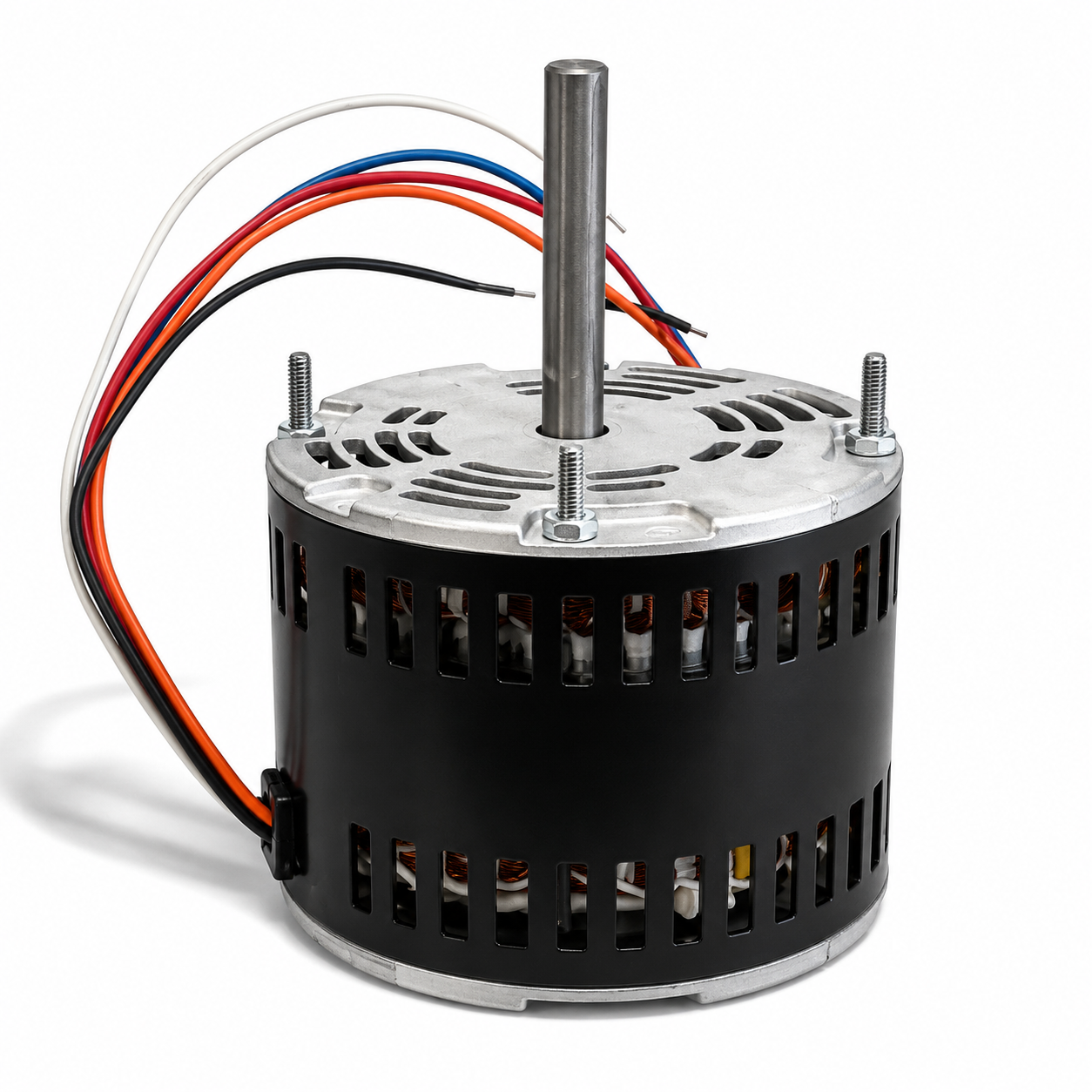

Emotortek OEM Replacement Motors (HVAC/R) SS8550 - 1/6 HP - 115/230 V - 1625 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS8550 - 1/6 HP - 115/230 V - 1625 RPM - Single phase

$231.00 CAD
$231.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS8550

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1625

Voltage : 115/230 V

Phase : Single

Frame : 42Y

Mounting : Thru-Bolt Mount

  • Type : Permanent Split Capacitor
  • HP : 1/6
  • Voltage : 115 / 230
  • RPM : 1625
  • Current (Amp) : 1.90 / 0.96
  • Phase : 1
  • Rotation : Clockwise Shaft End
  • Frame : 42Y
  • Enclosure : Open
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.50 in X 3.00 in
  • Frequency : 60/50Hz
  • Diameter : 5.0 in
  • Frame Length : 3.80 in
  • Bearings : Ball
  • Capacitor Rating : N/A

  • Reference : CK42BS04M01 Fasco 7185-0267 7185-0293 Used on DU12, DR12. 8550 8550A
