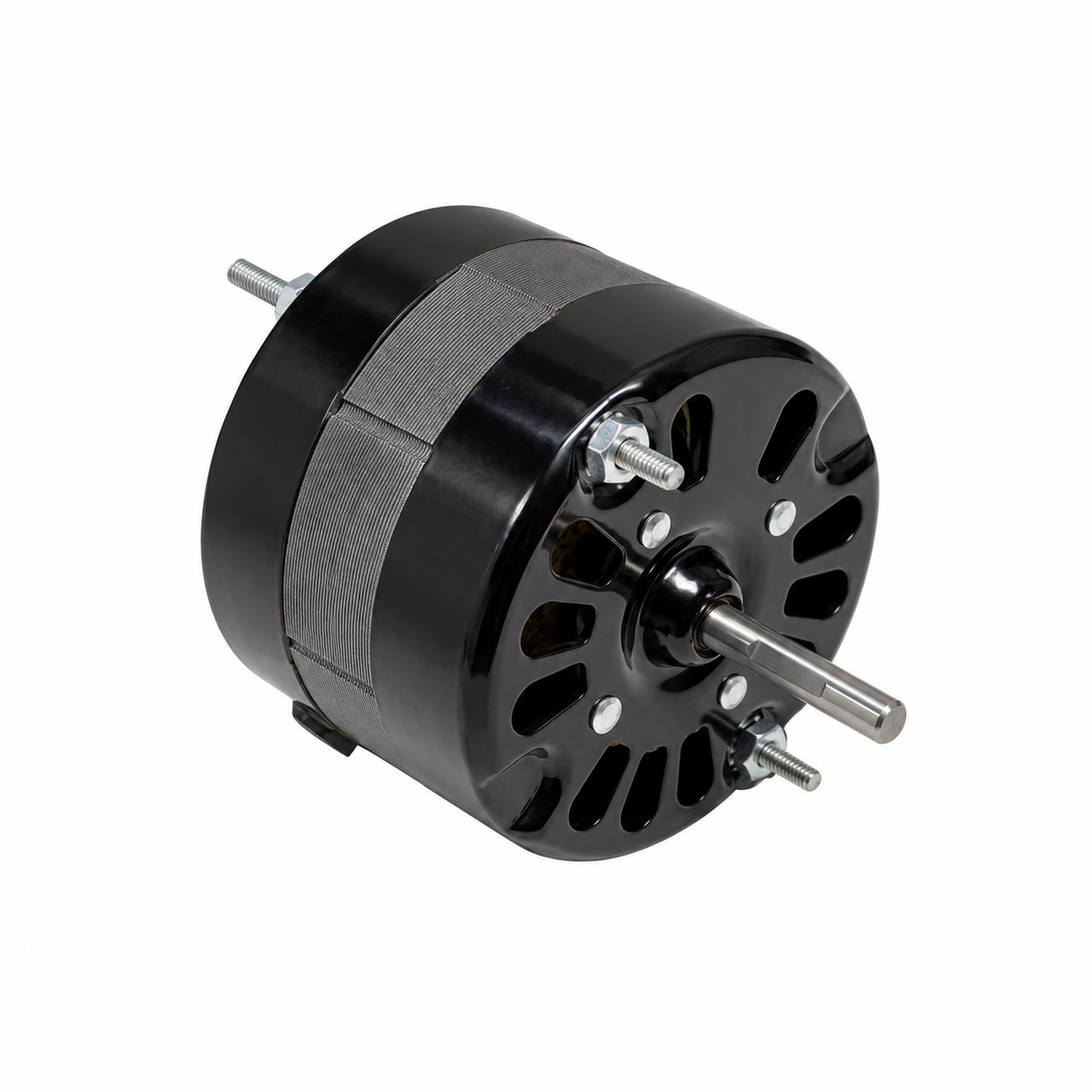

Emotortek OEM Replacement Motors (HVAC/R) SS305 - 1/50 HP - 115 V - 2800 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS305 - 1/50 HP - 115 V - 2800 RPM - Single phase

$84.00 CAD
$84.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS305

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/50 HP

RPM : 2800

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Thru-Bolt Mount

  • Horsepower :1/50
  • Voltage :115
  • Amps :1.00
  • RPM :2800
  • Frequency :60 Hz
  • Length :2-11/32”
  • Enclosure :Open
  • Shaft Dim. :1/4” x 1-1/2”
  • Type :Shaded Pole
  • Diameter :3.3”
  • Bearings :Sleeve
  • Rotation :CCWSE
  • Protector :Thermally Protected
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :9” Cord & Plug, Grooved Shaft
  • Weight (lbs.) :2
  • Reference : Electrohome 19-42-05-16 19-43-04-03 19-43-05-01 19-43-05-04 19-43-05-06 19-43-05-07 19-43-05-11 19-43-05-12 19-43-05-13 19-44-05-03 19-44-05-04 19-44-05-05 19-44-05-06 19-44-05-07 19-44-05-08 19-44-05-09 19-44-05-10 19-44-05-11 19-44-05-12 19-44-05-13 19-44-05-15 19-44-05-16 19-44-05-18 19-44-05-20 19-44-05-21 19-44-05-22 19-52-05-03 19-53-05-03 2810-605-030 2862-405-015 2862-405-017 2862-405-047 2862-405-049 2862-405-066 2862-405-072 2862-405-226 2882-410-306 2882-410-307 2882-410-503 2882-410-505 2882-410-511 2882-410-514 2882-410-515 2882-420-502 2882-420-503 2882-430-501 2882-440-503 2882-440-507 2882-440-508 2882-440-514 2882-520-502 2882-530-501, Emerson F33HFDAT1496, Franklin Bluffton 8211415012 AJ2123A, MacMillan 8211215018 8211215036, Broan Nutone 80695, Rotom R305, Universal Electric AA1C6240 AA1M5469
