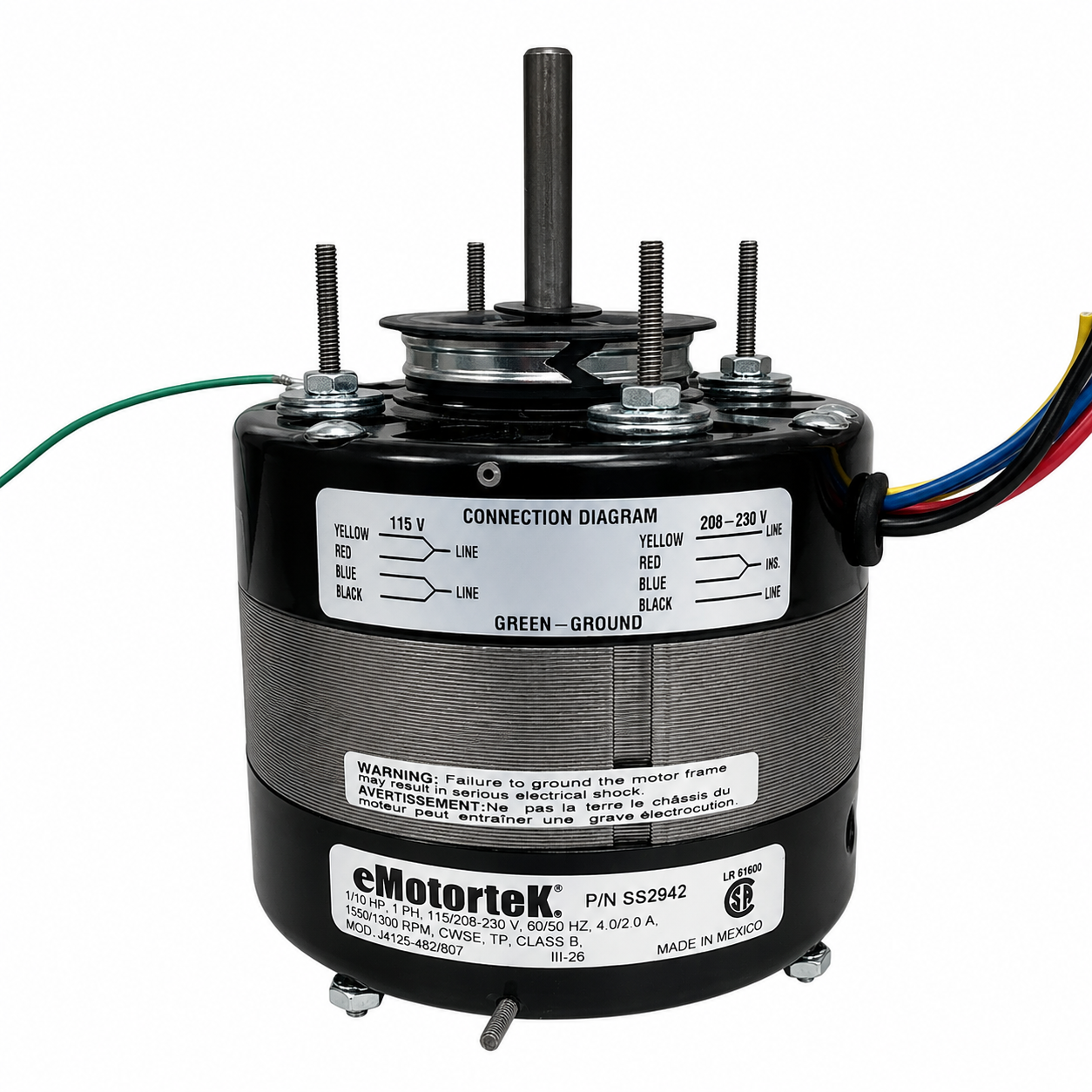

Emotortek OEM Replacement Motors (HVAC/R) SS2942 - 1/10 HP - 115/208-230 V - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS2942 - 1/10 HP - 115/208-230 V - Single phase

$269.00 CAD
$269.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS2942

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1550

Voltage : 115/208-230 V

Phase : Single

Frame : 42

Mounting : Stud Mount

  • Horsepower :1/10
  • Voltage :115/208-230
  • Amps :5.00/2.50
  • RPM :1550
  • Frequency :60 Hz
  • Length :3-7/8”
  • Enclosure :Open
  • Shaft Dim. :3/8” x 2-7/8”
  • Type :Shaded Pole
  • Diameter :5.0”
  • Bearings :Sleeve
  • Rotation :CWSE
  • Protector :Thermally Protected
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Includes Cushion Rings, Base, Clips, 3/8” to 1/2” Bushing, 4 Studs on 3.50” B.C.D.
  • Weight (lbs.) :10

  • Reference : A.O. Smith 326P118 326P190 RF4400, Emerson F48HXBPC109 F48HXPG1092 F48ZZR1725, Emerson Catalogue No. 721, General Electric 5KSP21DG1191 5KSP21DG906 5KSP21FG1039 5KSP21FG948 5KSP29DK1682 5KSP29FG2626 5KSP29FG3203 5KSP29FG3204, Fasco D06123, General Electric Catalogue No. 2142, Rotom R2942, Universal Electric DA2F077, Universal Stock No. 612 614
