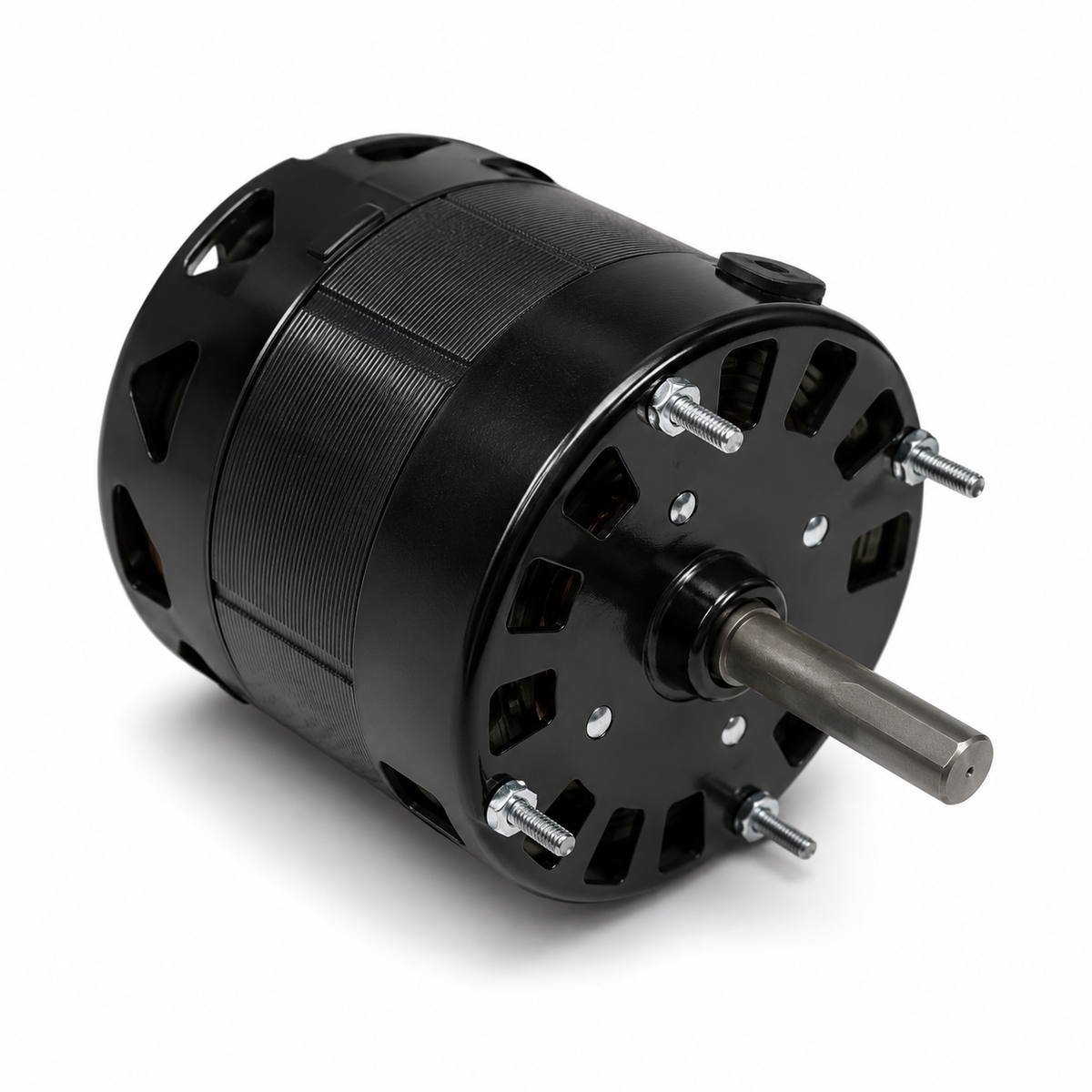

Emotortek OEM Replacement Motors (HVAC/R) SS2603 - 1/35 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS2603 - 1/35 HP - 115 V - 1550 RPM - Single phase

$209.00 CAD
$209.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS2603

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/35 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 4.1

Mounting : Thru-Bolt Mount

  • Horsepower :1/35
  • Voltage :115
  • Amps :1.15
  • RPM :1550
  • Frequency :60 Hz
  • Length :3-3/16”
  • Enclosure :Open
  • Shaft Dim. :1/2” x 2-1/8”
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :4.1”
  • Bearings :Sleeve
  • Rotation :CCWSE
  • Protector :Thermally Protected
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :12” Cord & Plug, Hex Hubs
  • Weight (lbs.) :6
  • Reference : Fasco 7108-6747 7108-7135, Franklin 8413615011 8413617060 8413817120 8413617020 8413815005 8413815020, MacMillan AO20B2891, Rotom R2603, Universal Electric CA2F074 CA2F074N CA2F100 CA2F100N CA2G179 CA2G179N CA2G199 CA2G199N, OmniDrive 8413815020, YDK94/26-4-32A1, CM260, Reversomatic DK260 DB200
