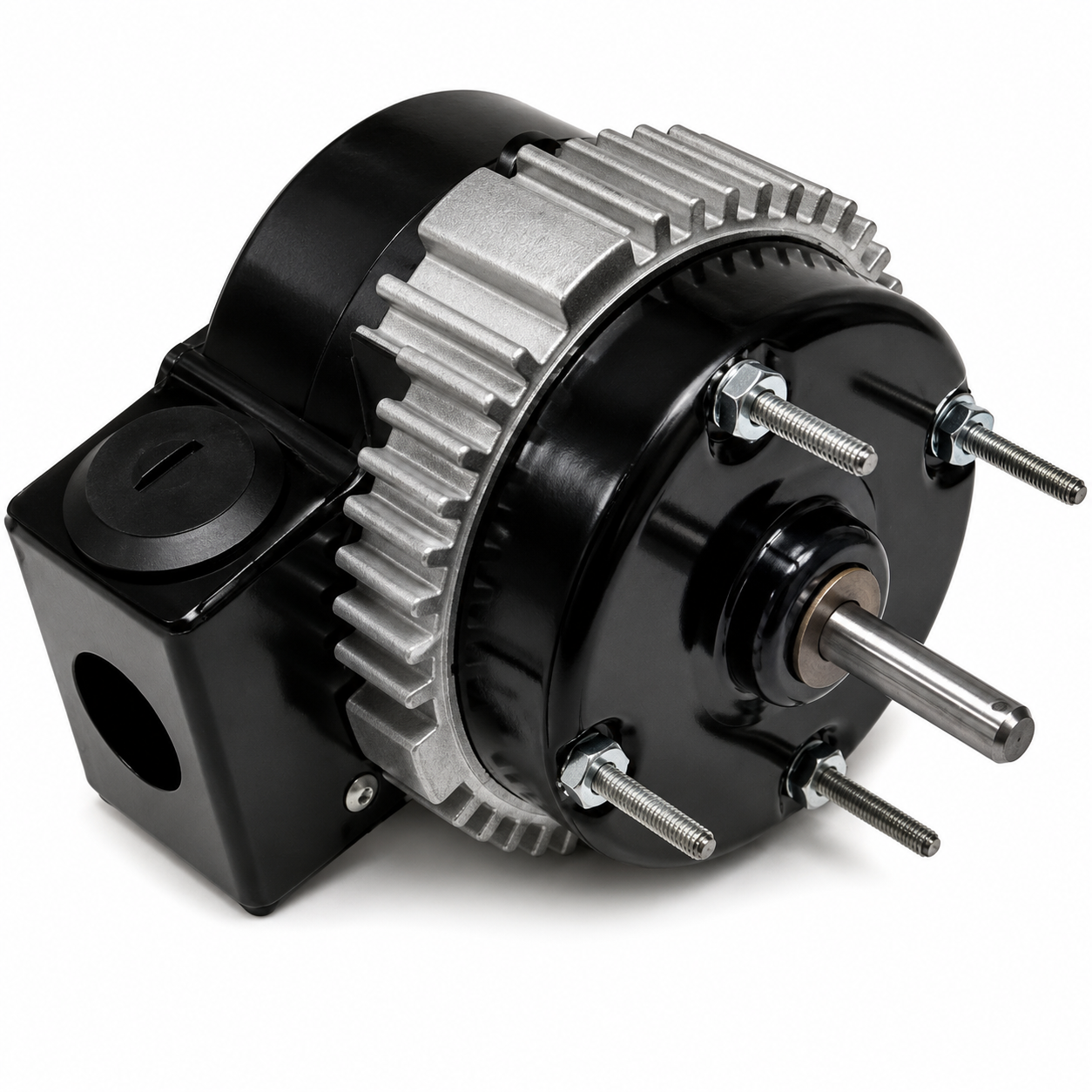

Emotortek OEM Replacement Motors (HVAC/R) P1000-B4 - 1/20 HP - 115 V - 1600 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) P1000-B4 - 1/20 HP - 115 V - 1600 RPM - Single phase

$204.00 CAD
$204.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : P1000-B4

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1600

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Thru-Bolt Mount

  • Horsepower :1/20
  • Voltage :115
  • Amps :1.70
  • RPM :1600/2
  • Frequency :60 Hz
  • Length :2-7/8”
  • Enclosure :Totally Enclosed
  • Shaft Dim. :5/16” x 1-3/4”
  • Type :Shaded Pole
  • Diameter :3.3”
  • Bearings :Ball
  • Rotation :CWSE
  • Protector :Thermally Protected
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :4
  • Reference : Electrohome 2868-513-091 2868-513-125, Franklin 8213917501, Leader Fan P1000-B4, MacMillan 8223915123, Rotom R400, Universal Electric JB2R112, OmniDrive 8223915123, OmniDrive S1121 S1194, SF400719F, 013025
