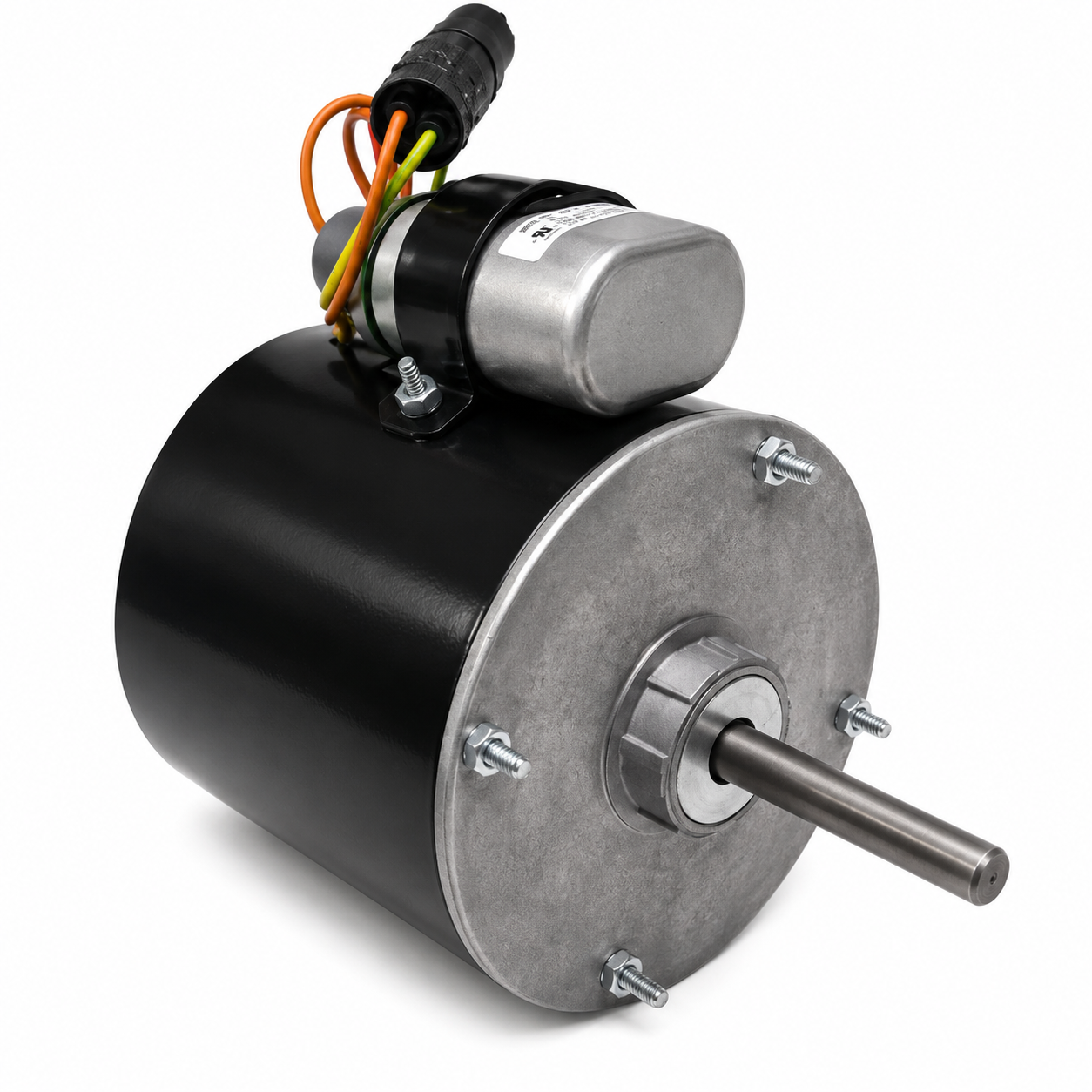

Emotortek OEM Replacement Motors (HVAC/R) J055 - 1/6 HP - 575 V - 1650 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) J055 - 1/6 HP - 575 V - 1650 RPM - Single phase

$301.00 CAD
$301.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : J055

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1650

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower :1/6
  • Voltage :575
  • Amps :0.80
  • RPM :1650
  • Frequency :60 Hz
  • Enclosure :Totally Enclosed, Air Over
  • Shaft Dim. :1/2" x 3.20"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Phase :1
  • Feature(s) :Thru-Bolts, Capacitor Included
  • Weight (lbs.) :17

  • Reference : Copeland 050-0266-02, Emerson K55ZZCWD6661 K55ZZRCR1858, General Electric 5KSP39FG6051 5KSP39PG6051T 5KSP39KG6897 5KCP39BGH930BS, Keeprite 1042140, Marathon 48A170246 48A17T11012, OmniDrive 448-482/19 Rotom R30575 30575, FM001, Universal Electric HE2J049 HF2J038 HF2J055, 106575
