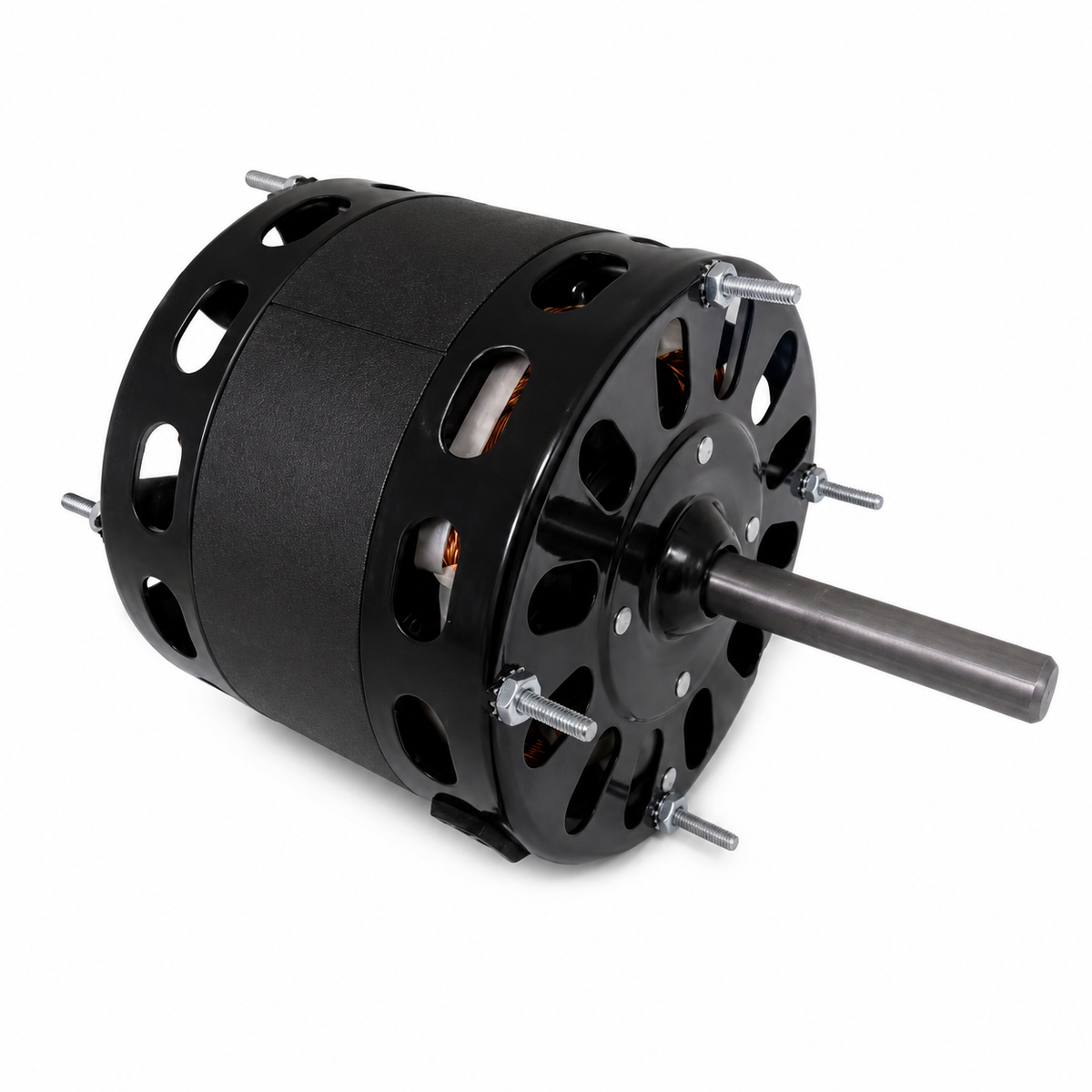

Emotortek OEM Replacement Motors (HVAC/R) J038 - 1/8 H - 600 V - 1550 RPM -Single phase

Emotortek OEM Replacement Motors (HVAC/R) J038 - 1/8 H - 600 V - 1550 RPM -Single phase

$395.00 CAD
$395.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : J038

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/8 HP

RPM : 1550

Voltage : 600 V

Phase : Single

Frame : 42

Mounting : Thru-Bolt Mount

  • Horsepower :1/8
  • Voltage :600
  • Amps :0.75
  • RPM :1550
  • Frequency :60 Hz
  • Length :4-1/2"
  • Enclosure :Open
  • Shaft Dim. :1/2" x 7-23/32"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :5"
  • Frame :42
  • Bearings :Sleeve
  • Rotation :CCWSE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, No Base, Mounting accessories packaged with motor, Thru-Bolts Included
  • Weight (lbs.) :11

  • Reference : Emerson K48ZZNDL1166, Federal Pioneer L8204A9, OmniDrive H4125-482/55, Universal Electric DA2J038 DA2J038K
