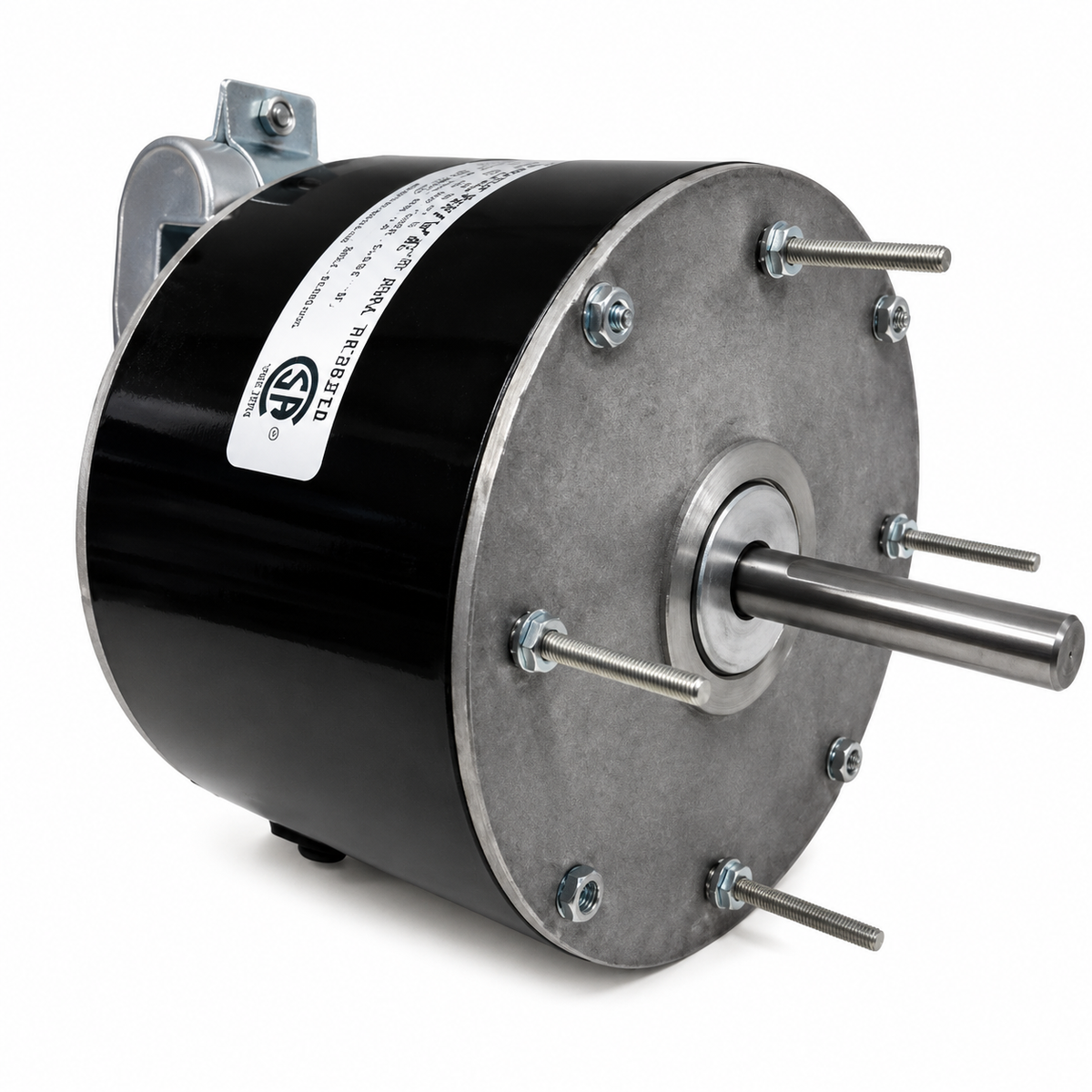

Emotortek OEM Replacement Motors (HVAC/R) 9F30216 - 1/8 HP - 115 V - 1140 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 9F30216 - 1/8 HP - 115 V - 1140 RPM - Single phase

$365.00 CAD
$365.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 9F30216

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/8 HP

RPM : 1440

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower :1/8
  • Voltage :115
  • Amps :2.10
  • RPM :1440
  • Frequency :60 Hz
  • Length :3.85"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :1/2" x 2.80"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :CWSE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :10MFD-370VAC
  • Feature(s) :Class 'B' Insulation
  • Weight (lbs.) :10
  • Reference : Modine 9F30212 9F30216, FP 53673, Replacement Motor, OEM # A0824A3684, E62862, LR43381, E62788, E62815, 9F30216A0391
    Fits These Modine Brand Models : HD125 After 5/07 - Direct Spark Ignition, HDC125, HDS125 After 5/07 - Direct Spark Ignition, PTC55, PTC65, PTC85
