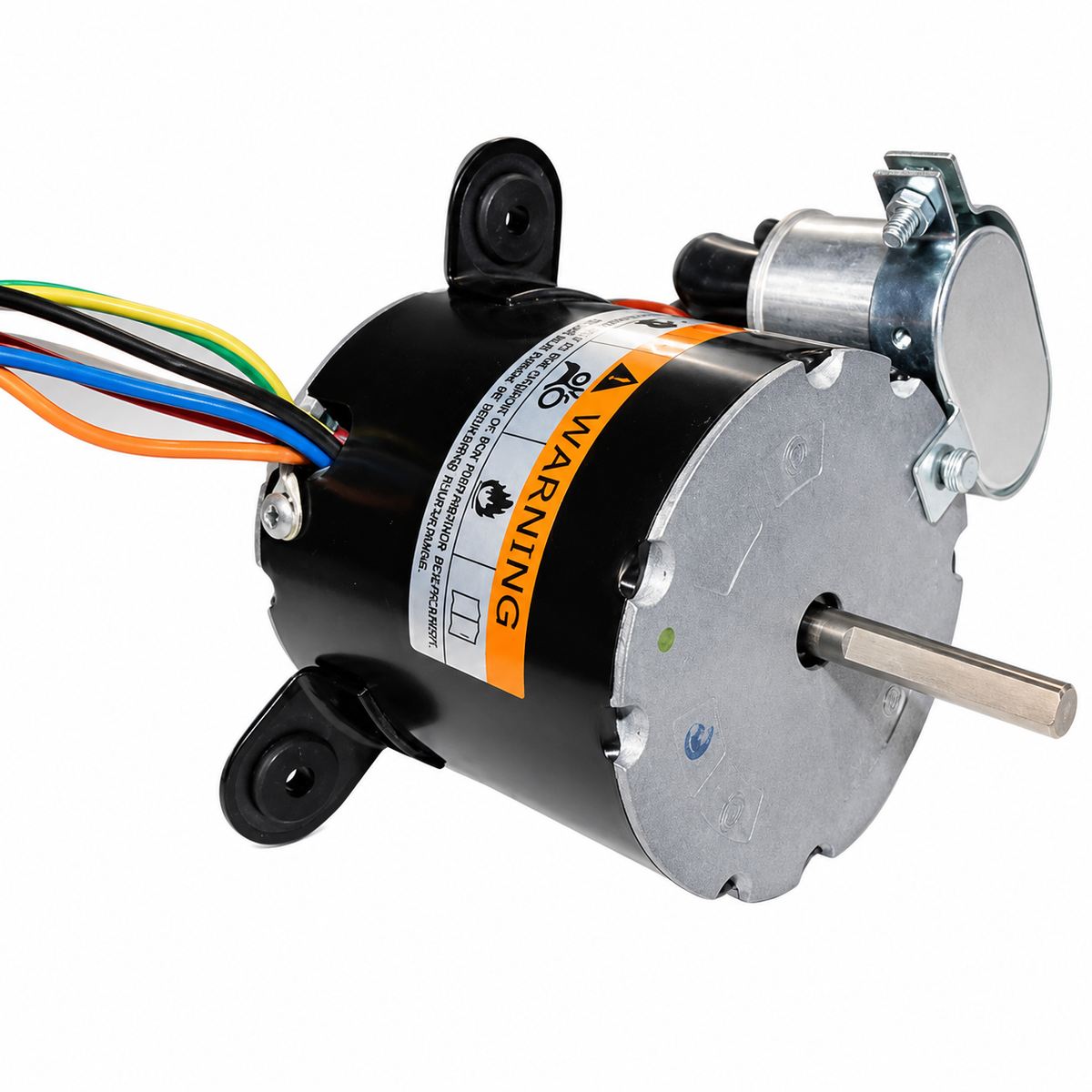

Emotortek OEM Replacement Motors (HVAC/R) 9654 - 1/20 HP - 115/230 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 9654 - 1/20 HP - 115/230 V - 1550 RPM - Single phase

$178.00 CAD
$178.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 9654

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1550

Voltage : 115/230 V

Phase : Single

Frame : 3.3

Mounting : Lug Mount

  • Horsepower :1/20
  • Voltage :115/208-230
  • Amps :1.40-0.76
  • RPM :1550
  • Frequency :60 Hz
  • Length :3-1/8"
  • Enclosure :Totally Enclosed, Air Over
  • Shaft Dim. :5/16" x 1-5/8"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :3.3"
  • Bearings :Ball
  • Rotation :CWSE
  • Protector :Automatic
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :3 Lugs, Hubs
  • Weight (lbs.) :4
  • Reference : Fasco D1189
