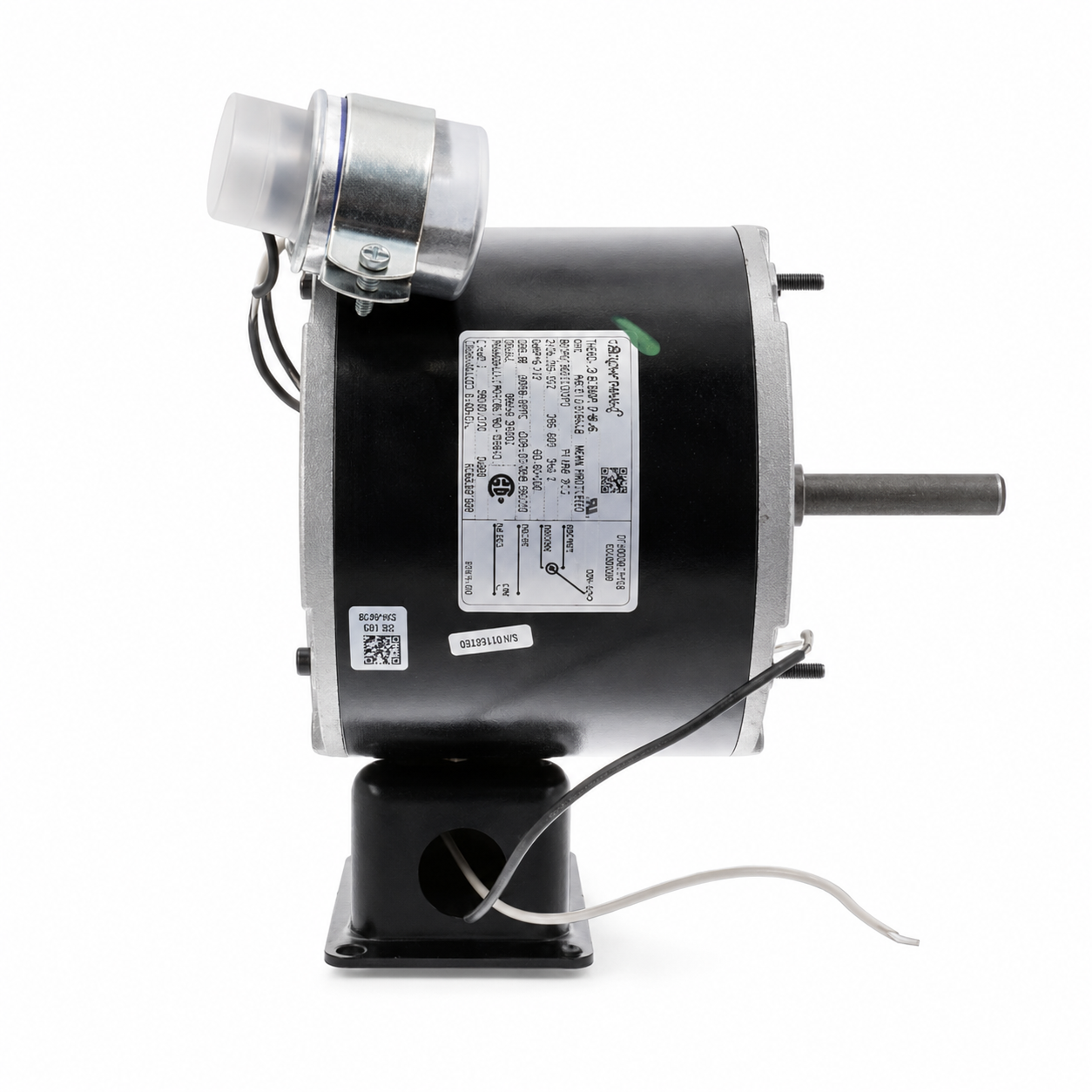

Emotortek OEM Replacement Motors (HVAC/R) 60076 - 1/6 HP - 115 V - 1625 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 60076 - 1/6 HP - 115 V - 1625 RPM - Single phase

$489.00 CAD
$489.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 60076

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1300

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Type : Permanent Split Capacitor
  • HP : 1/6
  • Voltage : 115
  • RPM : 1625 / 1350
  • Current (Amp) : 1.90
  • Phase : 1
  • Rotation : Counterclockwise Lead End
  • Frame : 48Y
  • Enclosure : Semi Enclosed
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.500 in X 2.75 in
  • Frequency : 60/50Hz
  • Diameter : 5.5 in
  • Frame Length : 4.25 in
  • Bearings : N/A
  • Capacitor Rating : 3-370
  • Reference : 60076-0 60076, A.O.Smith 323P764, OmniDrive 448-482/100
