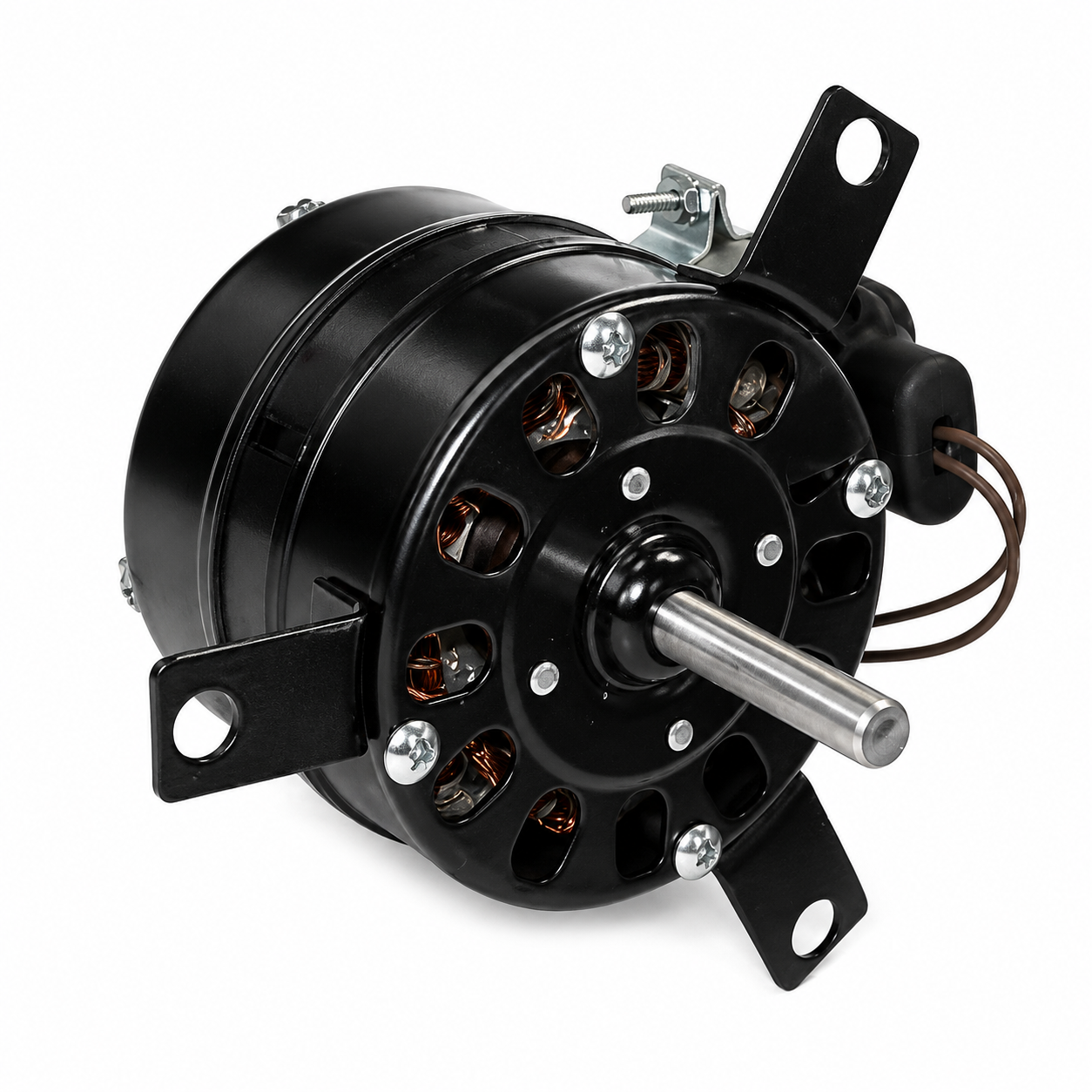

Emotortek OEM Replacement Motors (HVAC/R) 30080135 - 1/10 HP - 120 V - 1050 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 30080135 - 1/10 HP - 120 V - 1050 RPM - Single phase

$242.00 CAD
$242.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 30080135

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1050

Voltage : 120 V

Phase : Single

Frame : 4.4

Mounting : Lug Mount

  • Horsepower :1/10
  • Voltage :120
  • Amps :1.80
  • RPM :1050
  • Frequency :60 Hz
  • Length :3-1/2”
  • Enclosure :Open
  • Shaft Dim. :1/2” x 2-3/8”
  • Type :Permanent Split Capacitor
  • Diameter :4.4”
  • Bearings :Sleeve
  • Rotation :CWSE
  • Protector :Thermally Protected
  • Feature(s) :Special Plug
  • Weight (lbs.) :7
  • Reference :R2698, 30080126, 9649 , 1172864 26715037537 30080109 30080114 30080126 30080135 3008035S 4M248 7151-3160 99080178 99-08-0178 99080178E A081282552 A0812B2552 AP5611313 D1087 DA3E278 DA3E278N D09649
