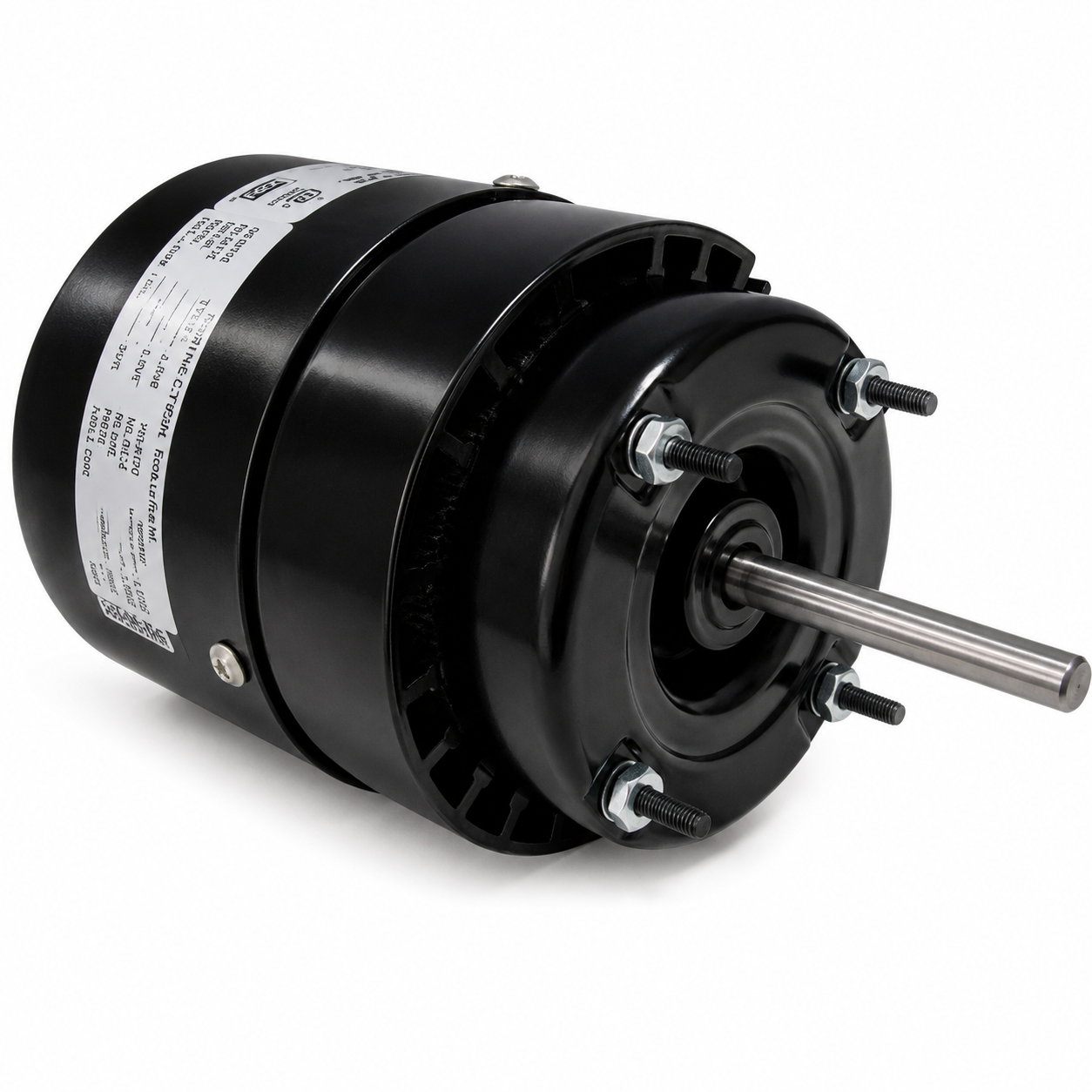

Emotortek OEM Replacement Motors (HVAC/R) SS419 - 1/20 HP - 115/230 V - 1500 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS419 - 1/20 HP - 115/230 V - 1500 RPM - Single phase

$106.00 CAD
$106.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS419

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1500

Voltage : 115/230 V

Phase : Single

Frame : 3.3

Mounting : Thru-Bolt Mount

  • Horsepower :1/20
  • Voltage :115/230
  • Amps :2.20/1.10
  • RPM :1300/1500
  • Frequency :50/60 Hz
  • Length :4.70"
  • "C" Dim. :6.90"
  • Enclosure :Totally Enclosed Fan Cooled
  • Shaft Dim. :5/16" x 2.20"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :3.3"
  • Bearings :Ball
  • Rotation :CCWSE
  • Protector :Thermally Protected
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Thru-Bolts
  • Weight (lbs.) :5.2

  • Reference : A.O.Smith 419, Fasco 7173-1926 D235, Franklin 80176, OmniDrive 8214315126 B33B502VB-08, Rotom R2-R419 R475
