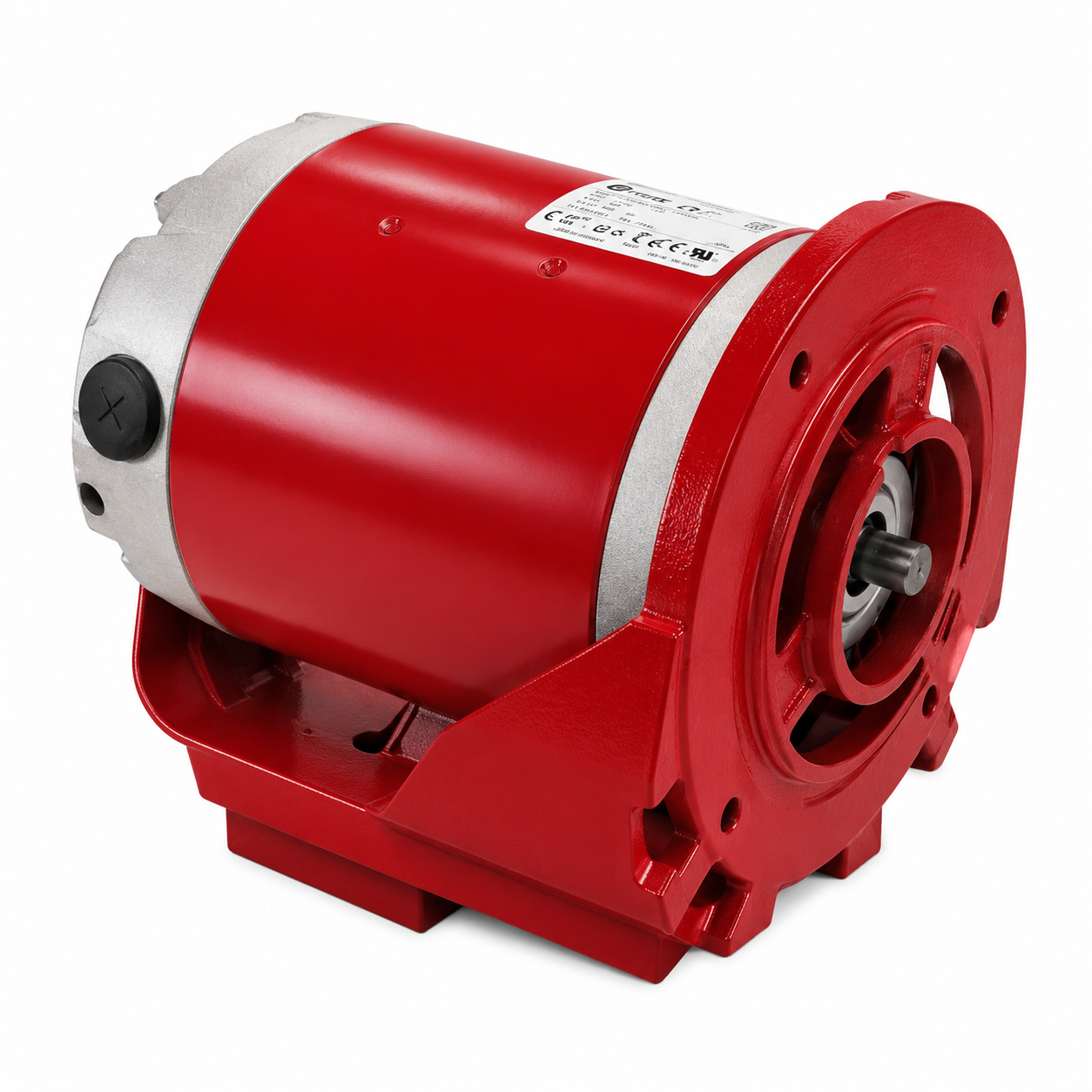

Emotortek Motors Circulator Pump (HVAC/R) SS1462 - 3/4 HP - 115/208-230 V - 1800 RPM - Single phase

Emotortek Motors Circulator Pump (HVAC/R) SS1462 - 3/4 HP - 115/208-230 V - 1800 RPM - Single phase

$569.00 CAD
$569.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS1462

Brand : Emotortek

HVAC : Motors Circulator Pump (HVAC/R)

Horsepower : 3/4 HP

RPM : 1800

Voltage : 115/208-230 V

Phase : Single

Frame : 56Y

Mounting : Bracket Mount

  • Horsepower :3/4
  • Voltage :115-208/230
  • Amps :8.20/4.70-4.20
  • RPM :1800
  • Frequency :60 Hz
  • Length :8-7/32"
  • "C" Dim. :10.00"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :5/8" x 1-1/2"
  • Type :Single Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Efficiency :75.7% (NEMA Premium)
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.50
  • Phase :1
  • Ambient Temp. :50°C
  • Feature(s) :Mounting Bracket, Class "B" Insulation
  • Weight (lbs.) :33

    Reference : A.O. Smith C250, Dayton 4UE18, Emerson T055TJN1239014B 3261, Marathon 56A17D70 56B17D1108, Rotom R1462
