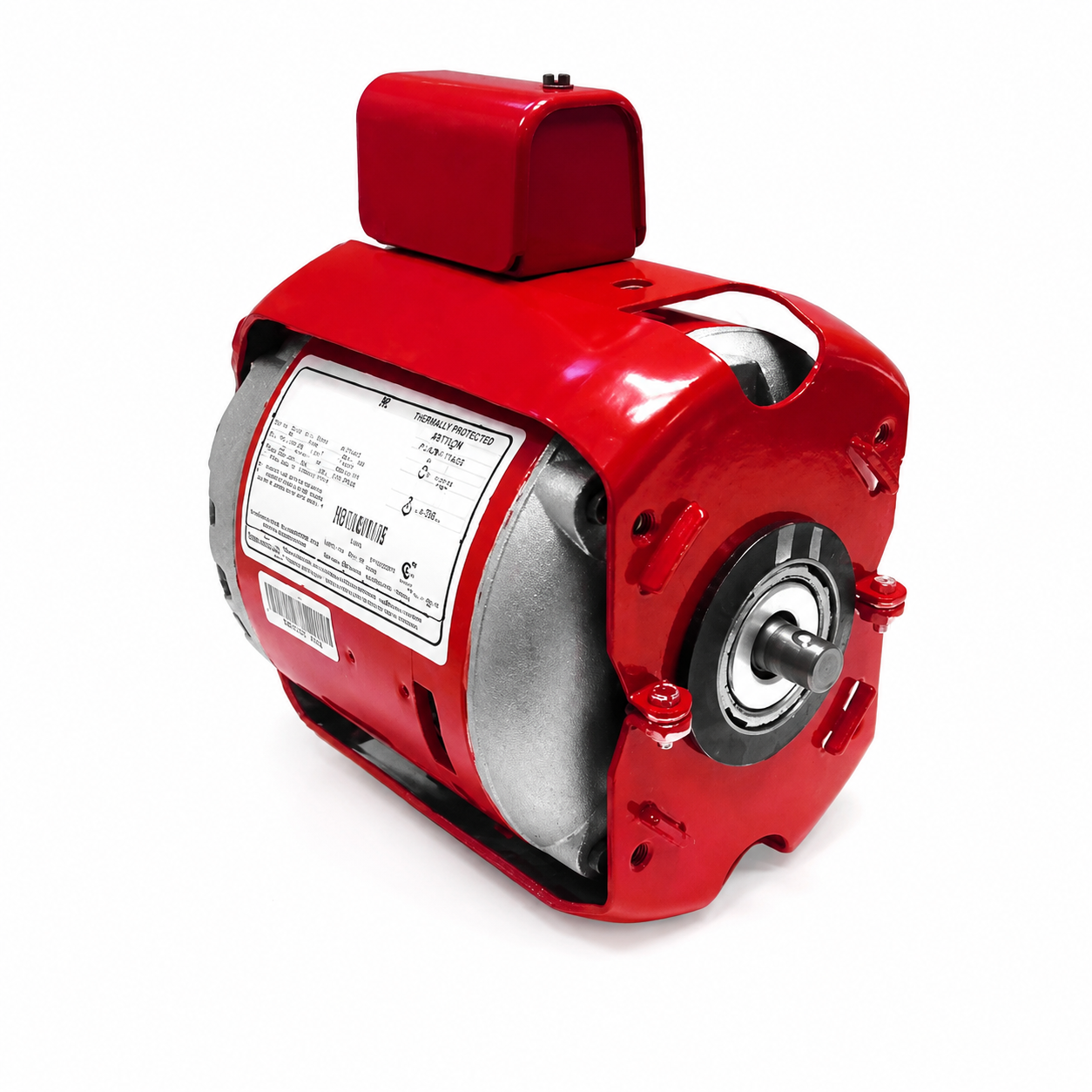

Emotortek Motors Circulator Pump (HVAC/R) SS1355 - 1/6 HP - 115 V - 1800 RPM - Single phase

Emotortek Motors Circulator Pump (HVAC/R) SS1355 - 1/6 HP - 115 V - 1800 RPM - Single phase

$341.00 CAD
$341.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS1355

Brand : Emotortek

HVAC : Motors Circulator Pump (HVAC/R)

Horsepower : 1/6 HP

RPM : 1800

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Bracket Mount

  • Horsepower :1/6
  • Voltage :115
  • Amps :3.80
  • RPM :1800
  • Frequency :60 Hz
  • Length :6-15/16"
  • "C" Dim. :7-7/8"
  • Enclosure :Open Drip-Proof
  • Type :Single Phase
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Efficiency :51.4% (NEMA Premium)
  • Bearings :Sleeve
  • Rotation :CWSE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :50°C
  • Feature(s) :Mounting Bracket, Class "B" Insulation
  • Weight (lbs.) :15
  • Reference : A.O. Smith S48AA21A01 S48AA33A01 HW2014B1, Dayton 4UE12, Emerson SO55PL7645011B, Emerson Catalogue No. 3256 3740, Marathon 48S17D1265, Rotom R1355, Universal Electric HG2E011 HG2N010 940 941
