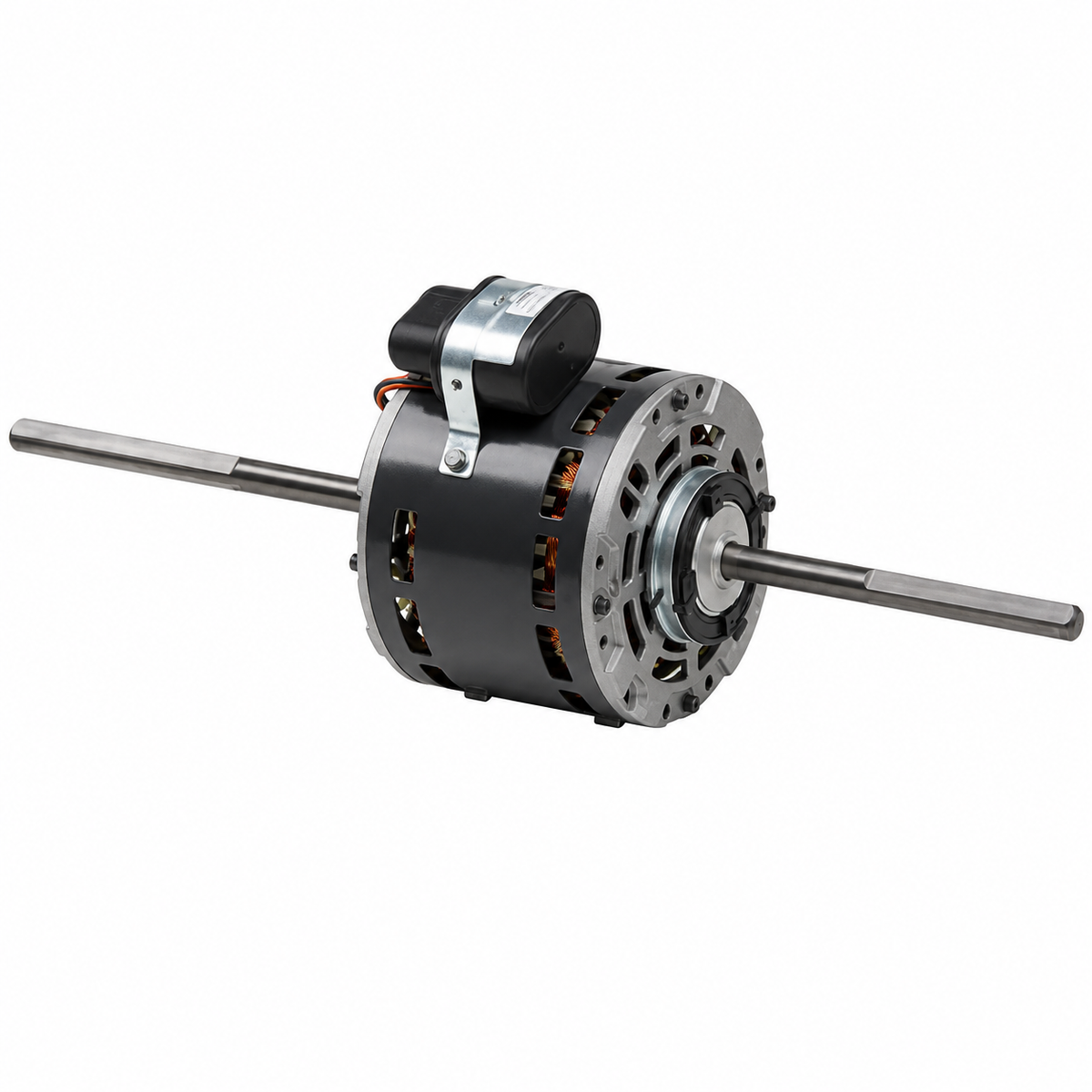

Emotortek Fan Coil Motors (HVAC/R) SS680 - 1/8 HP - 115 V - 775 RPM - Single phase

Emotortek Fan Coil Motors (HVAC/R) SS680 - 1/8 HP - 115 V - 775 RPM - Single phase

$348.00 CAD
$348.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS680

Brand : Emotortek

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/8 HP

RPM : 775

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Ring / Stud Mount

  • Horsepower :1/8
  • Voltage :115
  • Amps :1.65
  • RPM :775
  • Frequency :60 HZ
  • "C" Dim. :28"
  • Enclosure :Open
  • Shaft Dim. :10.796" x 1/2" x 11.55"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CCWLE
  • Protector :AUTO
  • Phase :1
  • Capacitor Rating :5 mfd @ 370 volt
  • Feature(s) :Hub or Stud Mount, With Capacitor & Mounting Kit
  • Weight (lbs.) :17
  • Reference : Century 680A, PEMS 680P
