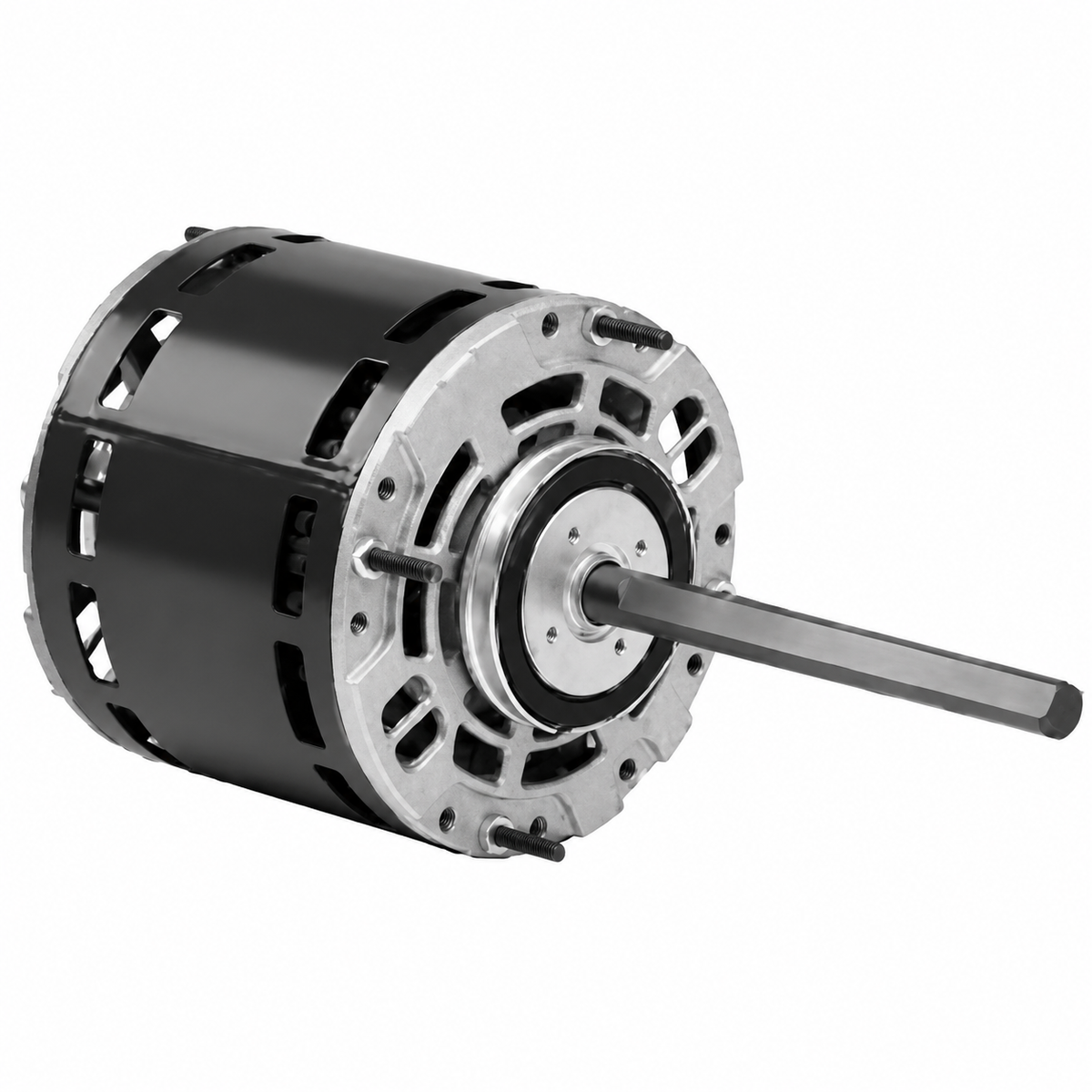

US Motors Fan & Blower Motors (HVAC/R) 1390 - 1/4 HP - 115 V - 1050 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1390 - 1/4 HP - 115 V - 1050 RPM - Single phase

$284.00 CAD
$284.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1390

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1050

Voltage : 115 V

Phase : Single

Frame : 42Y

Mounting : Ring / Stud Mount

  • Type : Permanent Split Capacitor
  • HP : 1/4
  • Voltage : 115
  • RPM : 1050
  • Current (Amp) : 2.80
  • Phase : 1
  • Rotation : Reversible
  • Frame : 42Y
  • Enclosure : Open Air Over
  • Speeds : 3
  • Protector : Automatic
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 0.50 in X 4.34 in
  • Frequency : 60Hz
  • Diameter : 5.0 in
  • Frame Length : 9.70 in
  • Bearings : Self-Align
  • Capacitor Rating : 7.5-370
  • Features : Class B Insulation, Extended Bolts Shaft End, 33" Leads, 1/2" Diameter Shaft With Flat, Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
    Cross References : A.O.Smith Century 390 BL6505, Rotom R2390, Emerson K48HXS TZ3519 K048STZ3519012B, F42E61A13
