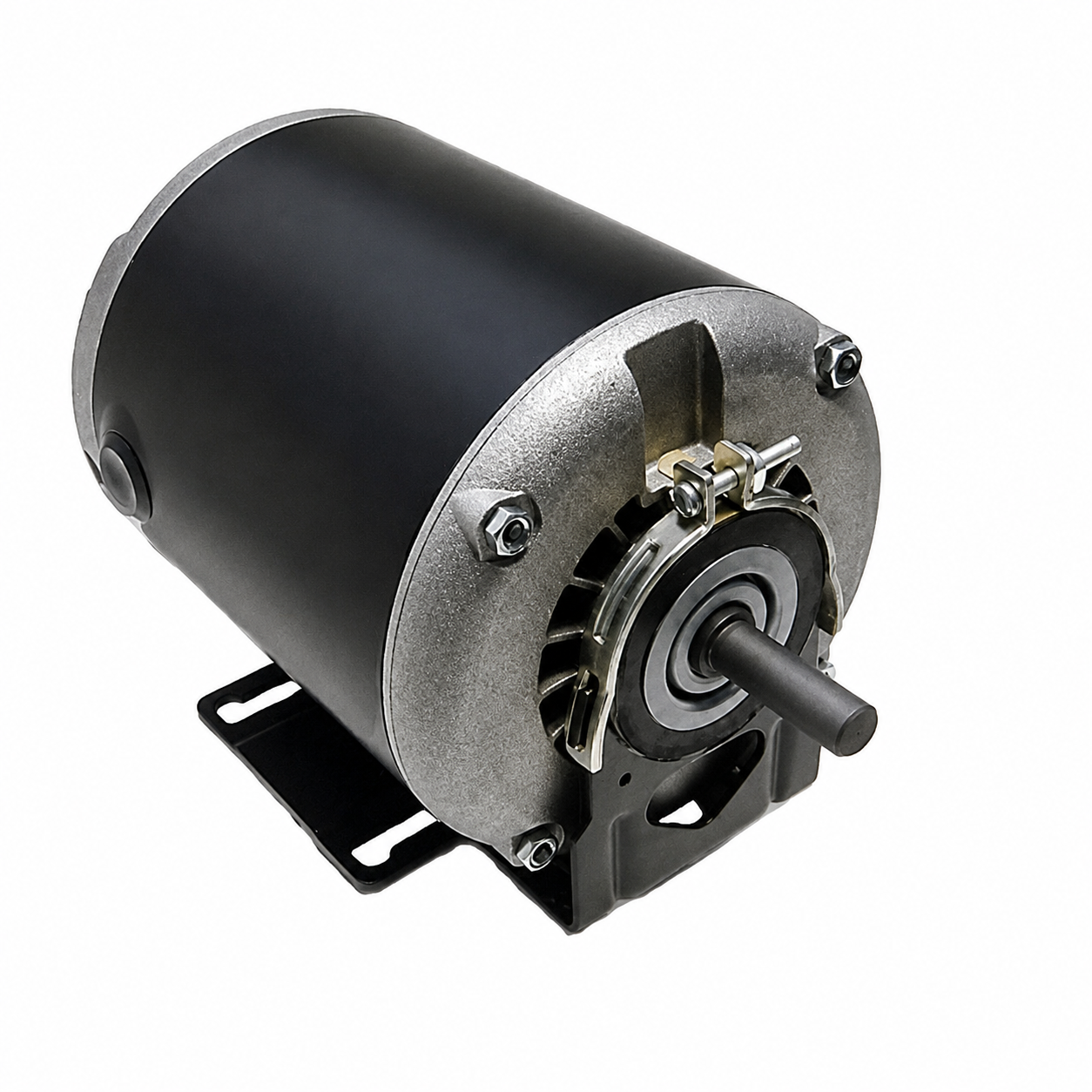

Emotortek Belted Fan Motors (HVAC/R) SS935D 1/2 HP - 115/208-230 V - 1725 RPM - Single phase

Emotortek Belted Fan Motors (HVAC/R) SS935D 1/2 HP - 115/208-230 V - 1725 RPM - Single phase

$273.00 CAD
$273.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS935D

Brand : Emotortek

HVAC : Belted Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1725

Voltage : 115/208-230 V

Phase : Single

Frame : 48

Mounting : Resilient Base

  • Horsepower :1/2
  • Voltage :115 / 208-230
  • Amps :7.60 / 3.70-3.80
  • RPM :1725
  • Frequency :60 Hz
  • Length :8-19/32”
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1/2” x 1-7/8”
  • Type :Split Phase
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48 / 56
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, 1/2” to 5/8” Sleeve & Key Included, Resilient Base
  • Weight (lbs.) :21
