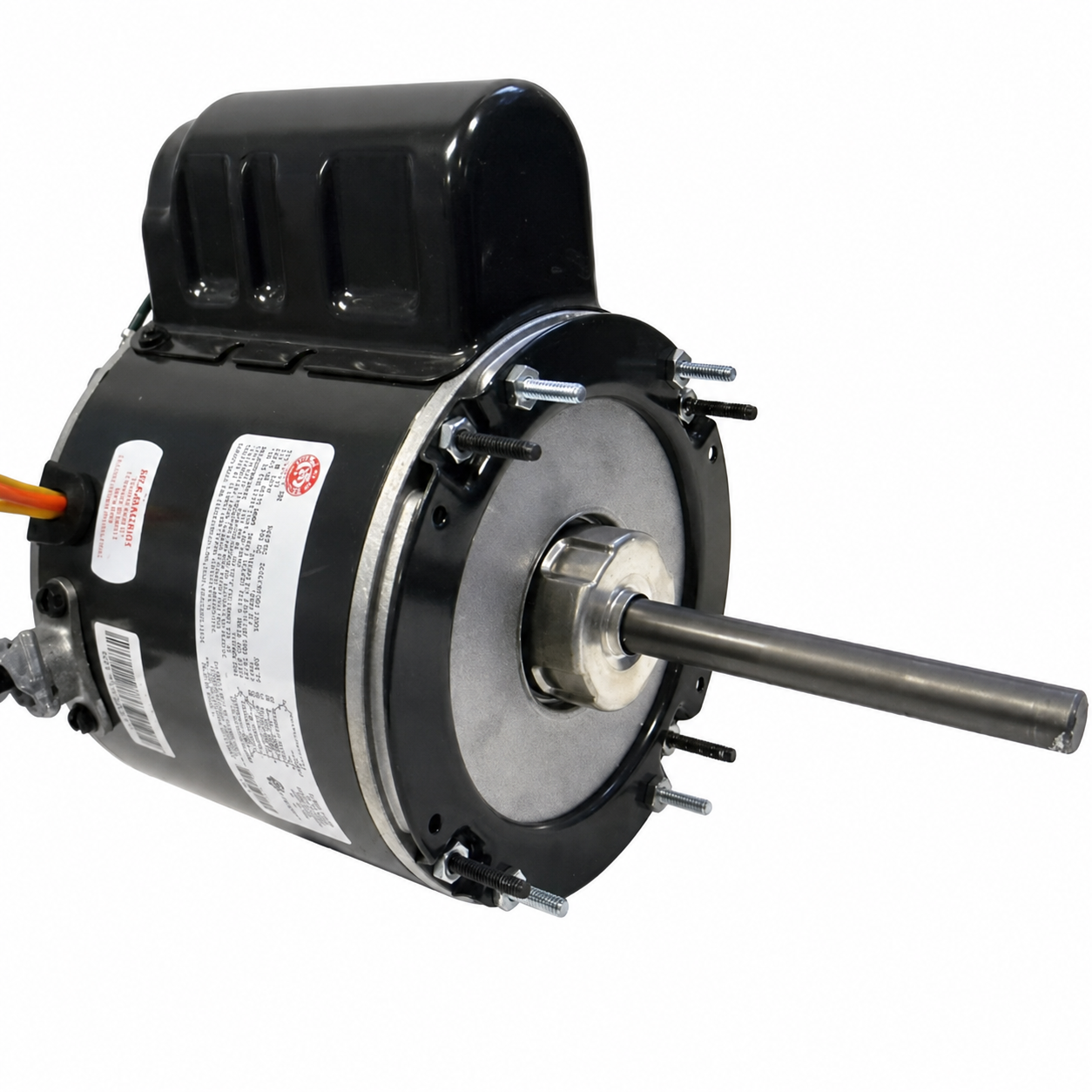

US Motors Unit Heater Motors (HVAC/R) 9036 - 1 HP - 115 V - 1075 RPM - Single phase

US Motors Unit Heater Motors (HVAC/R) 9036 - 1 HP - 115 V - 1075 RPM - Single phase

$349.00 CAD
$349.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 9036

Brand : US Motors

HVAC : Unit Heater Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Stud Mount

  • Horsepower : 1/3
  • Amps : 5.10
  • Frequency : 60 Hz
  • Length : 4.56"
  • "C" Dim. : 9.65"
  • Enclosure : Totally Enclosed, Air Over
  • Shaft Dim. : 1/2" x 4.50"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 4.0MFD-370V
  • Feature(s) : Class 'B' Insulation, Stud Mount
  • Weight (lbs.) : 15
  • Reference : 183, 3212, 3M357, 3M900M, 6633001002789, 70201, 7126-0333, 777980040783, D732, K9028, K9036, UE183, UH1036, UH1036V1, US1036, X304, X308
