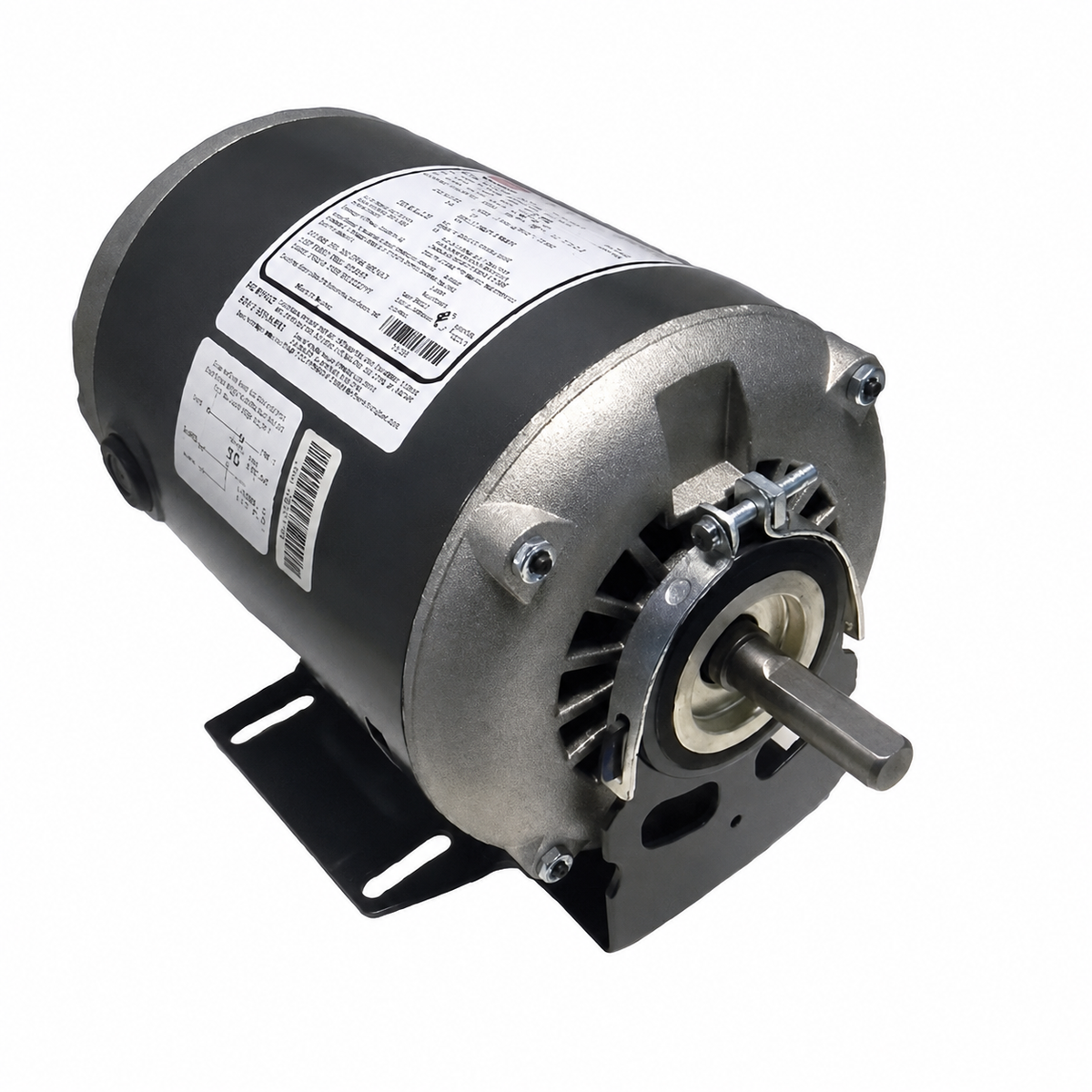

US Motors Fan & Blower Motors (HVAC/R) 841CV - 1/3 HP - 115 V - 1725 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 841CV - 1/3 HP - 115 V - 1725 RPM - Single phase

$183.00 CAD
$183.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 841CV

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/3 HP

RPM : 1725

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Resilient Base

  • Horsepower : 1/3
  • Amps : 6.40
  • Frequency : 60 Hz
  • Length : 7-15/16"
  • "C" Dim. : 9-29/32"
  • Enclosure : Open Drip Proof
  • Shaft Dim. : 1/2" x 1-5/8"
  • Type : Split Phase
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.35
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'B' Insulation, Threaded Conduit Hole, 5/8" Shaft Adapter Included, 48/56 Mounting Holes, Resilient Base
  • Weight (lbs.) : 18
  • Référence : U.S. Motors EM-841CV, Century RB2034, Marathon B305, GE HG711
