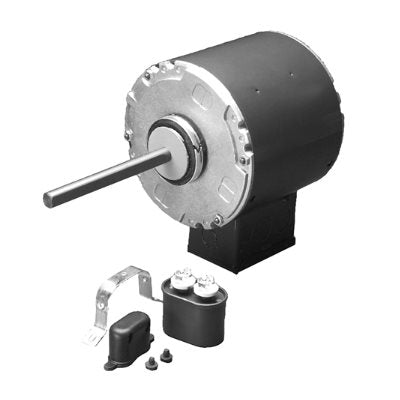

US Motors Condenser Fan Motors (HVAC/R) 8233 - 3/4 HP - 460 V - 1100 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 8233 - 3/4 HP - 460 V - 1100 RPM - Single phase

$469.00 CAD
$469.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 8233

Brand : US Motors

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1100

Voltage : 460 V

Phase : Single

Frame : 48Y

Mounting : Belly Band Mount

  • Horsepower : 3/4
  • Amps : 2.3
  • Frequency : 60 HZ
  • Enclosure : OPEN
  • Shaft Dim. : 1/2" X 4"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5.6"
  • Bearings : BALL
  • Rotation : CWSE
  • Protector : AUTO
  • Service Factor : 1
  • Ambient Temp. : 60°C
  • Capacitor Rating : 15 MFD @ 370 VOLT
  • Weight (lbs.) : 26
  • Référence :Emerson K55HXSME0680, K055NPB1104031B, K55HXNPB1104, A.O. Smith F48U09A27, Century Stock No. OAN1076, SA70126


View full details
