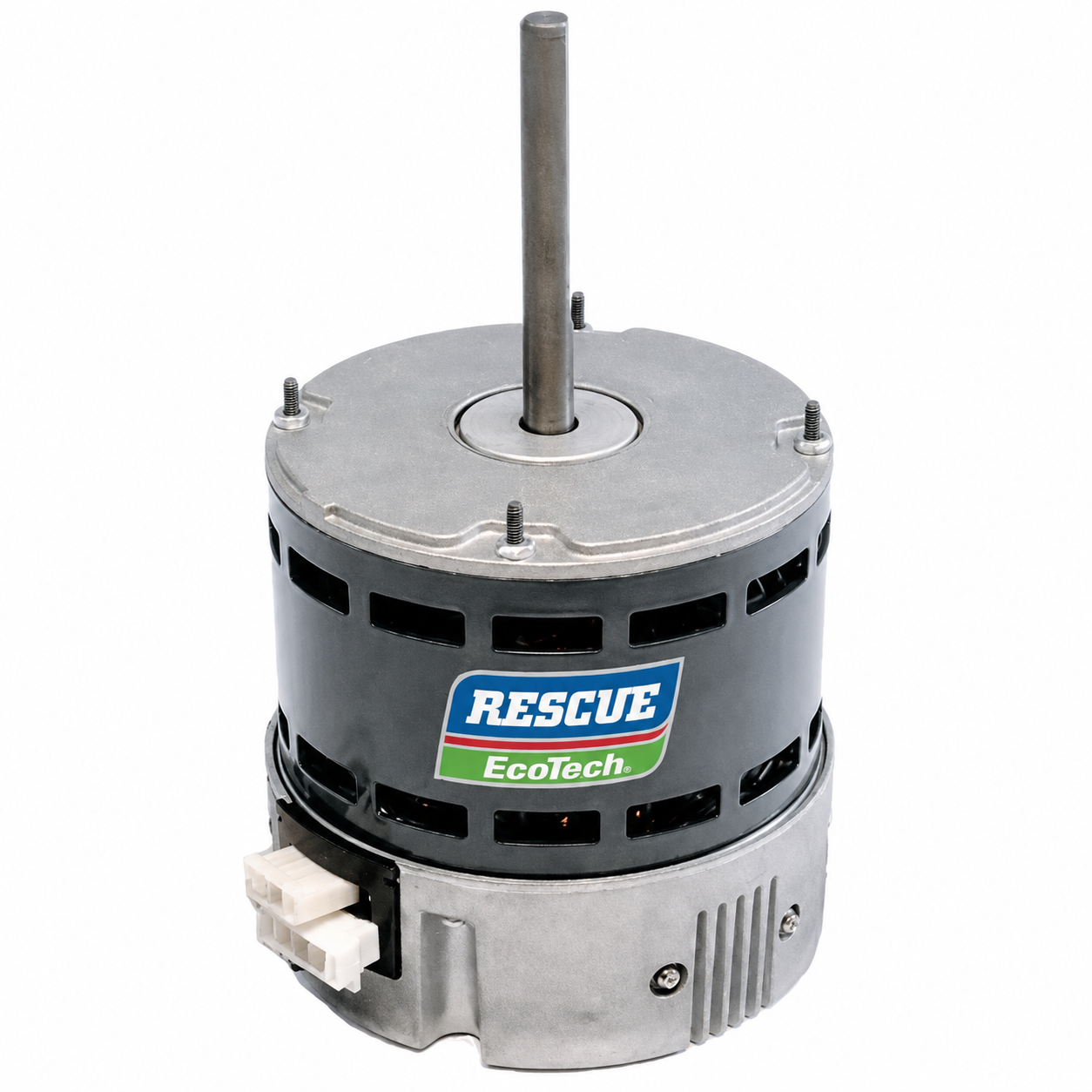

US Motors Fan & Blower Motors (HVAC/R) 5532ET - 1/2 HP - 115/230 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 5532ET - 1/2 HP - 115/230 V - 1075 RPM - Single phase

$485.00 CAD
$485.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5532ET

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 115/230 V

Phase : Single

Frame : 48Y

Mounting : Belly Band Mount

  • Amps : 6.20/3.90
  • Frequency : 60 Hz
  • "C" Dim. : 9-3/4”
  • Enclosure : Open
  • Shaft Dim. : 1/2” x 4-1/2”
  • Type : Electronically Commutated
  • Speeds : 5
  • Diameter : 5-5/8"
  • Efficiency : 82.0% (NEMA Premium)
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Easy Voltage Change from 230V to 115V, No Capacitor Required, Continuous Duty, Air Over, Class ‘B’ Insulation, 36” Leads, 6000V Surge Protection, 75% Watt Reduction in Circulation Mode
  • Weight (lbs.) : 13
