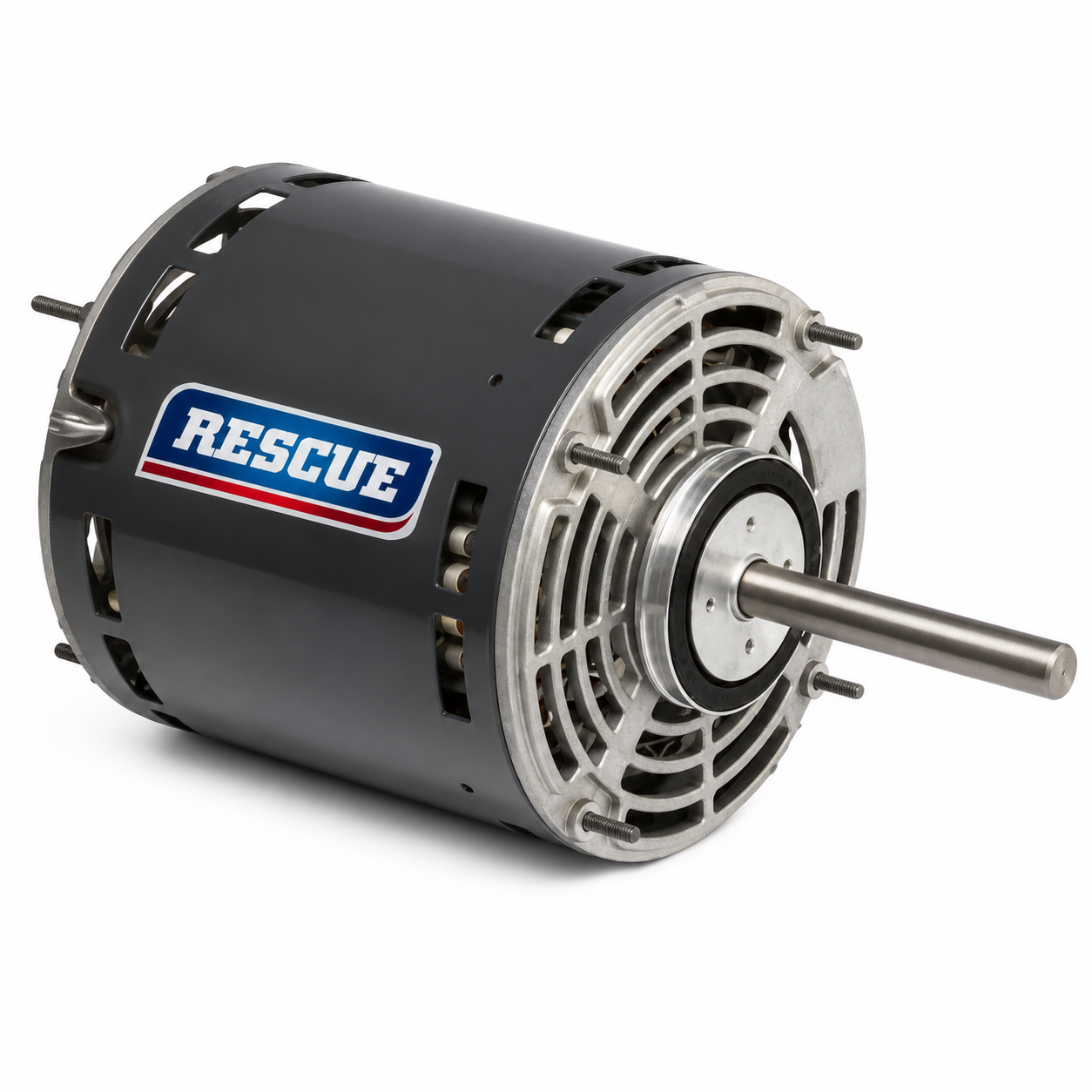

US Motors Fan & Blower Motors (HVAC/R) 5461 - 1/2 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 5461 - 1/2 HP - 208/230 V - 1075 RPM - Single phase

$335.00 CAD
$335.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5461

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Ring / Stud Mount

  • Horsepower : 1/2
  • Amps : 3.60
  • Frequency : 60 Hz
  • "C" Dim. : 9-13/16”
  • Enclosure : Open
  • Shaft Dim. : 1/2” x 5.00”
  • Type : Permanent Split Capacitor
  • Speeds : 4
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : 36” Leads, Class ‘B’ Insulation, Extended Mounting Studs, Continuous Duty, Air Over, Includes 2.5” Diameter Hub Rings & Side Shell Holes for Rheem Units
  • Weight (lbs.) : 15
