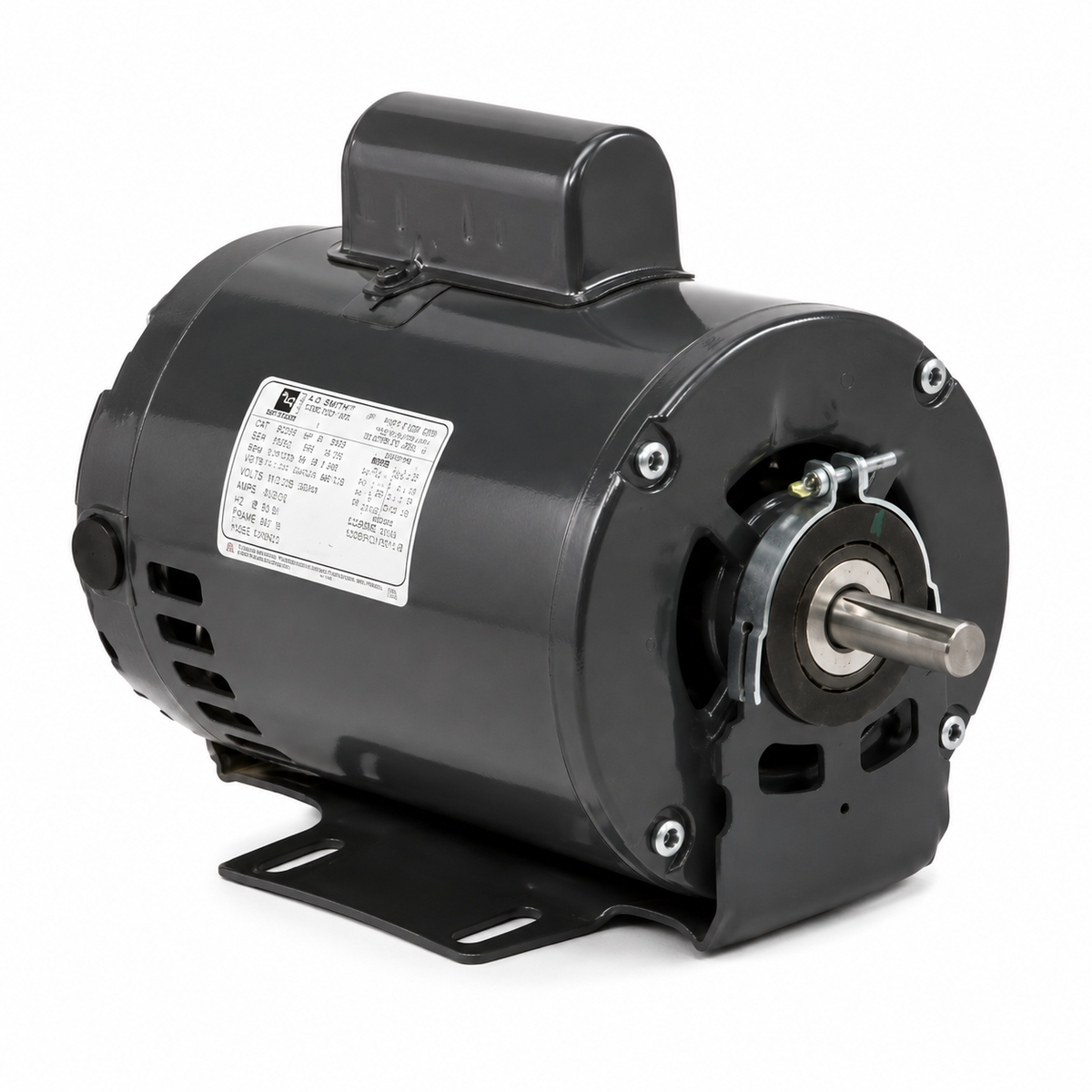

US Motors Fan & Blower Motors (HVAC/R) 1893 - 3/4 HP - 115/208-230 V - 1725 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1893 - 3/4 HP - 115/208-230 V - 1725 RPM - Single phase

$407.00 CAD
$407.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1893

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1725

Voltage : 115/208-230 V

Phase : Single

Frame : 56

Mounting : Resilient Base

  • Horsepower : 3/4
  • Amps : 11.40/5.70
  • Frequency : 60 Hz
  • "C" Dim. : 10-3/4”
  • Enclosure : Open Drip-Proof
  • Shaft Dim. : 5/8” x 1-7/8"
  • Type : Capacitor Start
  • Speeds : 1
  • Diameter : 6-1/2"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.25
  • Ambient Temp. : 40°C
  • Feature(s) : Resilient Base, Class 'A' Insulation, High Starting Torque
  • Weight (lbs.) : 27
  • Référence : Century C426V2, RB1074A, Emerson C63CXSCT3482, C63CXSCT3842, C63CXSEB3787, C63CXSOZ3842, C63CXTJE4651, C63YZAEN3200, R63NXBC103, General Electric C231, Leeson 100012.00, Marathon B319
