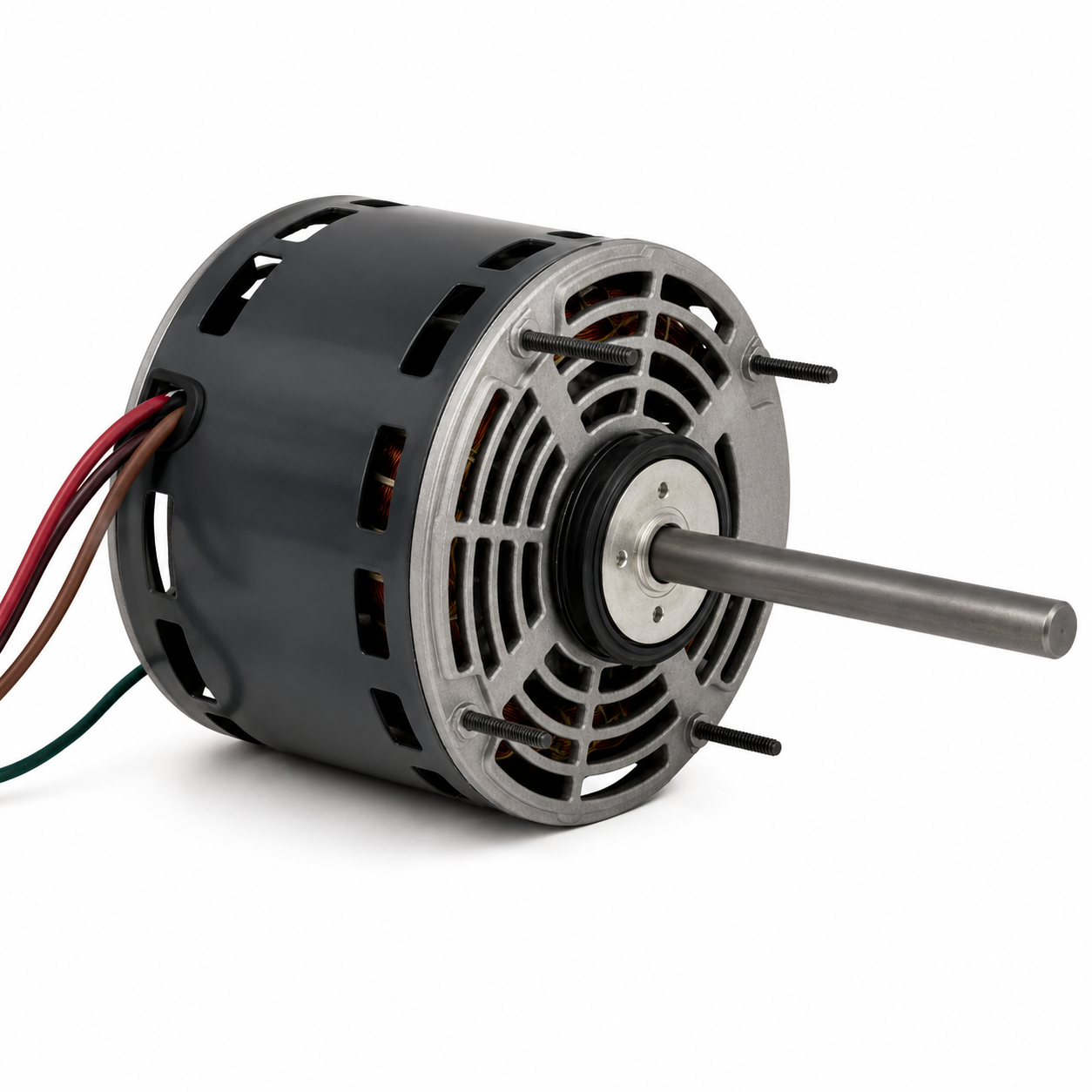

US Motors Fan & Blower Motors (HVAC/R) 1699 - 1 HP - 115 V - 1625 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1699 - 1 HP - 115 V - 1625 RPM - Single phase

$430.00 CAD
$430.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 1699

Brand : US Motors

HVAC : Fan & Blower Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1625

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Ring / Stud Mount

  • Horsepower : 1
  • Amps : 11.10
  • Frequency : 60 Hz
  • Length : 5-29/32"
  • "C" Dim. : 12-29/32"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 6.00"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-3/5"
  • Bearings : Self-Aligning Bearing
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'B' Insulation, 36" Leads, 2.25" Diameter Hubs with 2.5" Diameter Kit Included
  • Weight (lbs.) : 22
  • Reference : Emerson K055TMY9594012, K55WTMY9594
